Ferrari 296 GTB — [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM (diagram 0062)

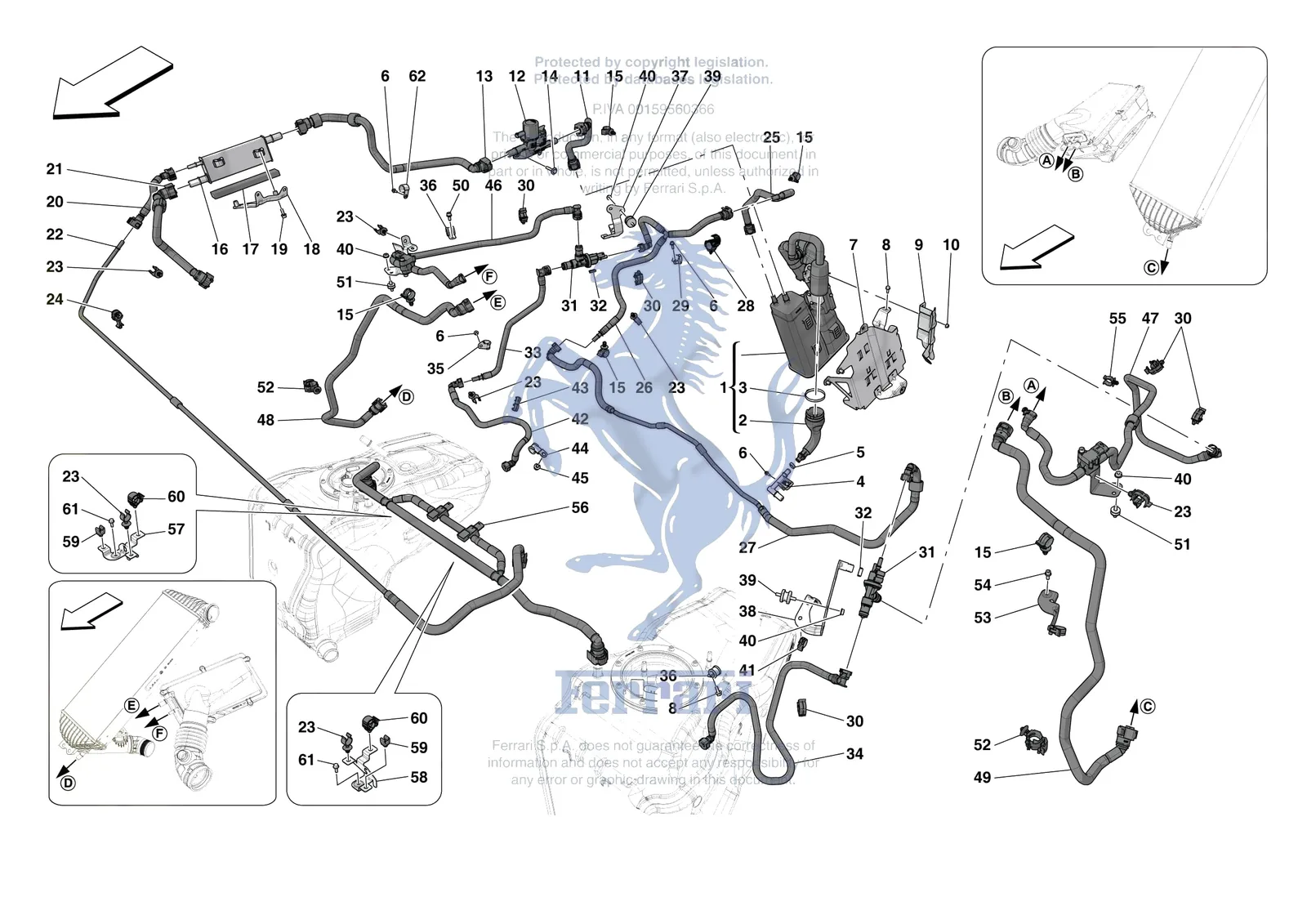

Exploded view of the [mechanical system] - d.13 - evaporative emissions control system on the Ferrari 296 GTB, with 72 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTB [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
14569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
10721370Ferrari Collar - 10721370$10.93Special order, ships in 7-14 days
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
1895452Ferrari Filtro Vapori Cpl - 895452$1,748.46Special order, ships in 7-14 days
2963069Ferrari Gaiter - 963069$90.95Special order, ships in 7-14 days
313434170Ferrari Collar - 13434170$56.79Special order, ships in 7-14 days
4886183Ferrari Obd Air Filter Inlet Pipe - 886183$56.52Special order, ships in 7-14 days
4983684Ferrari Obd Air Filter Inlet Pipe - 983684$213.88Special order, ships in 7-14 days
510716470Ferrari Collar - 10716470$2.59Available, ships in 3-6 days
6256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
7801071Ferrari Canister Mounting Bracket - 801071$295.03Special order, ships in 7-14 days
816286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
9965877Ferrari Riparo Calore Canister - 965877$58.98Special order, ships in 7-14 days
1014040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
11777371Ferrari Tubo Da Valvola Ftiv A Canis - 777371$189.31Special order, ships in 7-14 days
12782573Ferrari Valvola Ftiv - 782573SupersededOrder 859215 instead
12859215Ferrari Valvola Ftiv - 859215$726.68Special order, ships in 7-14 days
13777507Ferrari Tubo Da Separatore A Valvola - 777507$319.62Special order, ships in 7-14 days
14317169Ferrari Screw - 317169$2.82Available, ships in 3-6 days
15239094Ferrari Clip - 239094$2.59Special order, ships in 7-14 days
16778058Ferrari Separatore Vapori Alluminio - 778058$344.21Special order, ships in 7-14 days
17794233Ferrari Bush - 794233$14.72Special order, ships in 7-14 days
18768727Ferrari Vapour Separator Bracket - 768727$51.62Special order, ships in 7-14 days
19231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
20777512Ferrari Tubo Da Sez Sx A Sep Vapori - 777512$113.08Special order, ships in 7-14 days
21847197Ferrari Pipe From RH Tank To Vapour - 847197$228.64Special order, ships in 7-14 days
22770879Ferrari Tubo Da Serb. Sx A Sez. Sep. - 770879$189.31Special order, ships in 7-14 days
23887063Ferrari Clip - 887063$4.77Special order, ships in 7-14 days
24965532Ferrari Clip - 965532$1.23Special order, ships in 7-14 days
25777370Ferrari Tubo Da Canister A Sezioname - 777370$270.44Special order, ships in 7-14 days
26770888Ferrari Pipe From RH Valve Disconnec - 770888$344.21Special order, ships in 7-14 days
27778432Ferrari Pipe From LH Valve Disconnec - 778432$393.38Special order, ships in 7-14 days
28248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
29937614Ferrari Bracket With Sheath - 937614$8.34Special order, ships in 7-14 days
30247440Ferrari Clip - 247440$1.30Available, ships in 3-6 days
31751851Ferrari Valvola Di Lavaggio Tev 7 - 751851$162.25Special order, ships in 7-14 days
32977323Ferrari Clip - Screen Washer Valve - 977323$4.56Special order, ships in 7-14 days
33770889Ferrari Tubo Da Tev Dx A Sezionament - 770889$159.79Special order, ships in 7-14 days
34831532Ferrari Tubo Da Tev Sx A Motore - 831532$213.88Special order, ships in 7-14 days
35811419Ferrari Bracket With Sheath - 811419$31.93Special order, ships in 7-14 days
3610441590Ferrari P Clip Bracket With Sheath 16mm - 10441590$0.98Available, ships in 3-6 days
37792077Ferrari RH Valve Mounting Bracket - 792077$66.35Special order, ships in 7-14 days
38769135Ferrari LH Valve Mounting Bracket - 769135$66.35Special order, ships in 7-14 days
39195373Ferrari Rubber Support Pad - 195373$29.48Available, ships in 3-6 days
4014040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
41246723Ferrari Clip D. 20 - 246723$3.91Available, ships in 3-6 days
41222072Ferrari Clip D.18 - 222072$6.75Available, ships in 3-6 days
42785717Ferrari Pipe From RH Disconnector To - 785717$149.96Special order, ships in 7-14 days
43139966Ferrari Cable Retaining Clip - 139966$1.09Available, ships in 3-6 days
44938046Ferrari Bracket With Sheath - 938046$13.24Special order, ships in 7-14 days
45231627Ferrari Screw M8 x 16 - 231627$1.25Available, ships in 3-6 days
46910072Ferrari Tubo Da Tev Dx A Venturi Dx - 910072$516.33Special order, ships in 7-14 days
47808848Ferrari Pipe From Valve To LH?Ventu - 808848$565.49Special order, ships in 7-14 days
48801668Ferrari Tubo Ingresso Venturi Dx - 801668$295.03Special order, ships in 7-14 days
49808821Ferrari Tubo Ingresso Venturi Sx - 808821$295.03Special order, ships in 7-14 days
50231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
51225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
52267177Ferrari Clip D.20-21.5 - 267177$2.01Special order, ships in 7-14 days
53809273Ferrari LH Bracket To Venturi - 809273$39.31Special order, ships in 7-14 days
54797724Ferrari Screw - 797724$0.92Special order, ships in 7-14 days
55337907Ferrari Clip - 337907$0.90Special order, ships in 7-14 days
56904249Ferrari Tubo Di Bolla Cpl Coupe - 904249$1,008.09Special order, ships in 7-14 days
57904253Ferrari RH Equaliser Pipe Mounting B - 904253$51.62Special order, ships in 7-14 days
58904250Ferrari LH Equaliser Pipe Mounting B - 904250$51.62Special order, ships in 7-14 days
59199589Ferrari Clip - 199589$3.03Available, ships in 3-6 days
60259508Ferrari Clip 15.8mm-18.5mm - 259508$1.25Special order, ships in 7-14 days
6116281827Ferrari Screw 5x14 - 16281827$0.46Special order, ships in 7-14 days
6210441790Ferrari/Maserati P Clip Bracket - 10441790$1.80In stock

All 296 GTB diagrams
