Ferrari 296 GTB — [VEHICLE TRIM] - E.29.01 - DOORS - TRIM (diagram 0128)

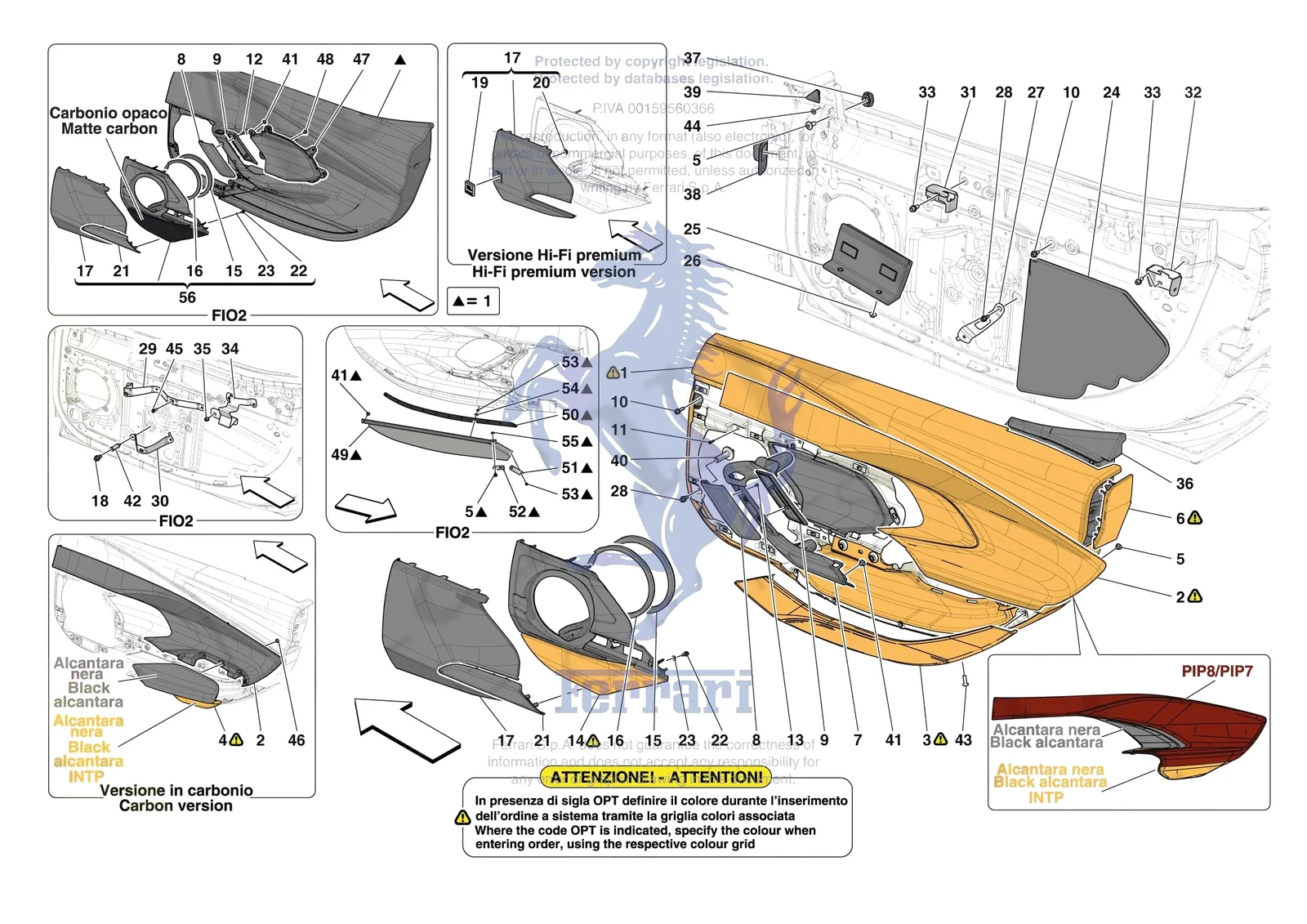

Exploded view of the [vehicle trim] - e.29.01 - doors - trim on the Ferrari 296 GTB, with 168 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 296 GTB [VEHICLE TRIM] - E.29.01 - DOORS - TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
170007651Ferrari COMPL. LH DOOR PANEL - 70007651Price on requestContact us for price and availability
1789350Ferrari Compl. LH Door Panel - 789350$12,294.05Special order, ships in 7-14 days
1910235Ferrari Compl. LH Door Panel - 910235$16,396.75Special order, ships in 7-14 days
1976423Ferrari Compl. LH Door Panel - 976423$12,294.05Special order, ships in 7-14 days
170007650Ferrari COMPL. RH DOOR PANEL - 70007650Price on requestContact us for price and availability
1789552Ferrari COMPL. RH DOOR PANEL - 789552Price on requestContact us for price and availability
1910265Ferrari Compl. RH Door Panel - 910265$16,396.75Special order, ships in 7-14 days
1976404Ferrari Compl. RH Door Panel - 976404$8,966.46Special order, ships in 7-14 days
2948676Ferrari Compl. LH Door Card - 948676$5,760.62Special order, ships in 7-14 days
2948677Ferrari Compl. LH Door Card - 948677$5,931.57Special order, ships in 7-14 days
2948723Ferrari Compl. RH Door Card - 948723$5,760.62Special order, ships in 7-14 days
2948724Ferrari Compl. RH Door Card - 948724$5,931.57Special order, ships in 7-14 days
270007653Ferrari LH DOOR CARD - 70007653Price on requestContact us for price and availability
2744122Ferrari LH Door Card - 744122SupersededOrder 948676 instead
2782886Ferrari LH Door Card - 782886$3,472.76Special order, ships in 7-14 days
2784977Ferrari LH Door Card - 784977$2,903.71Special order, ships in 7-14 days
2785000Ferrari LH Door Card - 785000$3,772.49Special order, ships in 7-14 days
2789454Ferrari LH DOOR CARD - 789454Price on requestContact us for price and availability
2890967Ferrari LH Door Card - 890967Price on requestContact us for price and availability
2912690Ferrari LH Door Card - 912690SupersededOrder 948676 instead
2912870Ferrari LH Door Card - 912870$6,048.65Special order, ships in 7-14 days
270007652Ferrari RH Door Card - 70007652$12,528.23Special order, ships in 7-14 days
2744129Ferrari RH Door Card - 744129SupersededOrder 948723 instead
2782898Ferrari RH Door Card - 782898$3,025.49Special order, ships in 7-14 days
2785010Ferrari RH Door Card - 785010$2,903.71Special order, ships in 7-14 days
2785015Ferrari RH Door Card - 785015$3,772.49Special order, ships in 7-14 days
2789488Ferrari RH DOOR CARD - 789488Price on requestContact us for price and availability
2890968Ferrari RH Door Card - 890968Price on requestContact us for price and availability
2912691Ferrari RH Door Card - 912691SupersededOrder 948723 instead
2912936Ferrari RH Door Card - 912936$6,048.65Special order, ships in 7-14 days
3976384Ferrari Compl. LH Panel Pocket - 976384$2,341.71Special order, ships in 7-14 days
3976347Ferrari Compl. RH Panel Pocket - 976347$3,688.20Special order, ships in 7-14 days
4831530Ferrari Compl. LH Armrest - 831530SupersededOrder 948679 instead
4832824Ferrari Compl. LH Armrest - 832824SupersededOrder 948680 instead
4948679Ferrari Compl. LH Armrest - 948679$1,893.26Special order, ships in 7-14 days
4948680Ferrari Compl. LH Armrest - 948680$1,893.26Special order, ships in 7-14 days
4831533Ferrari Compl. RH Armrest - 831533SupersededOrder 948730 instead
4832830Ferrari Compl. RH Armrest - 832830SupersededOrder 948729 instead
4948729Ferrari Compl. RH Armrest - 948729$1,893.26Special order, ships in 7-14 days
4948730Ferrari Compl. RH Armrest - 948730$1,721.15Special order, ships in 7-14 days
585692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
6947649Ferrari Compl. LH Lateral Cover - 947649$467.15Special order, ships in 7-14 days
6947648Ferrari Compl. RH Lateral Cover - 947648$467.15Special order, ships in 7-14 days
770007655Ferrari LH DOOR PULL HANDLE - 70007655Price on requestContact us for price and availability
7976354Ferrari LH Door Pull Handle - 976354$614.67Special order, ships in 7-14 days
770007654Ferrari RH DOOR PULL HANDLE - 70007654Price on requestContact us for price and availability
7976427Ferrari RH Door Pull Handle - 976427$614.67Special order, ships in 7-14 days
8976407Ferrari Compl. Grab Handle Front LH - 976407$1,106.43Special order, ships in 7-14 days
8820696Ferrari COMPL. GRAB HANDLE FRONT LH SHELL - 820696Price on requestContact us for price and availability
8828928Ferrari Compl. Grab Handle Front RH - 828928$1,106.43Special order, ships in 7-14 days
8976386Ferrari Compl. Grab Handle Front RH - 976386$1,106.43Special order, ships in 7-14 days
9976418Ferrari Compl. Grab Handle Rear LH S - 976418$1,106.43Special order, ships in 7-14 days
9820702Ferrari COMPL. GRAB HANDLE REAR LH SHELL - 820702Price on requestContact us for price and availability
9828962Ferrari Compl. Grab Handle Rear RH S - 828962$1,106.43Special order, ships in 7-14 days
9976405Ferrari Compl. Grab Handle Rear RH S - 976405$1,106.43Special order, ships in 7-14 days
10256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
1188257000Ferrari Centring Pin - 88257000$3.66Special order, ships in 7-14 days
12938036Ferrari Allen Head Bolt Countersunk M 4X16 - 938036$1.11Special order, ships in 7-14 days
1365752800Ferrari Screw M4 x 10 TBEI - 65752800$4.12Available, ships in 3-6 days
14976340Ferrari Compl. LH Woofer Grille Moun - 976340$1,106.43Special order, ships in 7-14 days
14789089Ferrari COMPL. LH WOOFER GRILLE MOUNT - 789089Price on requestContact us for price and availability
14789097Ferrari COMPL. LH WOOFER GRILLE MOUNT - 789097Price on requestContact us for price and availability
14976419Ferrari COMPL. LH WOOFER GRILLE MOUNT - 976419Price on requestContact us for price and availability
14976366Ferrari Compl. RH Woofer Grille Moun - 976366$1,106.43Special order, ships in 7-14 days
14976392Ferrari Compl. RH Woofer Grille Moun - 976392$2,571.20Special order, ships in 7-14 days
14789516Ferrari COMPL. RH WOOFER GRILLE MOUNT - 789516Price on requestContact us for price and availability
14789518Ferrari COMPL. RH WOOFER GRILLE MOUNT - 789518Price on requestContact us for price and availability
15910851Ferrari Guarnizione D 146 - 910851$15.49Special order, ships in 7-14 days
16976372Ferrari Gasket - 976372$24.02Special order, ships in 7-14 days
17782588Ferrari LH Woofer Grille - 782588$565.49Special order, ships in 7-14 days
17800539Ferrari LH Woofer Grille - 800539$713.04Special order, ships in 7-14 days
17820824Ferrari LH Woofer Grille - 820824$663.86Special order, ships in 7-14 days
17976341Ferrari LH Woofer Grille - 976341$614.67Special order, ships in 7-14 days
17800898Ferrari RH Woofer Grille - 800898$713.04Special order, ships in 7-14 days
17829276Ferrari RH Woofer Grille - 829276$565.49Special order, ships in 7-14 days
17829316Ferrari RH Woofer Grille - 829316$663.86Special order, ships in 7-14 days
17976375Ferrari RH Woofer Grille - 976375$614.67Special order, ships in 7-14 days
18231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
1983198200Ferrari JBL Logo - 83198200$44.24Available, ships in 3-6 days
2014227474Ferrari Motif Clips - 14227474$0.27Available, ships in 3-6 days
21976351Ferrari LH Button Panel - 976351$137.67Special order, ships in 7-14 days
21976429Ferrari LH Button Panel - 976429$113.08Special order, ships in 7-14 days
21982285Ferrari LH Button Panel - 982285$125.37Special order, ships in 7-14 days
21976378Ferrari RH Button Panel - 976378$108.16Special order, ships in 7-14 days
21982276Ferrari RH Button Panel - 982276$132.75Special order, ships in 7-14 days
21982280Ferrari RH Button Panel - 982280$149.96Special order, ships in 7-14 days
2214418131Ferrari Screw M3 x 10 TCEI - 14418131$0.38Available, ships in 3-6 days
2314496101Ferrari Washer - 14496101$0.12Available, ships in 3-6 days
24954634Ferrari LH Door Waterproof Membrane - 954634$95.87Special order, ships in 7-14 days
24979913Ferrari LH Door Waterproof Membrane - 979913$110.61Special order, ships in 7-14 days
24954635Ferrari RH Door Waterproof Membrane - 954635$95.87Special order, ships in 7-14 days
24980170Ferrari RH Door Waterproof Membrane - 980170$110.61Special order, ships in 7-14 days
25980205Ferrari RH Impact Absorber - 980205$63.90Special order, ships in 7-14 days
2614039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
27976414Ferrari LH Grab Handle Bracket - 976414$27.03Special order, ships in 7-14 days
27976373Ferrari RH Grab Handle Bracket - 976373$27.03Special order, ships in 7-14 days
28282393Ferrari Screw 6x16 - 282393$1.48Available, ships in 3-6 days
29841376Ferrari COMPL. LH DOOR PANEL UPPER BRACKET - 841376Price on requestContact us for price and availability
29844616Ferrari COMPL. RH DOOR PANEL UPPER BRACKET - 844616Price on requestContact us for price and availability
30841379Ferrari COMPL. LH DOOR PANEL LOWER BRACKET - 841379Price on requestContact us for price and availability
30844547Ferrari COMPL. RH DOOR PANEL LOWER BRACKET - 844547Price on requestContact us for price and availability
31977692Ferrari Compl. LH Panel Fastener Fro - 977692$46.69Special order, ships in 7-14 days
31977736Ferrari Compl. RH Panel Fastener Fro - 977736$46.69Special order, ships in 7-14 days
32977697Ferrari Compl. LH Panel Fastener Rea - 977697$56.52Special order, ships in 7-14 days
32977732Ferrari Compl. RH Panel Fastener Rea - 977732$56.52Special order, ships in 7-14 days
33248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
34749981Ferrari LH BRACKET - 749981Price on requestContact us for price and availability
34793583Ferrari RH BRACKET - 793583Price on requestContact us for price and availability
3512578111Ferrari Flanged Nyloc Nut - 12578111$0.50Available, ships in 3-6 days
36947656Ferrari Compl. LH Rear Fin - 947656$491.74Special order, ships in 7-14 days
36947655Ferrari Compl. RH Rear Fin - 947655$491.74Special order, ships in 7-14 days
37977731Ferrari Panel Fastener Bushing - 977731$6.31Special order, ships in 7-14 days
38859254Ferrari Door Safety Hook Cap - 859254$19.40Special order, ships in 7-14 days
38878881Ferrari Tappo Gancio Porta - 878881$34.40Special order, ships in 7-14 days
39789250Ferrari L.H. Inner Moulding - 789250$16.45Special order, ships in 7-14 days
39789251Ferrari R.H. Inner Moulding - 789251$16.45Special order, ships in 7-14 days
40826442Ferrari Door Spacer - 826442$37.13Special order, ships in 7-14 days
4185692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
42841478Ferrari LOWER BRACKET SPACER - 841478$15.05Special order, ships in 7-14 days
4314441434Ferrari Screw M6 x 20 TSEI - 14441434$3.91Available, ships in 3-6 days
4489144000Ferrari Washer - 89144000$0.79Available, ships in 3-6 days
45904294Ferrari Screw M6 x 18 Inox - 904294$1.23Special order, ships in 7-14 days
4685691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
47808249Ferrari Compl. LH Alcantara Cover Pa - 808249$762.20Special order, ships in 7-14 days
47828995Ferrari Compl. RH Alcantara Cover Pa - 828995$762.20Special order, ships in 7-14 days
4885833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
4970007674Ferrari LH DOOR PANEL MESH - 70007674Price on requestContact us for price and availability
49808230Ferrari LH DOOR PANEL MESH - 808230Price on requestContact us for price and availability
4970007673Ferrari RH DOOR PANEL MESH - 70007673Price on requestContact us for price and availability
49828898Ferrari RH DOOR PANEL MESH - 828898Price on requestContact us for price and availability
50826760Ferrari OUTER FLANGE - 826760Price on requestContact us for price and availability
51826761Ferrari INNER FLANGE - 826761Price on requestContact us for price and availability
52820692Ferrari BRACKET - 820692Price on requestContact us for price and availability
5310794011Ferrari Nut M4 x 0.7mm - 10794011$0.06Available, ships in 3-6 days
5414446924Ferrari Washer - 14446924$0.54Available, ships in 3-6 days
5514059114Ferrari Nut M5 - 14059114$0.27Available, ships in 3-6 days
5670007812Ferrari COMPL. LH WOOFER GRILLE - 70007812Price on requestContact us for price and availability
5670007813Ferrari COMPL. LH WOOFER GRILLE - 70007813Price on requestContact us for price and availability
5670007814Ferrari COMPL. LH WOOFER GRILLE - 70007814Price on requestContact us for price and availability
5670007815Ferrari COMPL. LH WOOFER GRILLE - 70007815Price on requestContact us for price and availability
5670007818Ferrari COMPL. LH WOOFER GRILLE - 70007818Price on requestContact us for price and availability
5670007819Ferrari COMPL. LH WOOFER GRILLE - 70007819Price on requestContact us for price and availability
56901853Ferrari Compl. LH Woofer Grille - 901853$3,798.25Special order, ships in 7-14 days
56901971Ferrari Compl. LH Woofer Grille - 901971$3,905.98Special order, ships in 7-14 days
56902024Ferrari Compl. LH Woofer Grille - 902024$4,730.26Special order, ships in 7-14 days
56902032Ferrari Compl. LH Woofer Grille - 902032$4,287.67Special order, ships in 7-14 days
56902051Ferrari Compl. LH Woofer Grille - 902051$4,837.98Special order, ships in 7-14 days
56902053Ferrari Compl. LH Woofer Grille - 902053$4,179.96Special order, ships in 7-14 days
5670007816Ferrari COMPL. RH WOOFER GRILLE - 70007816Price on requestContact us for price and availability
5670007817Ferrari COMPL. RH WOOFER GRILLE - 70007817Price on requestContact us for price and availability
5670007820Ferrari COMPL. RH WOOFER GRILLE - 70007820Price on requestContact us for price and availability
5670007821Ferrari COMPL. RH WOOFER GRILLE - 70007821Price on requestContact us for price and availability
5670007822Ferrari COMPL. RH WOOFER GRILLE - 70007822Price on requestContact us for price and availability
5670007823Ferrari COMPL. RH WOOFER GRILLE - 70007823Price on requestContact us for price and availability
56901988Ferrari Compl. RH Woofer Grille - 901988$4,744.32Special order, ships in 7-14 days
56902001Ferrari Compl. RH Woofer Grille - 902001$4,854.37Special order, ships in 7-14 days
56902018Ferrari Compl. RH Woofer Grille - 902018$4,318.12Special order, ships in 7-14 days
56902020Ferrari Compl. RH Woofer Grille - 902020$4,210.41Special order, ships in 7-14 days
56902055Ferrari Compl. RH Woofer Grille - 902055$3,887.24Special order, ships in 7-14 days
56902056Ferrari Compl. RH Woofer Grille - 902056$3,779.52Special order, ships in 7-14 days

All 296 GTB diagrams

Loading…
header Logo 3 (1)

120 Kremer Ave. Eatontown, NJ 07724
Corner of Highway 35 and Kremer Ave.
(Mile North of the Mall)

800-631-5589
info@awitalian.com

Mon – Fri 9-6
Sat, Sun closed

NOTE ABOUT IN/OUT OF STOCK

We always attempt to indicate when a part is out of stock. In the event that you order a part and we are currently out of stock, you will be notified within 24 business hours.

Please read our Shipping & Returns Policy for more information

By the same token, we have many parts or can get many parts that may not be found on our site. Please email or call with inquiries.

JOIN OUR MAILING LIST

Receive promotions directly in your email

WE ACCEPT
credit cards 03
TERMS, CONDITIONS, AND PRIVACY

Terms and Conditions & Privacy Policy AW Italian Auto Parts is a division of AW Imported Auto Parts and Service

© 1965 - 2026 • AW ITALIAN is an American Auto Part Dealer for Luxury Italian Vehicles • All Rights Reserved

Go to Top
