Ferrari 296 GTS — [ENGINE] - B.21 - VENTS (diagram 0026)

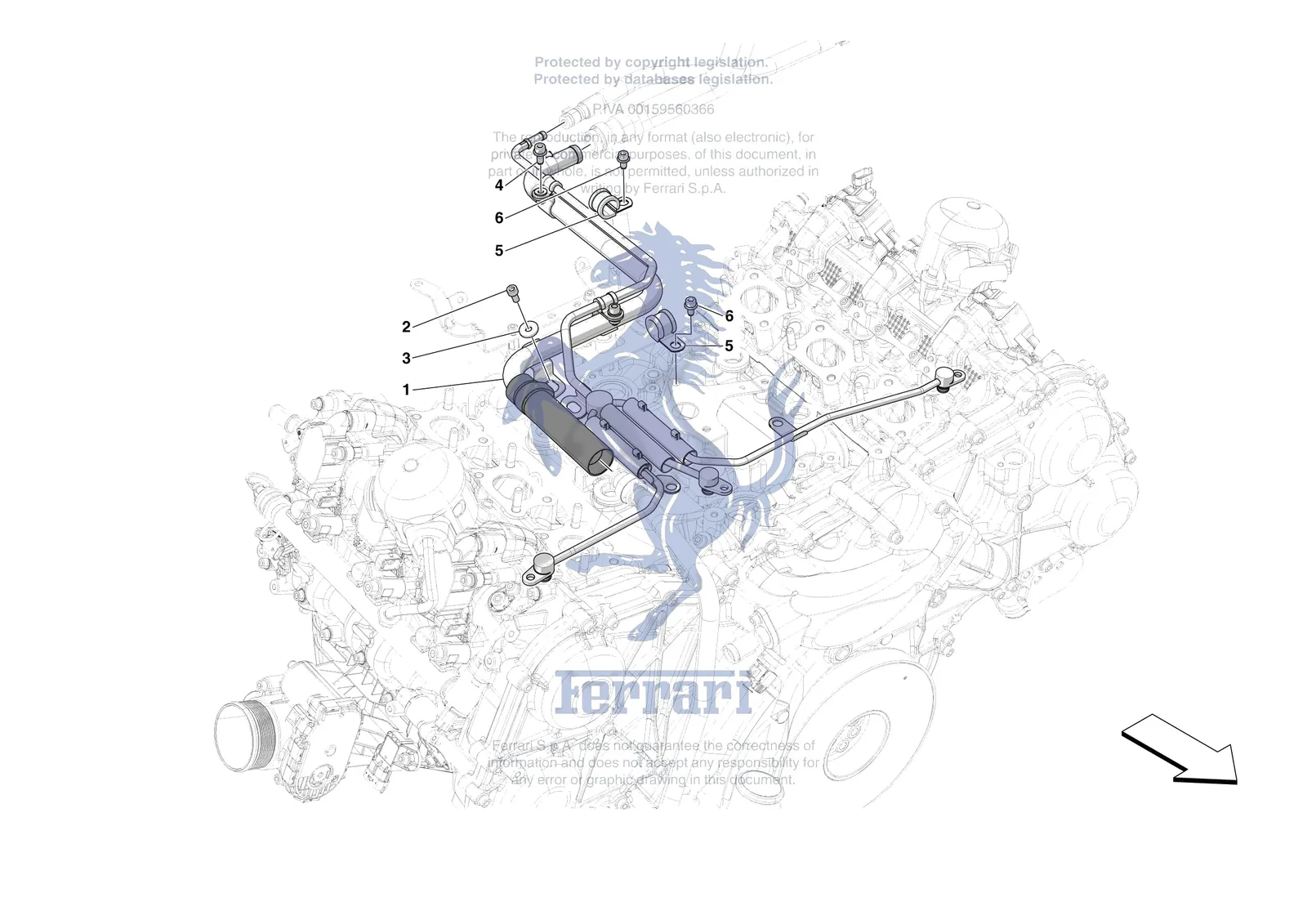

Exploded view of the [engine] - b.21 - vents on the Ferrari 296 GTS, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [ENGINE] - B.21 - VENTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0026.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 777480 | Ferrari Compl. Header Tank Breather - 777480 | $1,253.96 | Special order, ships in 7-14 days |
| 2 | 14305120 | Ferrari Screw - 14305120 | $0.33 | Special order, ships in 7-14 days |
| 3 | 10523401 | Ferrari Washer - 10523401 | $0.84 | Available, ships in 3-6 days |
| 4 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 4 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 5 | 10450590 | Ferrari Bracket 18mm - 10450590 | $3.47 | Available, ships in 3-6 days |
| 6 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
