Ferrari 296 GTS — [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES (diagram 0028)

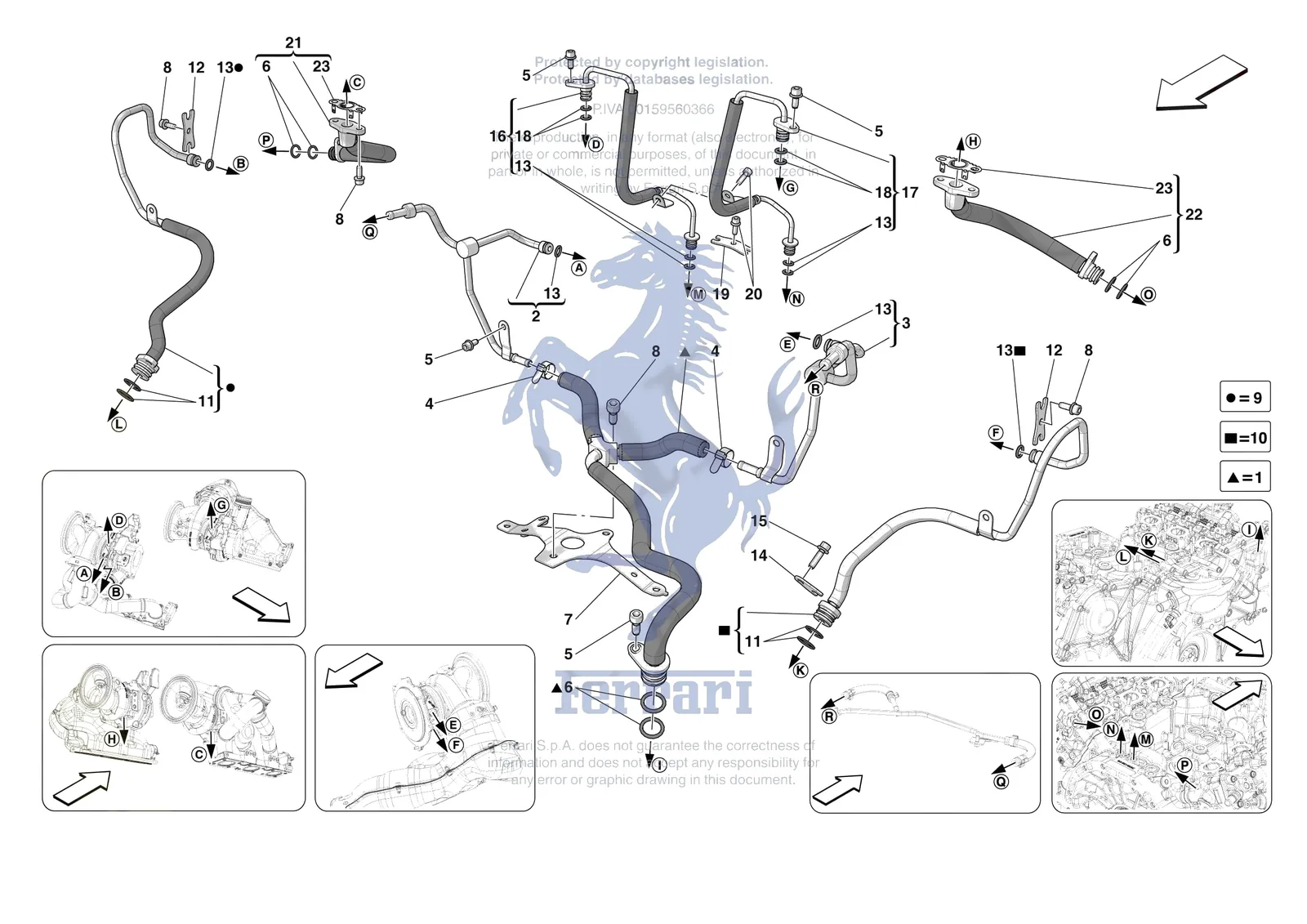

Exploded view of the [engine] - b.23 - forced induction system pipes on the Ferrari 296 GTS, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0028.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 916504 | Ferrari Oil Delivery Pipe To RH Turb - 916504 | Price on request | Contact us for price and availability | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 55020533 | Ferrari Water Return Pipe - 55020533 | $688.45 | Special order, ships in 7-14 days |
| 1 | 769578 | Ferrari Water Return Pipe - 769578 | Superseded | Order 55020533 instead |
| 2 | 55020534 | Ferrari Water Return Pipe From RH Tu - 55020534 | $295.03 | Special order, ships in 7-14 days |
| 2 | 894837 | Ferrari Water Return Pipe From RH Tu - 894837 | Superseded | Order 55020534 instead |
| 3 | 55020535 | Ferrari Water Return Pipe From LH Tu - 55020535 | $295.03 | Special order, ships in 7-14 days |
| 3 | 783058 | Ferrari Water Return Pipe From LH Tu - 783058 | Superseded | Order 55020535 instead |
| 4 | 262107 | Ferrari Screw Collar - 262107 | $3.26 | Special order, ships in 7-14 days |
| 5 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 5 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 6 | 287722 | Ferrari O-Ring 15.08 x 2.62 - 287722 | $9.81 | Available, ships in 3-6 days |
| 7 | 825114 | Ferrari Pipe Mounting Bracket - 825114 | $95.87 | Special order, ships in 7-14 days |
| 8 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 9 | 55020526 | Ferrari Water Delivery Pipe To RH Turbo - 55020526 | $417.97 | Special order, ships in 7-14 days |
| 9 | 894855 | Ferrari Water Delivery Pipe To RH Turbo - 894855 | Superseded | Order 55020526 instead |
| 10 | 55020527 | Ferrari Water Delivery Pipe To LH Tu - 55020527 | $417.97 | Special order, ships in 7-14 days |
| 10 | 826626 | Ferrari Water Delivery Pipe To LH Tu - 826626 | $368.79 | Special order, ships in 7-14 days |
| 11 | 14453481 | Ferrari O-Ring Gasket - 14453481 | Superseded | Order 254644 instead |
| 11 | 254644 | Ferrari O-Ring Gasket - 254644 | $0.77 | Available, ships in 3-6 days |
| 12 | 283437 | Ferrari Pipe Retainer Fork - 283437 | $6.11 | Special order, ships in 7-14 days |
| 13 | 127816 | Ferrari Sealing Ring - 127816 | $6.00 | In stock |
| 14 | 986086 | Ferrari Fork - 986086 | $10.25 | Special order, ships in 7-14 days |
| 15 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 16 | 55020528 | Ferrari Oil Delivery Pipe To RH Turb - 55020528 | $762.20 | Special order, ships in 7-14 days |
| 16 | 812191 | Ferrari Oil Delivery Pipe To RH Turb - 812191 | $688.45 | Special order, ships in 7-14 days |
| 17 | 55020530 | Ferrari Oil Delivery Pipe To LH Turb - 55020530 | $762.20 | Special order, ships in 7-14 days |
| 17 | 812206 | Ferrari Oil Delivery Pipe To LH Turb - 812206 | Superseded | Order 55020530 instead |
| 18 | 191269 | Ferrari Gasket - 191269 | $10.46 | Special order, ships in 7-14 days |
| 19 | 940503 | Ferrari Oil Pipe Fork - 940503 | $17.67 | Special order, ships in 7-14 days |
| 20 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 21 | 55020531 | Ferrari Oil Return Pipe From RH Turb - 55020531 | $467.15 | Special order, ships in 7-14 days |
| 21 | 908136 | Ferrari Oil Return Pipe From RH Turb - 908136 | Superseded | Order 55020531 instead |
| 22 | 55020532 | Ferrari Oil Return Pipe From LH Turb - 55020532 | $467.15 | Special order, ships in 7-14 days |
| 22 | 908137 | Ferrari Oil Return Pipe From LH Turb - 908137 | Superseded | Order 55020532 instead |
| 23 | 308203 | Ferrari Gasket - 308203 | $39.31 | Available, ships in 3-6 days |
