Ferrari 296 GTS — [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES (diagram 0030)

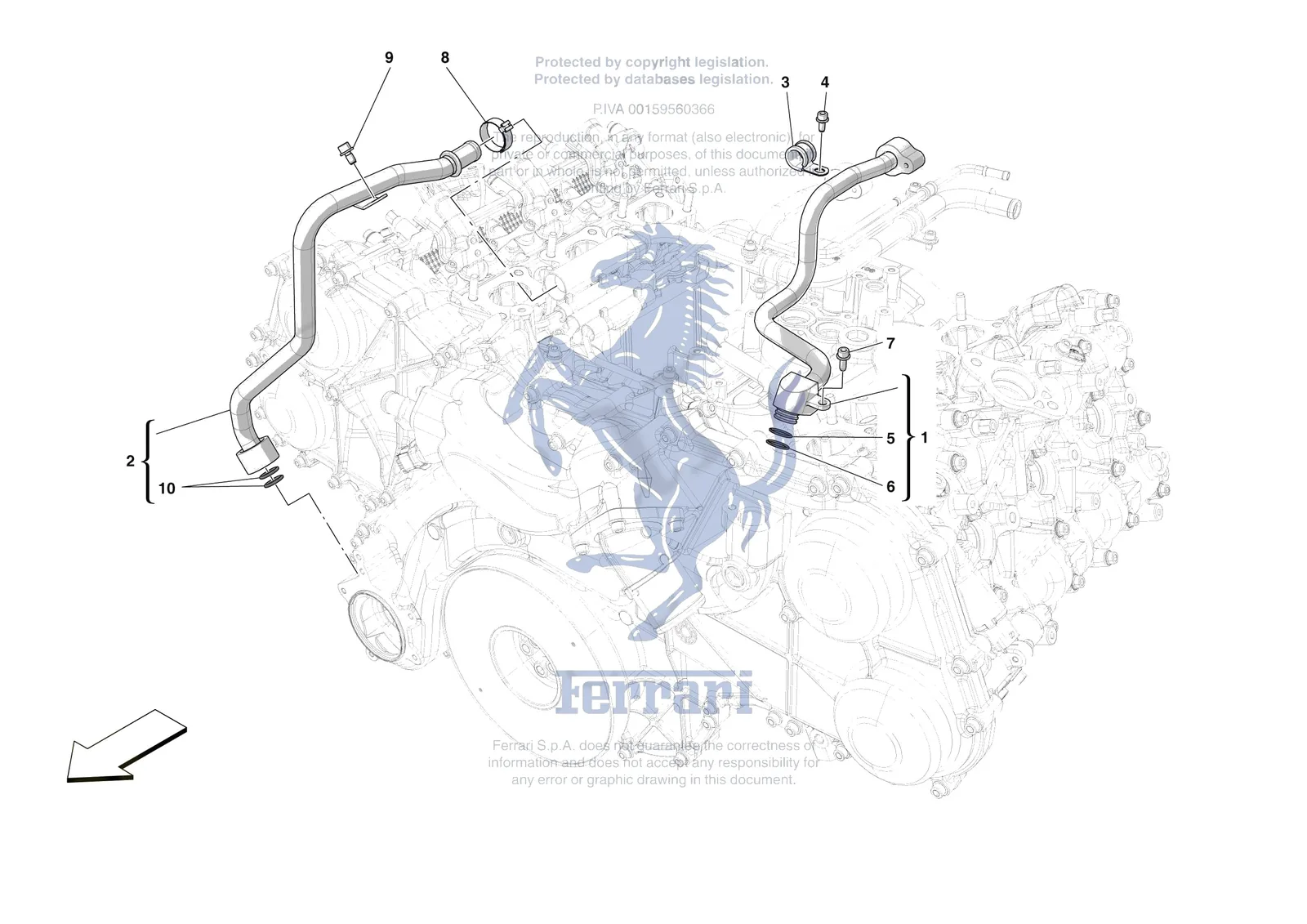

Exploded view of the [engine] - b.25 - engine cooling system pipes on the Ferrari 296 GTS, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0030.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 262112 | Ferrari Collar - 262112 | Superseded | Order 262111 instead | |
| 10860370 | Ferrari Screw Collar - 10860370 | $3.26 | Special order, ships in 7-14 days | |
| 13127770 | Ferrari Screw Collar - 13127770 | $2.82 | Special order, ships in 7-14 days | |
| 268210 | Ferrari Screw Collar - 268210 | $6.32 | Special order, ships in 7-14 days | |
| 1 | 777469 | Ferrari Compl. Gearbox Heat Exchange - 777469 | $295.03 | Special order, ships in 7-14 days |
| 2 | 781730 | Ferrari Header Tank Filler Pipe - 781730 | $236.02 | Special order, ships in 7-14 days |
| 2 | 952648 | Ferrari Header Tank Filler Pipe - 952648 | $228.64 | Special order, ships in 7-14 days |
| 3 | 10450590 | Ferrari Bracket 18mm - 10450590 | $3.47 | Available, ships in 3-6 days |
| 4 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 5 | 318989 | Ferrari O-Ring - 318989 | $10.25 | Special order, ships in 7-14 days |
| 6 | 318329 | Ferrari O-Ring - 318329 | $74.29 | Special order, ships in 7-14 days |
| 7 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 8 | 262111 | Ferrari Screw Collar - 262111 | $3.03 | Special order, ships in 7-14 days |
| 9 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 10 | 860669 | Ferrari O-Ring - 860669 | $6.54 | Special order, ships in 7-14 days |
