Ferrari 296 GTS — [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM (diagram 0062)

Exploded view of the [mechanical system] - d.13 - evaporative emissions control system on the Ferrari 296 GTS, with 75 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

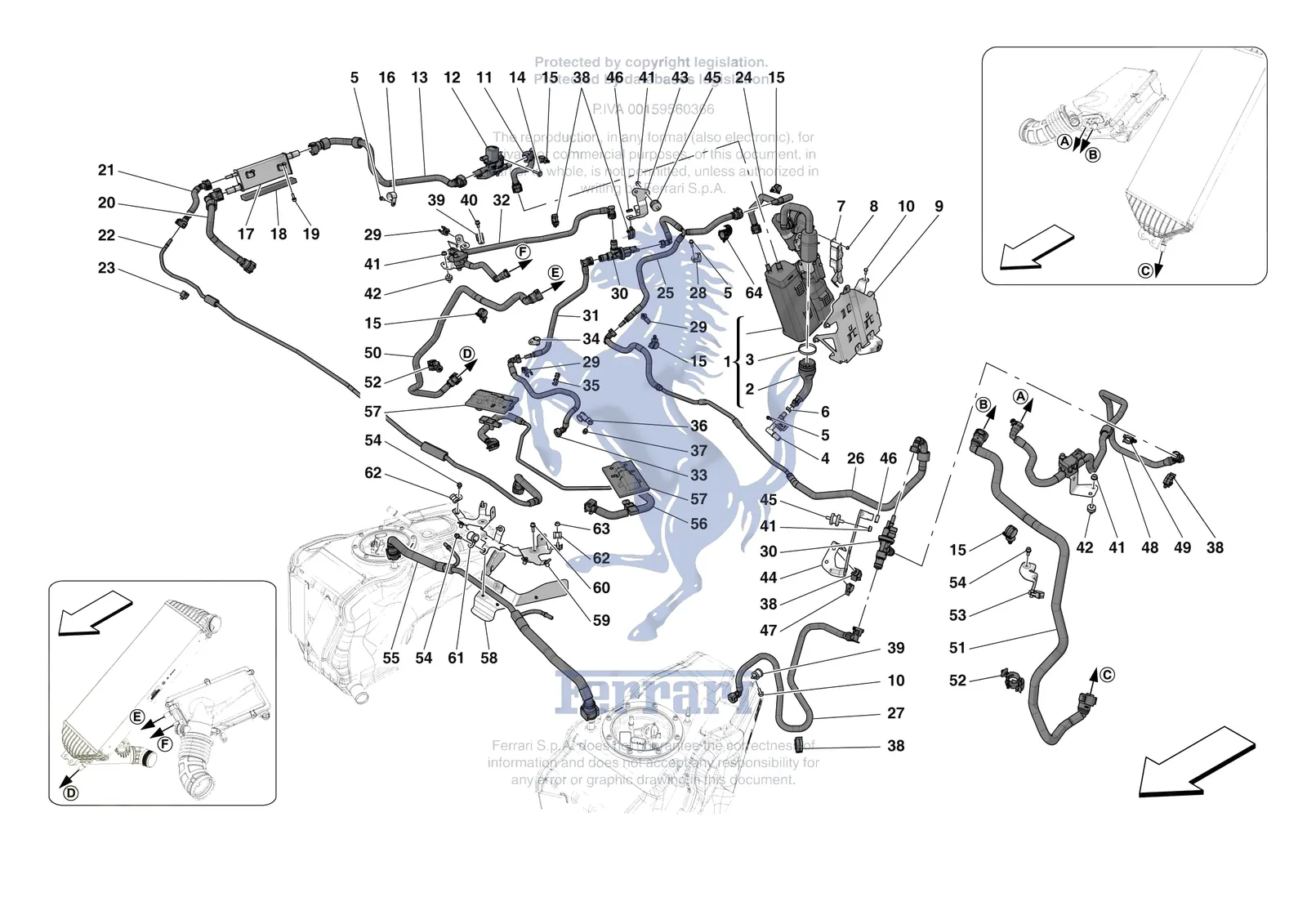

Ferrari 296 GTS [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
14569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
10721370Ferrari Collar - 10721370$10.93Special order, ships in 7-14 days
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
782573Ferrari Valvola Ftiv - 782573SupersededOrder 859215 instead
1895452Ferrari Filtro Vapori Cpl - 895452$1,748.46Special order, ships in 7-14 days
2963069Ferrari Gaiter - 963069$90.95Special order, ships in 7-14 days
313434170Ferrari Collar - 13434170$56.79Special order, ships in 7-14 days
4886183Ferrari Obd Air Filter Inlet Pipe - 886183$56.52Special order, ships in 7-14 days
4983684Ferrari Obd Air Filter Inlet Pipe - 983684$213.88Special order, ships in 7-14 days
5256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
610716470Ferrari Collar - 10716470$2.59Available, ships in 3-6 days
7965877Ferrari Riparo Calore Canister - 965877$58.98Special order, ships in 7-14 days
814040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
9801071Ferrari Canister Mounting Bracket - 801071$295.03Special order, ships in 7-14 days
1016286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
11777371Ferrari Tubo Da Valvola Ftiv A Canis - 777371$189.31Special order, ships in 7-14 days
12859215Ferrari Valvola Ftiv - 859215$726.68Special order, ships in 7-14 days
13777507Ferrari Tubo Da Separatore A Valvola - 777507$319.62Special order, ships in 7-14 days
14317169Ferrari Screw - 317169$2.82Available, ships in 3-6 days
15239094Ferrari Clip - 239094$2.59Special order, ships in 7-14 days
1610441790Ferrari/Maserati P Clip Bracket - 10441790$1.80In stock
17778058Ferrari Separatore Vapori Alluminio - 778058$344.21Special order, ships in 7-14 days
18794233Ferrari Bush - 794233$14.72Special order, ships in 7-14 days
19231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
20847197Ferrari Pipe From RH Tank To Vapour - 847197$228.64Special order, ships in 7-14 days
21777512Ferrari Tubo Da Sez Sx A Sep Vapori - 777512$113.08Special order, ships in 7-14 days
22863932Ferrari Pipe From LH Tank - 863932$236.02Special order, ships in 7-14 days
23199589Ferrari Clip - 199589$3.03Available, ships in 3-6 days
24777370Ferrari Tubo Da Canister A Sezioname - 777370$270.44Special order, ships in 7-14 days
25770888Ferrari Pipe From RH Valve Disconnec - 770888$344.21Special order, ships in 7-14 days
26778432Ferrari Pipe From LH Valve Disconnec - 778432$393.38Special order, ships in 7-14 days
27831532Ferrari Tubo Da Tev Sx A Motore - 831532$213.88Special order, ships in 7-14 days
28937614Ferrari Bracket With Sheath - 937614$8.34Special order, ships in 7-14 days
29887063Ferrari Clip - 887063$4.77Special order, ships in 7-14 days
30751851Ferrari Valvola Di Lavaggio Tev 7 - 751851$162.25Special order, ships in 7-14 days
31770889Ferrari Tubo Da Tev Dx A Sezionament - 770889$159.79Special order, ships in 7-14 days
32910072Ferrari Tubo Da Tev Dx A Venturi Dx - 910072$516.33Special order, ships in 7-14 days
33785717Ferrari Pipe From RH Disconnector To - 785717$149.96Special order, ships in 7-14 days
34811419Ferrari Bracket With Sheath - 811419$31.93Special order, ships in 7-14 days
35139966Ferrari Cable Retaining Clip - 139966$1.09Available, ships in 3-6 days
36938046Ferrari Bracket With Sheath - 938046$13.24Special order, ships in 7-14 days
37231627Ferrari Screw M8 x 16 - 231627$1.25Available, ships in 3-6 days
38247440Ferrari Clip - 247440$1.30Available, ships in 3-6 days
3910441590Ferrari P Clip Bracket With Sheath 16mm - 10441590$0.98Available, ships in 3-6 days
40231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
4114040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
42225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
43792077Ferrari RH Valve Mounting Bracket - 792077$66.35Special order, ships in 7-14 days
44769135Ferrari LH Valve Mounting Bracket - 769135$66.35Special order, ships in 7-14 days
45195373Ferrari Rubber Support Pad - 195373$29.48Available, ships in 3-6 days
46977323Ferrari Clip - Screen Washer Valve - 977323$4.56Special order, ships in 7-14 days
47222072Ferrari Clip D.18 - 222072$6.75Available, ships in 3-6 days
48808848Ferrari Pipe From Valve To LH?Ventu - 808848$565.49Special order, ships in 7-14 days
49337907Ferrari Clip - 337907$0.90Special order, ships in 7-14 days
50801668Ferrari Tubo Ingresso Venturi Dx - 801668$295.03Special order, ships in 7-14 days
51808821Ferrari Tubo Ingresso Venturi Sx - 808821$295.03Special order, ships in 7-14 days
52267177Ferrari Clip D.20-21.5 - 267177$2.01Special order, ships in 7-14 days
53809273Ferrari LH Bracket To Venturi - 809273$39.31Special order, ships in 7-14 days
54797724Ferrari Screw - 797724$0.92Special order, ships in 7-14 days
55787464Ferrari Tank Equaliser Connector Pip - 787464$491.74Special order, ships in 7-14 days
56787481Ferrari Pipe Compl. With Sensors - 787481$786.79Special order, ships in 7-14 days
57766438Ferrari Equaliser Pipe Heat Shield C - 766438$137.67Special order, ships in 7-14 days
58946268Ferrari Heat Shield - 946268$199.14Special order, ships in 7-14 days
59793349Ferrari Equaliser Pipe Carrier Brack - 793349$159.79Special order, ships in 7-14 days
60790361Ferrari Screw M5 x 16 - 790361$2.59Special order, ships in 7-14 days
6110441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
6210441190Ferrari P clip Bracket With Sheath D8mm - 10441190$0.90Available, ships in 3-6 days
6314059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
6314039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
64248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
