Ferrari 296 GTS — [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING (diagram 0195)

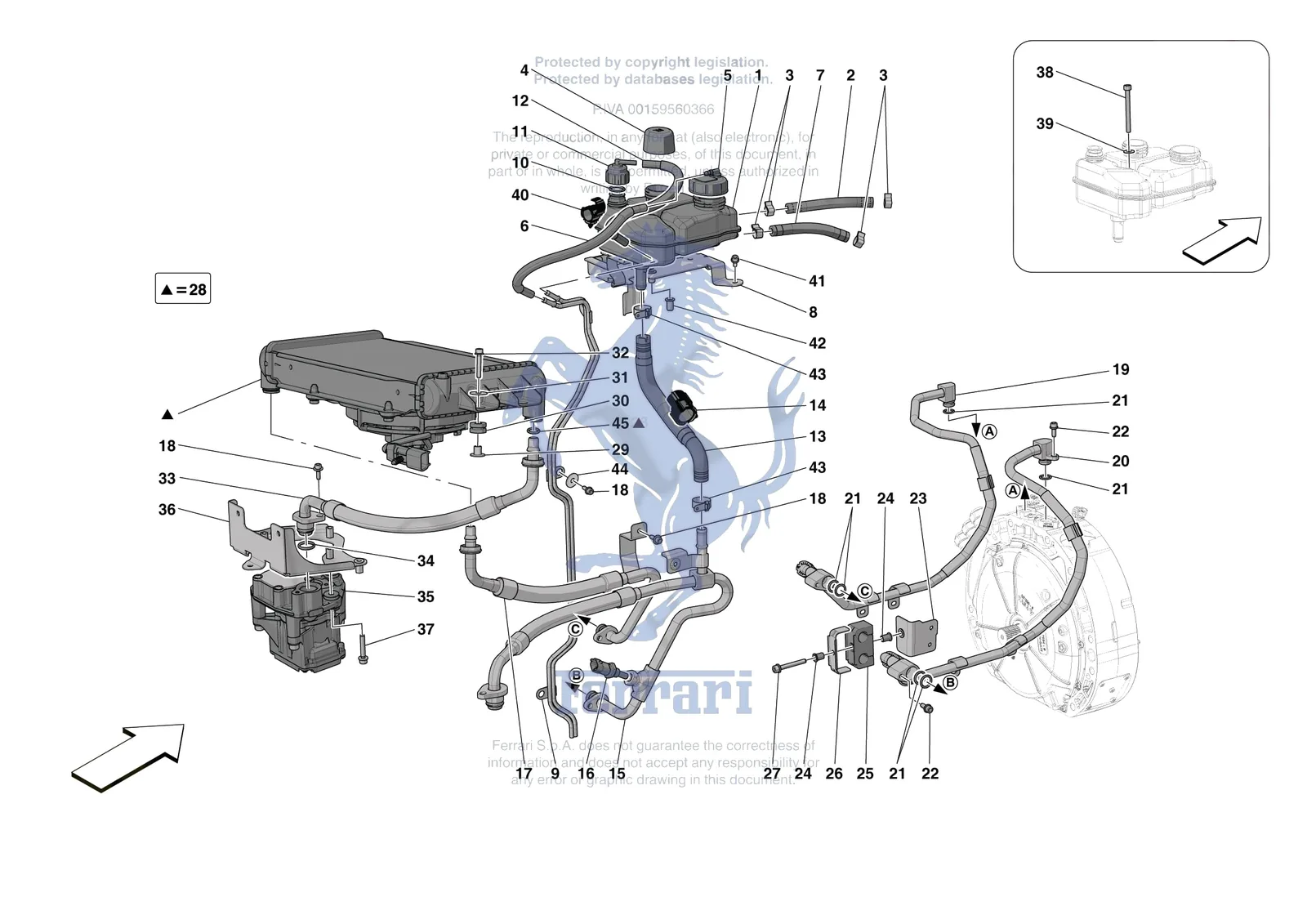

Exploded view of the [electrical system] - f.20 - electric machine cooling on the Ferrari 296 GTS, with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTS [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gts/0195.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 14569480 | Ferrari Clip 10x3.8 Black - 14569480 | $0.54 | Available, ships in 3-6 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 224997 | Ferrari Stud - 224997 | Superseded | Order 14303834 instead | |
| 1 | 748152 | Ferrari Three-Compartment Tank - 748152 | $1,278.55 | Special order, ships in 7-14 days |
| 2 | 762914 | Ferrari Tubo Gomma D. 7-14X125 - 762914 | $31.93 | Special order, ships in 7-14 days |
| 3 | 13126970 | Ferrari Collar - 13126970 | $3.03 | Available, ships in 3-6 days |
| 4 | 981124 | Ferrari Mta Oil Plug - 981124 | $95.87 | Special order, ships in 7-14 days |
| 5 | 900410 | Ferrari Cap With Battery Cooling Sys - 900410 | $76.19 | Special order, ships in 7-14 days |
| 6 | 941445 | Ferrari Rubber Pipe - 941445 | $417.97 | Special order, ships in 7-14 days |
| 7 | 768950 | Ferrari Hose - 768950 | $49.14 | Special order, ships in 7-14 days |
| 8 | 784940 | Ferrari Three-Compartment Header Tan - 784940 | $223.73 | Special order, ships in 7-14 days |
| 9 | 55003858 | Ferrari Rigid P2 Circuit/Battery Coo - 55003858 | $393.38 | Special order, ships in 7-14 days |
| 9 | 874304 | Ferrari Tubo Rigido Sfiato P2/Raffr. - 874304 | $393.38 | Special order, ships in 7-14 days |
| 10 | 922718 | Ferrari O-Ring - 922718 | $54.61 | Special order, ships in 7-14 days |
| 11 | 867659 | Ferrari Cap With P2 Header Tank Brea - 867659 | $56.52 | Special order, ships in 7-14 days |
| 12 | 941443 | Ferrari Rubber Pipe - 941443 | $417.97 | Special order, ships in 7-14 days |
| 13 | 741090 | Ferrari Tubo Preformato. Carico Circ - 741090 | $127.82 | Special order, ships in 7-14 days |
| 14 | 248061 | Ferrari Clip - 248061 | $4.12 | Available, ships in 3-6 days |
| 15 | 813354 | Ferrari Pump Inlet And Filler Pipe - 813354 | $835.97 | Special order, ships in 7-14 days |
| 16 | 180137 | Ferrari/Maserati Water Temperature Sender / Sensor - 180137 | $25.19 | In stock |
| 17 | 909762 | Ferrari Radiator Outlet Pipe - 909762 | $516.33 | Special order, ships in 7-14 days |
| 18 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 19 | 817117 | Ferrari Tubo Ingresso P2 - 817117 | $639.27 | Special order, ships in 7-14 days |
| 20 | 771663 | Ferrari P2 Outlet Pipe - 771663 | $737.61 | Special order, ships in 7-14 days |
| 21 | 286421 | Ferrari Gasket - 286421 | $1.88 | Available, ships in 3-6 days |
| 22 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 23 | 938685 | Ferrari THREADED BRACKET FOR FASTENING P2 CIRCUIT PIPE RETAINER BLOCK - 938685 | Price on request | Contact us for price and availability |
| 24 | 243399 | Ferrari Bushing - 243399 | $1.44 | Special order, ships in 7-14 days |
| 25 | 243396 | Ferrari Rubber Support Block - 243396 | $41.76 | Special order, ships in 7-14 days |
| 26 | 243398 | Ferrari Plate - 243398 | $21.60 | Special order, ships in 7-14 days |
| 27 | 231624 | Ferrari Allen Screw M6 x 45 - 231624 | Superseded | Order 14305924 instead |
| 28 | 934069 | Ferrari Oil Radiator Complete With F - 934069 | $2,060.69 | Special order, ships in 7-14 days |
| 29 | 149707 | Ferrari Spacer - 149707 | $2.13 | Available, ships in 3-6 days |
| 30 | 177576 | Ferrari Cable Grommet - 177576 | $4.12 | Available, ships in 3-6 days |
| 31 | 12647778 | Ferrari Cup Washer - 12647778 | $0.82 | Available, ships in 3-6 days |
| 32 | 797730 | Ferrari Screw - 797730 | $1.17 | Special order, ships in 7-14 days |
| 33 | 908793 | Ferrari Radiator Inlet Pipe - 908793 | $442.56 | Special order, ships in 7-14 days |
| 34 | 216851 | Ferrari O-Ring - 216851 | $5.44 | Special order, ships in 7-14 days |
| 35 | 55004826 | Ferrari Compl. Pump With Plate - 55004826 | $1,896.77 | Special order, ships in 7-14 days |
| 35 | 894449 | Ferrari Compl. Pump With Plate - 894449 | Superseded | Order 55004826 instead |
| 36 | 986012 | Ferrari Oil Pump Mounting Bracket - 986012 | $149.96 | Special order, ships in 7-14 days |
| 37 | 231622 | Ferrari Screw M6 x 35 - 231622 | $0.65 | Available, ships in 3-6 days |
| 38 | 14303834 | Ferrari Allen Screw 6x60 - 14303834 | $3.26 | Available, ships in 3-6 days |
| 38 | 14303824 | Ferrari Screw - 14303824 | Superseded | Order 14303834 instead |
| 39 | 12644424 | Ferrari Washer 6.15-15 x 1 - 12644424 | $0.12 | Available, ships in 3-6 days |
| 41 | 797724 | Ferrari Screw - 797724 | $0.92 | Special order, ships in 7-14 days |
| 42 | 248153 | Ferrari Rivet - 248153 | $2.82 | Available, ships in 3-6 days |
| 43 | 262108 | Ferrari Screw Collar - 262108 | $3.47 | Special order, ships in 7-14 days |
| 44 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 45 | 875436 | Ferrari O-Ring - 875436 | $2.59 | Special order, ships in 7-14 days |
