Ferrari 328 GTB/GTS (1985) — Air Intake And Manifolds (diagram 015)

Exploded view of the air intake and manifolds on the Ferrari 328 GTB/GTS (1985), with 68 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

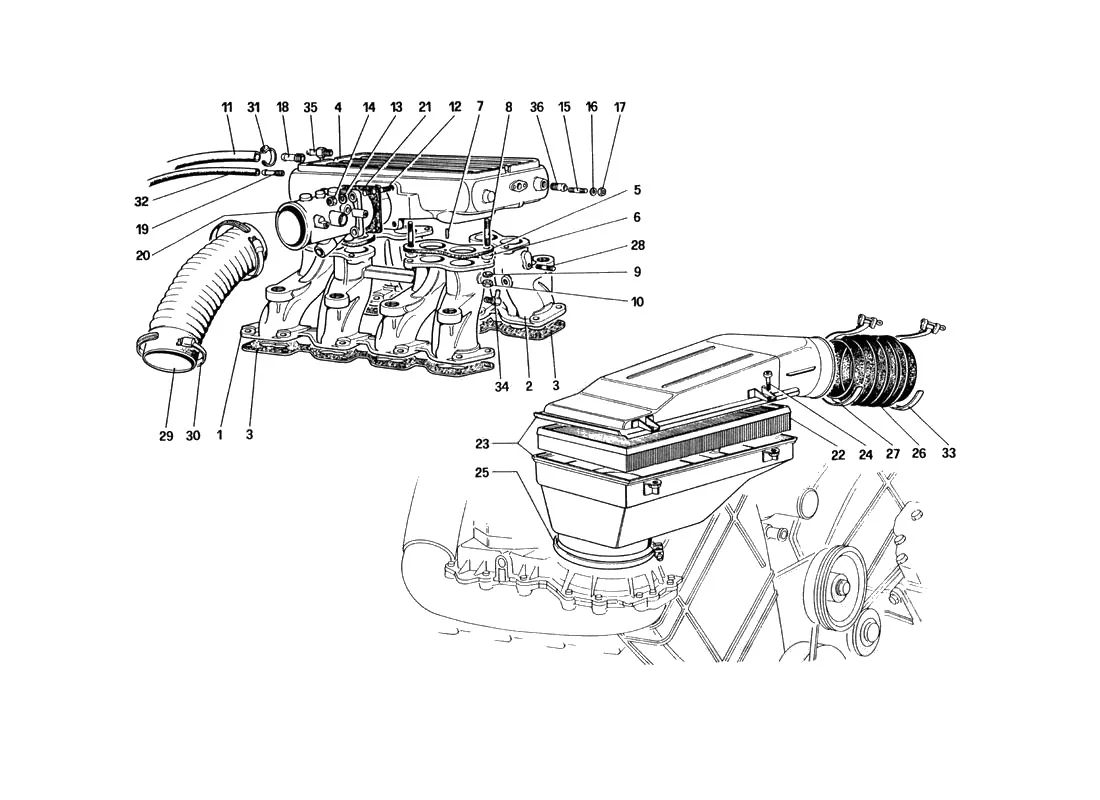

Ferrari 328 GTB/GTS (1985) Air Intake And Manifolds exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1128199Ferrari RH Intake Manifold Complete - 128199$1,428.43Available, ships in 3-6 days
1128034Ferrari RH Intake Manifold Complete - 128034$1,459.14Available, ships in 3-6 days
2128201Ferrari LH Intake Manifold Complete - 128201$1,428.43Available, ships in 3-6 days
2128035Ferrari LH Intake Manifold Complete - 128035$1,263.66Available, ships in 3-6 days
3135093Ferrari Intake Manifold Gasket - 135093$7.15In stock
3117262Ferrari Inlet Manifold Gasket - 117262$7.80Available, ships in 3-6 days
4127097Ferrari Body Air Delivery Complete - 127097$734.45Available, ships in 3-6 days
4128023Ferrari Body Air Delivery Box - 128023SupersededOrder 127097 instead
4127544Ferrari Body Air Delivery Complete - 127544$532.76Available, ships in 3-6 days
4128203Ferrari Body Air Delivery Box - 128203SupersededOrder 127097 instead
5114983Ferrari Plenum Gasket - 114983$24.75In stock
6114984Ferrari Intake Manifold Stud Spacer - 114984$14.18In stock
710331111Ferrari Dowel Bolt - 10331111Price on requestContact us for price and availability
813543524Ferrari Stud Bolt M8x16 -Shank length 25- - 13543524$9.16Available, ships in 3-6 days
813543521Ferrari Stud - 13543521SupersededOrder 13543524 instead
911198074Ferrari/Maserati Washer - 11198074$0.14In stock
911198071Ferrari Washer Beville 8mm - 11198071SupersededOrder 11198074 instead
1016100824Ferrari/Maserati Nut - 16100824$0.30In stock
1016100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
11107982Ferrari Servo Hose - 107982Price on requestContact us for price and availability
1213541124Ferrari Stud 6x12 Stem 20 - 13541124$43.68Available, ships in 3-6 days
1213541121Ferrari Stud 6x12mm - 13541121SupersededOrder 13541124 instead
1312601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead
1312601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
14102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
1412574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
1513541621Ferrari Stud 6x12 Stem 35 - 13541621SupersededOrder 13541624 instead
18103870Ferrari Union - 103870Price on requestContact us for price and availability
19113652Ferrari Threaded Union - 113652Price on requestContact us for price and availability
20127161Ferrari Throttle Body Complete - 127161SupersededOrder 128956 instead
20128956Ferrari Throttle Body Complete - 128956$1,662.61Available, ships in 3-6 days
20127163Ferrari Throttle Body - 127163SupersededOrder 128956 instead
20127921Ferrari Throttle Body Complete - 127921Price on requestContact us for price and availability
20127899Ferrari Throttle Body - 127899Price on requestContact us for price and availability
21135098Ferrari Throttle Body Gasket - 135098$12.98In stock
21115038Ferrari Gasket - 115038SupersededOrder 135098 instead
22AW7324000SFerrari 308 QV Filter Kit - AW7324000S$181.50In stock
22118006Ferrari Air Filter - 118006$41.75In stock
22AW7328000SFerrari 328/Mondial 3.2 Filter Kit - AW7328000S$181.50In stock
23118313Ferrari Air Inlet - 118313$1,276.60Available, ships in 3-6 days
23121736Ferrari Air Filter Box - 121736Price on requestContact us for price and availability
23118313/DFerrari Air Filter Box - 118313/D$1,269.08Available, ships in 3-6 days
2414305424Ferrari Allen Screw M6 x 25mm - 14305424$0.12Available, ships in 3-6 days
2414305426Ferrari Allen Screw - 14305426$0.11Available, ships in 3-6 days
25114996Ferrari Clip - 114996Price on requestContact us for price and availability
26114019Ferrari Manifold / Air Inlet Boot - 114019$61.60In stock
2710300190Ferrari Fixing Strap - 10300190$42.78Available, ships in 3-6 days
2710292390Ferrari Fixing Strap - 10292390$42.78Available, ships in 3-6 days
2811500021Ferrari Stud - 11500021Price on requestContact us for price and availability
29118310Ferrari 308 QV/328 Air Intake Pipe - 118310$263.99In stock
3012174990Ferrari Air Intake Hose Clamp - 12174990$3.30In stock
3112179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
3113000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
32128305Ferrari Tube - 128305Price on requestContact us for price and availability
33126295Ferrari Air Intake Boot Strap - 126295$9.52In stock
3310301890Ferrari Fixing Strap - 10301890$42.78Available, ships in 3-6 days
34128016Ferrari Threaded Union - 128016$20.55Special order, ships in 7-14 days
35119465Ferrari Union - 119465$19.78Available, ships in 3-6 days
36128208Ferrari Union - 128208$14.99Available, ships in 3-6 days
100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
107041Ferrari Pipe - 107041Price on requestContact us for price and availability
680910Ferrari Pipe - 680910Price on requestContact us for price and availability
11500024Ferrari Short Stud - 11500024$0.54Available, ships in 3-6 days
128957Ferrari Throttle Body Complete - 128957Price on requestContact us for price and availability
129969Ferrari Tube - 129969Price on requestContact us for price and availability
103372Ferrari Washer - 103372SupersededOrder 12601279 instead

All 328 GTB/GTS (1985) diagrams
