Ferrari 328 GTB/GTS (1985) — Exhaust System (For U.S. And Sa Version) (diagram 018)

Exploded view of the exhaust system (for u.s. and sa version) on the Ferrari 328 GTB/GTS (1985), with 99 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

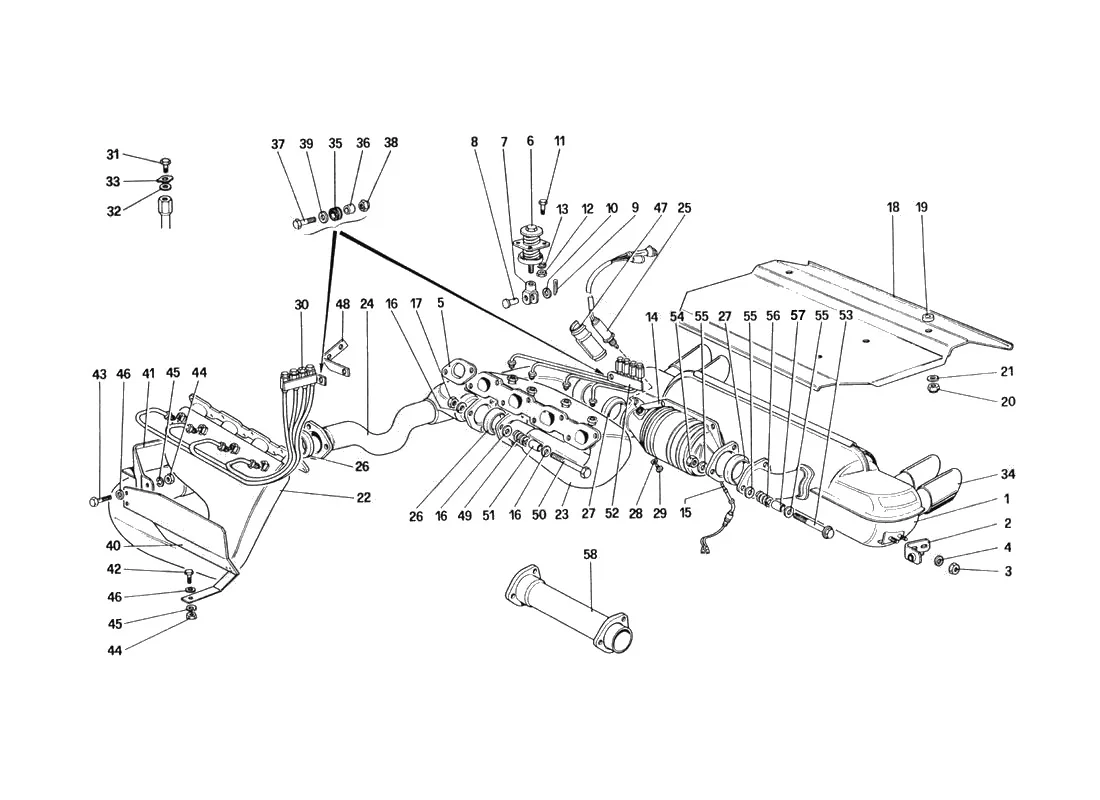

Ferrari 328 GTB/GTS (1985) Exhaust System (For U.S. And Sa Version) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1128524Ferrari Exhaust Silencer - 128524Price on requestContact us for price and availability
2108290Ferrari Exhaust Bracket - 108290$138.71Available, ships in 3-6 days
3114748Ferrari Exhaust Lock Nut - 114748$7.85In stock
410519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
410519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
5147705Ferrari Exhaust Manifold Gasket - 147705$12.93In stock
5111532Ferrari Gasket Exhaust Manifold - 111532SupersededOrder 147705 instead
6106052Ferrari Exhaust Mount-106052$160.60In stock
7108257Ferrari Fork - 108257$187.60Available, ships in 3-6 days
810033411Ferrari Pin - 10033411SupersededOrder 10033414 instead
810033414Ferrari Clevis Pin - 10033414$18.76Available, ships in 3-6 days
910796401Ferrari Split Pin - 10796401$0.13Available, ships in 3-6 days
10103167Ferrari Washer - 103167$6.98Special order, ships in 7-14 days
1110977624Ferrari Screw TE M5 x 12 - 10977624$0.12Available, ships in 3-6 days
1110977621Ferrari Bolt - 10977621SupersededOrder 10977624 instead
1215896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
1215896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
13127493Ferrari Spring Washer 5mm - 127493$0.17Available, ships in 3-6 days
13106849Ferrari Spring Washer - 106849SupersededOrder 127493 instead
14LA0178RACEPFerrari Larini Secondary Race Exhaust Pipe - LA0178RACEP$706.33In stock
14LA0163SRACEPFerrari 512TR/M/Testarossa - Larini Secondary 'Race' Exhaust Pipes - LA0163SRACEP$1,412.63In stock
14LA0164PRACEPFerrari 512TR/M/Testarossa - Larini Primary 'Race' Exhaust Pipes - LA0164PRACEP$1,830.57In stock
14LA0175RACEPFerrari 308 GTBi/GTSi/QV - Larini 'Race' Exhaust Pipes (USA Spec - Late Twin Cats) - LA0175RACEP$967.66In stock
14LA0177CSCATFerrari 308QV/328 - Larini 'Club Sport' Exhaust Catalyst - LA0177CSCAT$1,725.92In stock
14121385Ferrari 308 328 Mondial Testarossa Catalytic Converter - 121385$1,748.97In stock
14121385/AFerrari Catalytic Converter - 121385/A$3,028.95Available, ships in 3-6 days
1561402400Ferrari Thermocouple - 61402400$1,025.26Available, ships in 3-6 days
16128010Ferrari Stainless Steel Washer - 128010$2.15In stock
16112761Ferrari Washer - 112761SupersededOrder 128010 instead
18128711Ferrari Shield - 128711Price on requestContact us for price and availability
19146712Ferrari Gasket - 146712$1.28Available, ships in 3-6 days
19105924Ferrari Gasket - 105924SupersededOrder 146712 instead
20116416Ferrari Nut - 116416$24.00Available, ships in 3-6 days
21106744Ferrari Washer - 106744$18.13Available, ships in 3-6 days
22118821Ferrari 308Gtbs-Qv 82 Usa Frt Manifold - 118821$2,393.97Available, ships in 3-6 days
23129003Ferrari Exhaust Manifold - 129003$2,799.48Available, ships in 3-6 days
24128188Ferrari Extension Piece - 128188$1,435.72Available, ships in 3-6 days
25121515Ferrari Oxygen Sensor - 121515$182.38In stock
26103377Ferrari Exhaust Seal - 103377$28.38Contact us for price and availability
27154985Ferrari Exhaust Pipe Donut Gasket - 154985$32.98In stock
27121426Ferrari Exhaust Gasket Ring - 121426SupersededOrder 154985 instead
2810298460Ferrari Washer - 10298460$1.10In stock
29110860Ferrari Manifold Blanking Plug - 110860$25.09Available, ships in 3-6 days
30118886Ferrari Analyser Tube - 118886$1,561.16Special order, ships in 7-14 days
31103748Ferrari Brass Bolt - 103748$22.56Available, ships in 3-6 days
32103749Ferrari Exhaust System Washer - 103749$0.55In stock
33103587Ferrari Locktab - 103587$14.45Available, ships in 3-6 days
34114743Ferrari 308/328 Exhaust Tip - 114743$246.40In stock
35103549Ferrari Grommet - 103549$2.80In stock
36103550Ferrari Metal Bush Insert - 103550$8.34Available, ships in 3-6 days
3710902621Ferrari Bolt M6 x 25 - 10902621$0.17Available, ships in 3-6 days
38102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
3812574211Ferrari Nyloc Nut M6x1 - 12574211SupersededOrder 102948 instead
40115557Ferrari Shield - 115557$170.93Available, ships in 3-6 days
41115552Ferrari Shield - 115552Price on requestContact us for price and availability
4210902324Ferrari Screw M6 x 18 - 10902324$0.27Available, ships in 3-6 days
4210902321Ferrari Bolt - 10902321SupersededOrder 10902324 instead
4310902124Ferrari Screw - 10902124$0.29In stock
4310902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
4415896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
45127494Ferrari Lock Washer - 127494$0.50In stock
45106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
4612643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
47121833Ferrari Shield - 121833$76.35Available, ships in 3-6 days
48118999Ferrari Bracket - 118999$14.55Available, ships in 3-6 days
49111743Ferrari Exhaust Spring - 111743$43.51In stock
5016044524Ferrari 430/F430 Exhaust Bolt - 16044524$1.99In stock
50115675Ferrari Screw - 115675$1.86Available, ships in 3-6 days
51114749Ferrari Exhaust System Spacer - 114749$5.23In stock
52121780Ferrari Tube - 121780Price on requestContact us for price and availability
5315971324Ferrari Bolt M10 x 1.25 - 15971324$3.26Available, ships in 3-6 days
53121676Ferrari Bolt - 121676SupersededOrder 15971324 instead
54121677Ferrari Exhaust Lock Nut - 121677$4.98In stock
55121678Ferrari Washer - 121678$2.19Available, ships in 3-6 days
56121674Ferrari Bracket Spring - 121674$18.59Available, ships in 3-6 days
57121675Ferrari Spacer - 121675$14.41Available, ships in 3-6 days
58126534Ferrari Tube Ver/Sa - 126534$713.27Available, ships in 3-6 days
123198Ferrari Bolt - 123198SupersededOrder 15971324 instead
20429Ferrari Bolt - 20429SupersededOrder 103748 instead
95880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
100115Ferrari Brass Exhaust Nut - 100115SupersededOrder 114748 instead
124525Ferrari Brass Exhaust Nut - 124525SupersededOrder 114748 instead
105938Ferrari Brass Nut - 105938SupersededOrder 114748 instead
146698Ferrari Exhaust Pipe Donut Gasket - 146698$24.20In stock
95403Ferrari Gasket - 95403SupersededOrder 146712 instead
20459Ferrari Gasket Ring - 20459Price on requestContact us for price and availability
108272Ferrari Lock Nut - 108272SupersededOrder 114748 instead
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
4155314Ferrari Nut - 4155314SupersededOrder 114748 instead
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
9162124Ferrari Nut - 9162124SupersededOrder 114748 instead
95304Ferrari Nut - 95304SupersededOrder 114748 instead
15971321Ferrari Screw - 15971321SupersededOrder 15971324 instead
10796440Ferrari Split Pin - 10796440Price on requestContact us for price and availability
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
11195473Ferrari Washer - 11195473SupersededOrder 127493 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead

All 328 GTB/GTS (1985) diagrams
