Ferrari 328 GTB/GTS (1985) — Gearbox Transmission (diagram 024)

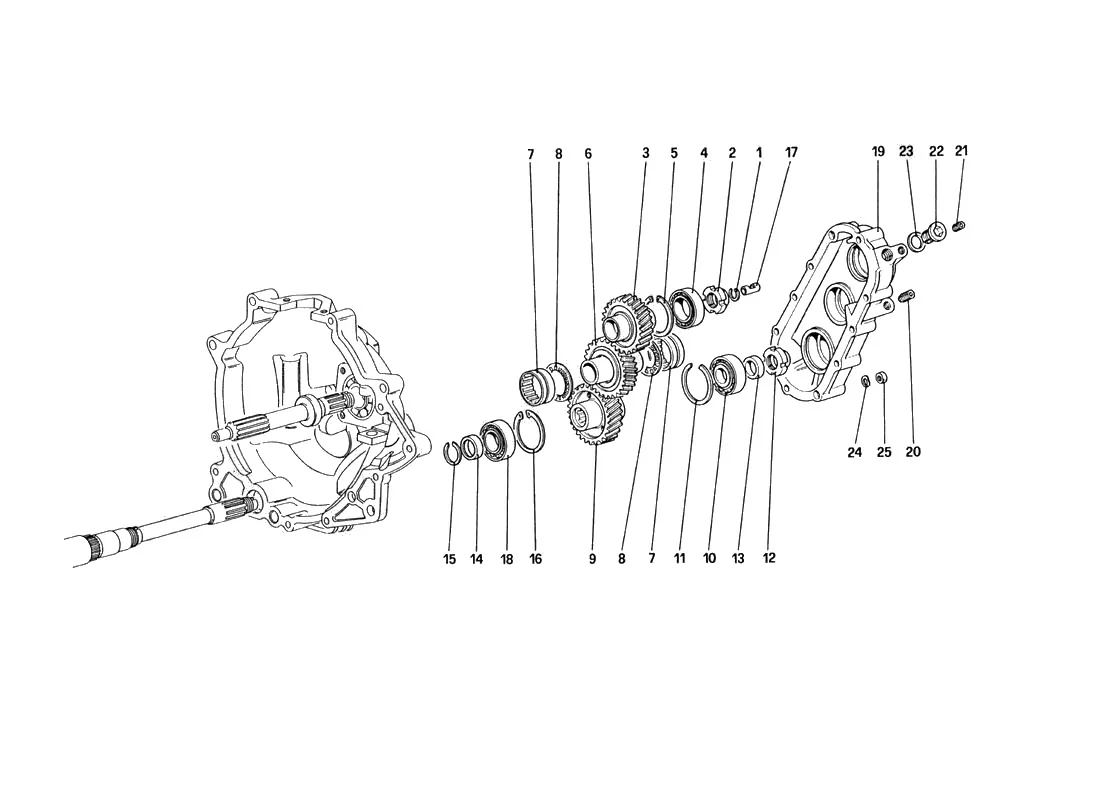

Exploded view of the gearbox transmission on the Ferrari 328 GTB/GTS (1985), with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/024.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 109342 | Ferrari Seal - 109342 | $1.65 | Available, ships in 3-6 days |
| 2 | 125500 | Ferrari Lock Nut - 125500 | Superseded | Order 153066 instead |
| 2 | 153066 | Ferrari Gearbox Locknut - 153066 | $88.27 | Available, ships in 3-6 days |
| 3 | 126850 | Ferrari Drop Gear - 126850 | Price on request | Contact us for price and availability |
| 3 | 128331 | Ferrari Drop Gear - 128331 | $1,821.43 | Available, ships in 3-6 days |
| 4 | 112981 | Ferrari Transmission Roller Bearing - 112981 | $208.98 | In stock |
| 5 | 11061076 | Ferrari Circlip / Snap Ring - 11061076 | $2.45 | In stock |
| 6 | 119722 | Ferrari Intermediate Gear - 119722 | $2,070.97 | Available, ships in 3-6 days |
| 6 | 126066 | Ferrari Intermediate Gear - 126066 | $1,552.67 | Available, ships in 3-6 days |
| 7 | 105142 | Ferrari Transmission Gear Roller Bearing - 105142 | $72.49 | In stock |
| 8 | 105143 | Ferrari Roller Bearing - 105143 | $23.12 | Available, ships in 3-6 days |
| 9 | 126863 | Ferrari Drop Gear - 126863 | Price on request | Contact us for price and availability |
| 9 | 128332 | Ferrari Drop Gear - 128332 | $3,105.73 | Special order, ships in 7-14 days |
| 10 | 126234 | Ferrari Roller Bearing - 126234 | $437.80 | In stock |
| 11 | 126861 | Ferrari Circlip - 126861 | $1.65 | Available, ships in 3-6 days |
| 12 | 126853 | Ferrari Ring Nut - 126853 | $38.12 | In stock |
| 13 | 126859 | Ferrari Spacer - 126859 | Price on request | Contact us for price and availability |
| 14 | 105134 | Ferrari Spacer - 105134 | $146.60 | Available, ships in 3-6 days |
| 15 | 105138 | Ferrari Transmission Clip / Retaining Ring - 105138 | $57.23 | In stock |
| 17 | 109336 | Ferrari Tube - 109336 | $109.08 | Special order, ships in 7-14 days |
| 18 | 108655 | Ferrari Gear Box Main Shaft Bearing - 108655 | $383.90 | In stock |
| 19 | 127120 | Ferrari Drop Gear Cover - 127120 | Price on request | Contact us for price and availability |
| 20 | 14326150 | Ferrari/Maserati Threaded Plug - 14326150 | $2.56 | In stock |
| 21 | 10269450 | Ferrari Plug - 10269450 | $26.43 | Available, ships in 3-6 days |
| 22 | 10275001 | Ferrari Plug - 10275001 | Superseded | Order 10275011 instead |
| 23 | 10279560 | Ferrari Gearbox Drain Plug Washer 22mm - 10279560 | $1.10 | In stock |
| 24 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 24 | 11198071 | Ferrari Washer Beville 8mm - 11198071 | Superseded | Order 11198074 instead |
| 25 | 16100824 | Ferrari/Maserati Nut - 16100824 | $0.30 | In stock |
| 25 | 16100811 | Ferrari Nut 8x6.5mm - 16100811 | Superseded | Order 16100824 instead |
| 105127 | Ferrari Cover - 105127 | Price on request | Contact us for price and availability | |
| 10275011 | Ferrari Crankcase/Gearbox Drain Plug and Gasket - 10275011 | $15.15 | In stock | |
| 16100812 | Ferrari Nut - 16100812 | Superseded | Order 16100824 instead | |
| 16100814 | Ferrari Nut - 16100814 | Superseded | Order 16100824 instead | |
| 10305140 | Ferrari Plug - 10305140 | Superseded | Order 10275011 instead | |
| 10305171 | Ferrari Plug - 10305171 | Superseded | Order 10275011 instead | |
| 103990 | Ferrari Roller Bearing - 103990 | Superseded | Order 126234 instead |
