Ferrari 348 tb/ts — Hand-Brake Control (diagram 034)

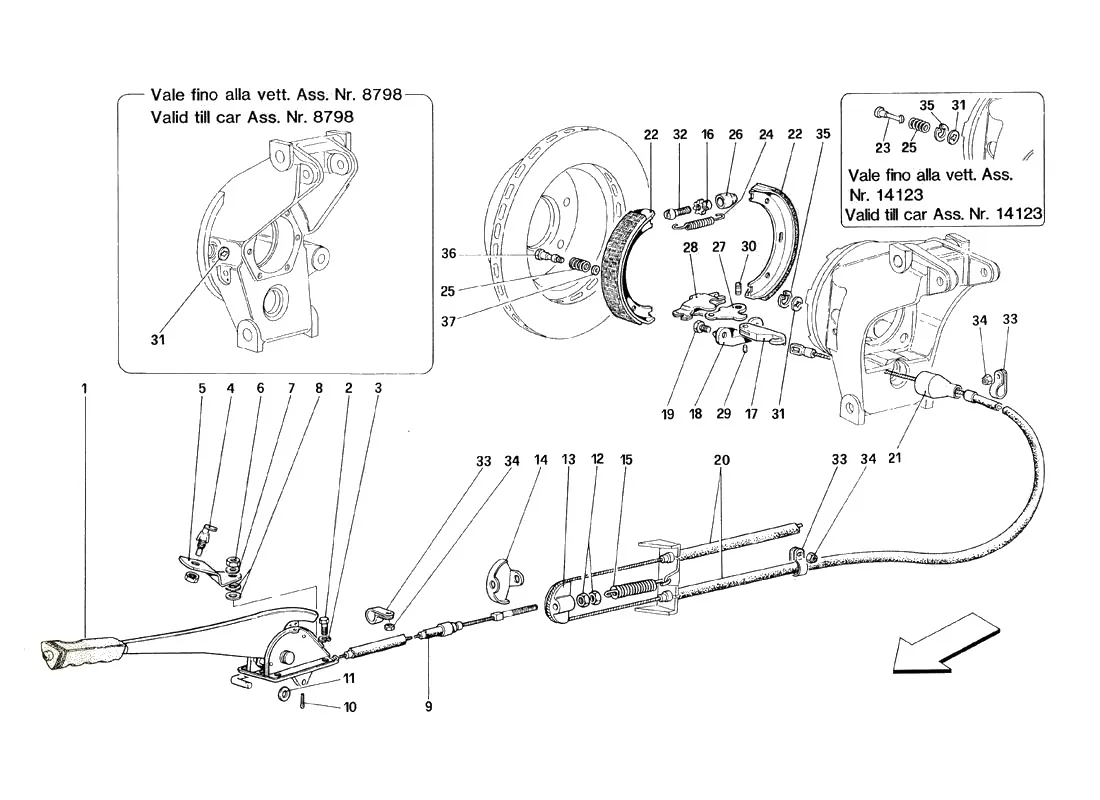

Exploded view of the hand-brake control on the Ferrari 348 tb/ts, with 79 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 348 tb/ts Hand-Brake Control exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1154095Ferrari Handbrake Lever - 154095Price on requestContact us for price and availability
1141460Ferrari Handbrake Lever - 141460Price on requestContact us for price and availability
210902124Ferrari Screw - 10902124$0.29In stock
210902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
3127494Ferrari Lock Washer - 127494$0.50In stock
4114318Ferrari Handbrake Light Switch - 114318SupersededOrder 975354 instead
4975354Ferrari Handbrake Switch Kit - 975354$18.44Available, ships in 3-6 days
5114320Ferrari Bracket - 114320Price on requestContact us for price and availability
615896470Ferrari RH Thread Nut M5 x 4 - 15896470$14.30Available, ships in 3-6 days
712601174Ferrari Wavy Washer 5mm - 12601174$0.12Available, ships in 3-6 days
712605270Ferrari Washer - 12605270SupersededOrder 12601174 instead
810519377Ferrari Washer - 10519377SupersededOrder 10519378 instead
810519378Ferrari Spring Washer 5mm - 10519378$0.08Available, ships in 3-6 days
9141219Ferrari 348/F355 Front Hand Brake Cable - 141219$128.54In stock
1010796440Ferrari Split Pin - 10796440Price on requestContact us for price and availability
1110519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
1216102314Ferrari Nut M8 x 5 - 16102314$0.13Available, ships in 3-6 days
1216102311Ferrari RH Thread Nut - 16102311SupersededOrder 16102314 instead
13118552Ferrari Cable Holder - 118552$5.65Available, ships in 3-6 days
14118553Ferrari Cable Holder Cover - 118553Price on requestContact us for price and availability
15104895Ferrari Spring - 104895$41.06Available, ships in 3-6 days
16101286Ferrari Adjuster For Handbrake Mechanism - 101286$104.50Available, ships in 3-6 days
17105270Ferrari Handbrake Cable Fork - 105270$71.98Available, ships in 3-6 days
18106243Ferrari Block - 106243$252.84In stock
18142861Ferrari Block - 142861$300.30Available, ships in 3-6 days
19106242Ferrari Bolt - 106242$6.54Available, ships in 3-6 days
19142856Ferrari Screw M10 x 1.25 x 16 - 142856$9.16Special order, ships in 7-14 days
20141220Ferrari Rear Handbrake Cable - 141220$96.46In stock
21132129Ferrari Handbrake Cable Cover - 132129$102.85Available, ships in 3-6 days
21143938Ferrari Cover For Handbrake Cable - 143938$20.65Available, ships in 3-6 days
22134847Ferrari Parking Brake Shoes - 134847$97.90In stock
22170701Ferrari Parking Brake Shoes - 170701$192.50In stock
22159894Ferrari Handbrake Shoe Complete - 159894SupersededOrder 170701 instead
22159908Ferrari Handbrake Shoe Complete - 159908SupersededOrder 170701 instead
22142886Ferrari Handbrake Shoe Complete - 142886SupersededOrder 170701 instead
23101275Ferrari Handbrake Mechanism Pin - 101275$28.80Available, ships in 3-6 days
24101276Ferrari Spring For Handbrake Mechanism - 101276$26.74Available, ships in 3-6 days
25101277Ferrari Hand Brake Spring - 101277$6.33In stock
26101279Ferrari Seat For Handbrake Mechanism - 101279$194.48Special order, ships in 7-14 days
27101280Ferrari Hand Brake Control Lever - 101280$114.21Contact us
28101281Ferrari Plate For Handbrake Mechanism - 101281$164.88Available, ships in 3-6 days
29101282Ferrari Pin For Handbrake Mechanism - 101282$24.74Available, ships in 3-6 days
30101283Ferrari Pin For Handbrake Mechanism - 101283$37.14Available, ships in 3-6 days
31101284Ferrari Retaining Plate For Handbrake Mechanism - 101284$5.12Available, ships in 3-6 days
31101284/AFerrari Retaining Plate For Handbrake Mechanism - 101284/A$7.97Available, ships in 3-6 days
32101285Ferrari Hand Brake Threaded Pin - 101285$124.99In stock
3310418501Ferrari P Clip Clamp 10mm - 10418501$6.54Available, ships in 3-6 days
34102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
3412575411Ferrari Nyloc Nut M6 x 6 - 12575411SupersededOrder 12575421 instead
3511057276Ferrari Circlip - 11057276$0.46Available, ships in 3-6 days
36156915Ferrari Hand Brake Screw - 156915$30.64In stock
36156916Ferrari Handbrake Screw 29mm - 156916$78.91Available, ships in 3-6 days
3712625224Ferrari Washer - 12625224$0.13Available, ships in 3-6 days
3712625221Ferrari Washer - 12625221$0.17Available, ships in 3-6 days
680538Ferrari Arm - 680538SupersededOrder 101280 instead
95880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
162820Ferrari Handbrake Shoe Complete - 162820SupersededOrder 170701 instead
15896421Ferrari Nut - 15896421SupersededOrder 15896470 instead
16100825Ferrari Nut - 16100825SupersededOrder 16102314 instead
16102315Ferrari Nut - 16102315SupersededOrder 16102314 instead
16102321Ferrari Nut - 16102321Price on requestContact us for price and availability
680544Ferrari Nut - 680544SupersededOrder 101286 instead
12575421Ferrari Nyloc Nut M6 x 6 - 12575421$0.40Available, ships in 3-6 days
680540Ferrari Pin - 680540SupersededOrder 101282 instead
16100821Ferrari Plain Nut 8mm x 6.25mm Pitch 1.25 - 16100821SupersededOrder 16102314 instead
680542Ferrari Retaining Plate - 680542SupersededOrder 101284 instead
680520Ferrari Seat - 680520SupersededOrder 101279 instead
10796401Ferrari Split Pin - 10796401$0.13Available, ships in 3-6 days
264555Ferrari Split Pin - 264555Price on requestContact us for price and availability
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
10519306Ferrari Washer - 10519306SupersededOrder 10519378 instead
12605274Ferrari Washer - 12605274SupersededOrder 12601174 instead
660525Ferrari Washer - 660525SupersededOrder 12601174 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
10519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead

All 348 tb/ts diagrams
