Ferrari 365 GTB4 (Daytona) — Air Conditioning System (diagram 038)

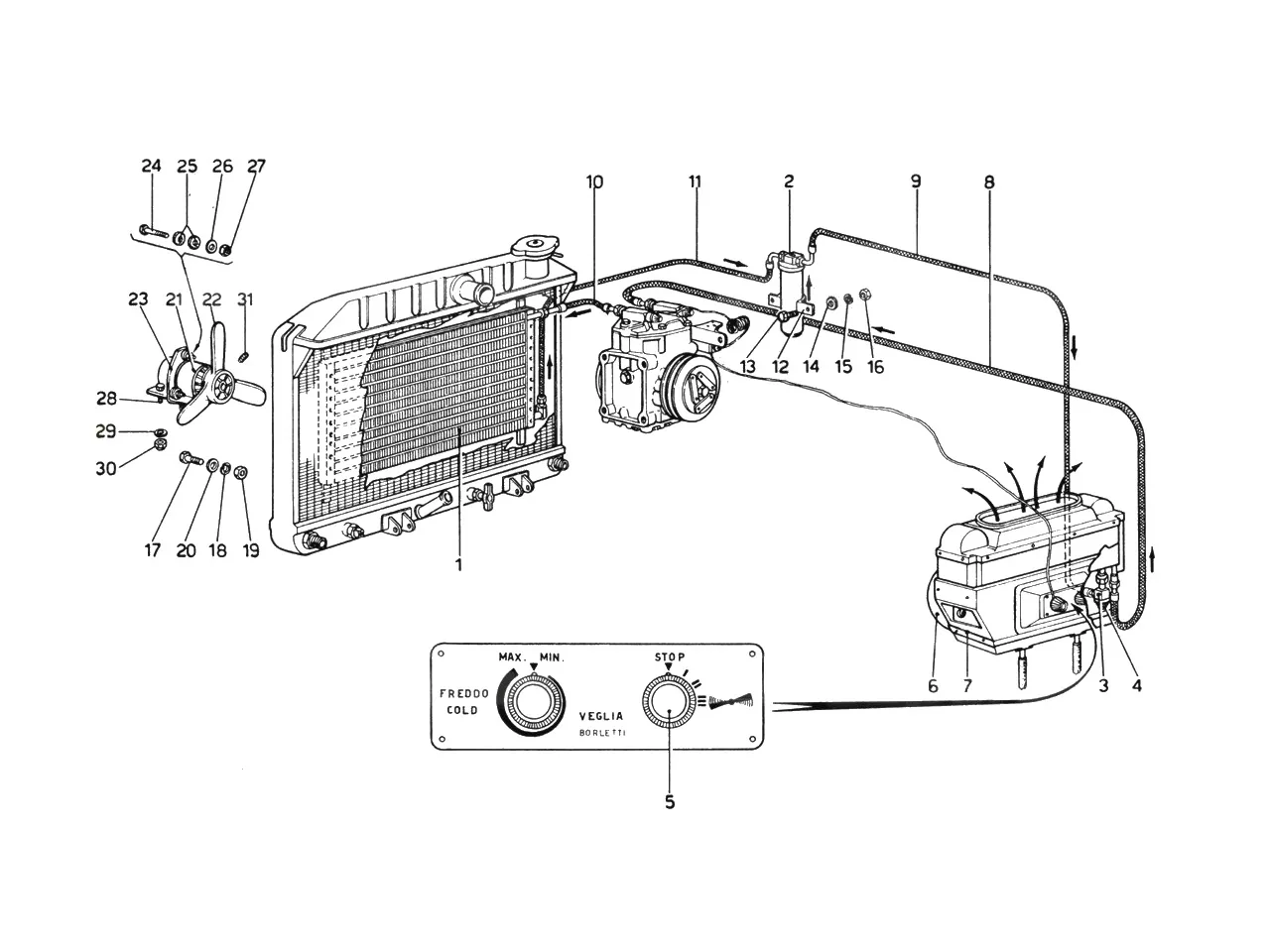

Exploded view of the air conditioning system on the Ferrari 365 GTB4 (Daytona), with 46 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/038.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 32305 | Ferrari Condenser - 32305 | Superseded | Order 101988 instead |
| 1 | 101988 | Ferrari Condenser Radiator (Air Condition) - 101988 | $1,869.11 | Available, ships in 3-6 days |
| 2 | 101986 | Ferrari Dryer Bottle - 101986 | $206.59 | Available, ships in 3-6 days |
| 3 | 100474 | Ferrari Air Con Expansion Valve - 100474 | $176.47 | Available, ships in 3-6 days |
| 5 | 105908 | Ferrari Fan Speed Knob - 105908 | $349.25 | Available, ships in 3-6 days |
| 5 | 320416 | Ferrari Nut - 320416 | Superseded | Order 105908 instead |
| 7 | 320444 | Ferrari Evaporator - 320444 | Price on request | Contact us for price and availability |
| 8 | 95320181 | Ferrari A.C. Pipe 5/8in Dia - 95320181 | Price on request | Contact us for price and availability |
| 8 | 320362 | Ferrari A.C. Pipe 5/8in Dia - 320362 | Price on request | Contact us for price and availability |
| 9 | 95320177 | Ferrari A.C. Pipe 3/8in Dia - 95320177 | Price on request | Contact us for price and availability |
| 9 | 320361 | Ferrari A.C. Pipe 3/8in Dia - 320361 | Price on request | Contact us for price and availability |
| 10 | 95320178 | Ferrari A.C. Pipe 1/2in Dia - 95320178 | Price on request | Contact us for price and availability |
| 10 | 320363 | Ferrari A.C. Pipe 1/2in Dia - 320363 | Price on request | Contact us for price and availability |
| 11 | 320360 | Ferrari A.C. Pipe 3/8in Dia - 320360 | Price on request | Contact us for price and availability |
| 14 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 14 | 94703 | Ferrari Washer - 94703 | Superseded | Order 12643701 instead |
| 15 | 12601271 | Ferrari Wavy Washer 6mm - 12601271 | Superseded | Order 12601279 instead |
| 15 | 12601279 | Ferrari Wavy Washer 6mm - 12601279 | $0.19 | Available, ships in 3-6 days |
| 16 | 134041 | Ferrari Nut 6mm - 134041 | $1.80 | Available, ships in 3-6 days |
| 16 | 15896221 | Ferrari Nut - 15896221 | Superseded | Order 134041 instead |
| 21 | 102029 | Ferrari Motor - 102029 | Price on request | Contact us for price and availability |
| 22 | 361165 | Ferrari Fan Assy - 361165 | $129.45 | Available, ships in 3-6 days |
| 23 | 36142 | Ferrari Fan Motor Bracket - 36142 | Superseded | Order 107430 instead |
| 23 | 107430 | Ferrari Fan Mounting Bracket (4 studs in base) - 107430 | $397.73 | Available, ships in 3-6 days |
| 23 | 36152 | Ferrari Fan Motor Bracket - 36152 | Price on request | Contact us for price and availability |
| 25 | 36143 | Ferrari Spacer - 36143 | Price on request | Contact us for price and availability |
| 26 | 94925 | Ferrari Washer - 94925 | Price on request | Contact us for price and availability |
| 27 | 100436 | Ferrari Water Pump Nut - 100436 | $6.44 | In stock |
| 27 | 102741 | Ferrari/Maserati Nyloc Nut M6 - 102741 | $0.45 | In stock |
| 27 | 12575411 | Ferrari Nyloc Nut M6 x 6 - 12575411 | Superseded | Order 12575421 instead |
| 29 | 10519624 | Ferrari Washer 8.15 - 17 x 2 - 10519624 | $0.27 | Available, ships in 3-6 days |
| 29 | 93798 | Ferrari Washer - 93798 | Superseded | Order 10519624 instead |
| 31 | 102031 | Ferrari Grub Screw - 102031 | $1.74 | Available, ships in 3-6 days |
| 31 | 95134 | Ferrari Pin - 95134 | Superseded | Order 102031 instead |
| 31 | 101990/A | Ferrari Switch Commutator AC - 101990/A | $258.04 | Available, ships in 3-6 days |
| 109826 | Ferrari Fan Motor - 109826 | $483.73 | Available, ships in 3-6 days | |
| 109852 | Ferrari Fan Motor - 109852 | Price on request | Contact us for price and availability | |
| 15896225 | Ferrari Nut - 15896225 | Superseded | Order 134041 instead | |
| 12575421 | Ferrari Nyloc Nut M6 x 6 - 12575421 | $0.40 | Available, ships in 3-6 days | |
| 105913 | Ferrari Switch - 105913 | Price on request | Contact us for price and availability | |
| 320395 | Ferrari Switch - 320395 | Price on request | Contact us for price and availability | |
| 103372 | Ferrari Washer - 103372 | Superseded | Order 12601279 instead | |
| 10519601 | Ferrari Washer 8.15-17 X 2 - 10519601 | Superseded | Order 10519624 instead | |
| - | 109820 | Ferrari AC Information Plate - 109820 | $82.50 | In stock |
| - | 95320034 | Ferrari Complete Pressure Switch - 95320034 | Price on request | Contact us for price and availability |
| - | 101990 | Ferrari Switch Commutator AC - 101990 | $259.57 | Available, ships in 3-6 days |
