Ferrari 458 Speciale Aperta (Convertible) — Injection - Ignition System (diagram 007)

Exploded view of the injection - ignition system on the Ferrari 458 Speciale Aperta (Convertible), with 65 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

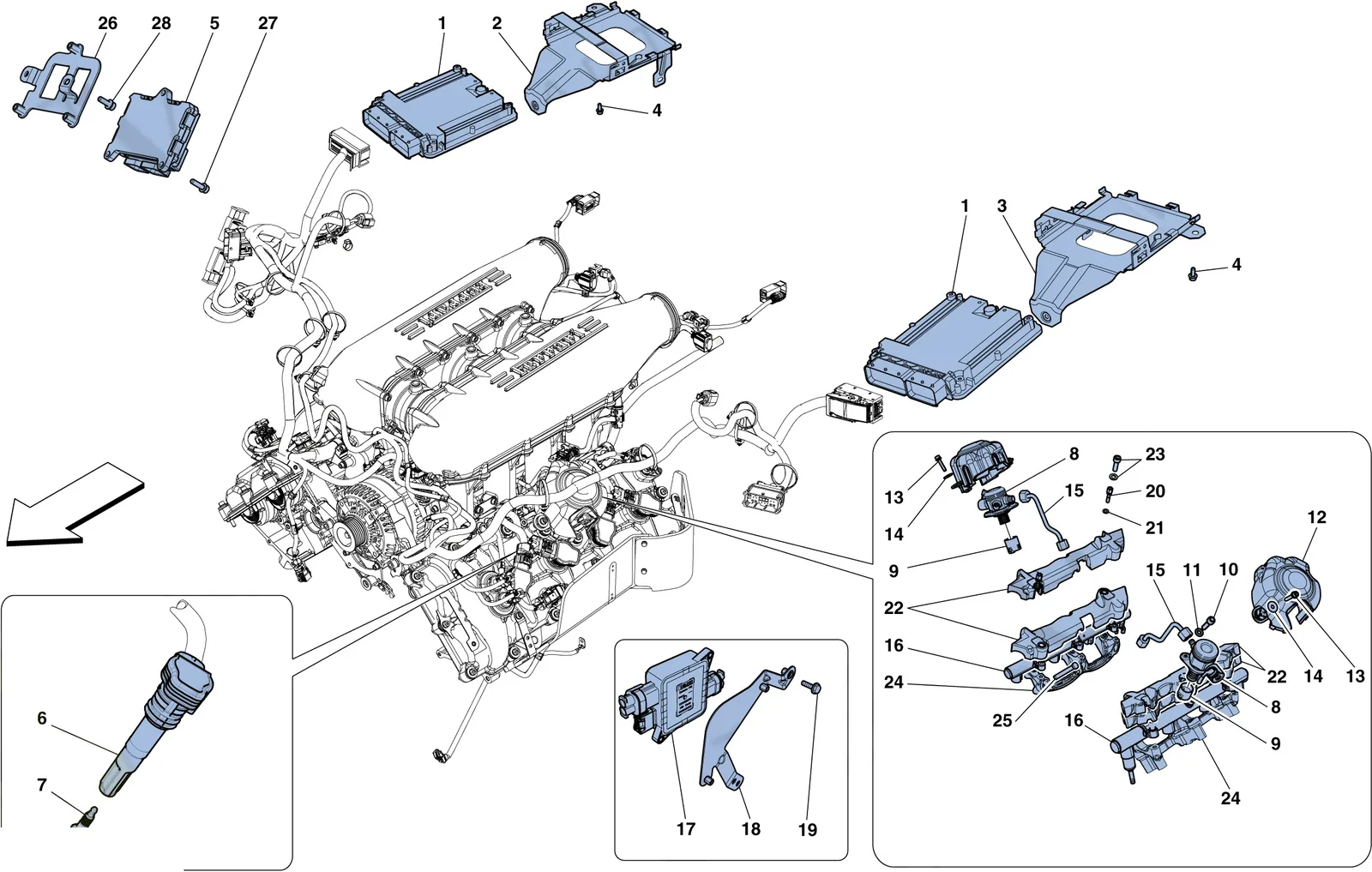

Ferrari 458 Speciale Aperta (Convertible) Injection - Ignition System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1238263Ferrari Ignition ECU - 238263$4,541.19Special order, ships in 7-14 days
2261838Ferrari RH Bracket - 261838$149.29Special order, ships in 7-14 days
3261839Ferrari LH Bracket - 261839$149.29Special order, ships in 7-14 days
414305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
4231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
5289064Ferrari Ionising Knock Sensor Control Unit - 289064$2,564.32Special order, ships in 7-14 days
6772927Ferrari Ignition Coil - 772927$120.98In stock
6337713Ferrari Ignition Coil - 337713SupersededOrder 772927 instead
6290850Ferrari Ignition Coil - 290850SupersededOrder 772927 instead
7254771/8Ferrari Spark Plug Set - 254771/8$430.00In stock
7254771Ferrari Spark Plug - 254771$54.89In stock
8252704Ferrari Fuel Pump - 252704SupersededOrder 290030 instead
8290030Ferrari Fuel Pump - 290030$1,283.69Special order, ships in 7-14 days
9270601Ferrari Cup - 270601$100.93Special order, ships in 7-14 days
1014305334Ferrari Screw M6 x 20 - 14305334$0.38Available, ships in 3-6 days
1112639724Ferrari Washer - 12639724$0.08Available, ships in 3-6 days
12247537Ferrari SoundProofing Cover - 247537$149.29Special order, ships in 7-14 days
13231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
1412647701Ferrari Washer - 12647701$0.12Available, ships in 3-6 days
15247674Ferrari Fuel Tube - 247674$685.34Special order, ships in 7-14 days
16250777Ferrari Injector Tube - 250777$5,158.95Special order, ships in 7-14 days
17264935Ferrari Fuel Pump Controller - 264935$709.82Special order, ships in 7-14 days
18278268Ferrari ECU Mounting Bracket - 278268$149.29Special order, ships in 7-14 days
1911625714Ferrari SCREW - 11625714$1.02Special order, ships in 7-14 days
20214412Ferrari Stud Bolt - 214412$20.14Available, ships in 3-6 days
2111194374Ferrari Washer D. 6.4 - 11194374$1.17Available, ships in 3-6 days
22256322Ferrari Insulation - 256322$129.70Special order, ships in 7-14 days
23231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
24239946Ferrari Fuel Rail Mounting - 239946$269.23Special order, ships in 7-14 days
25231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
26293226Ferrari Mounting Bracket - 293226$129.70Special order, ships in 7-14 days
27231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
28231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
249655Ferrari 458/California Fuel Pump - 249655$799.68In stock
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
272145Ferrari ECU Mounting Bracket - 272145$122.36Special order, ships in 7-14 days
267235Ferrari Fuel Pump - 267235SupersededOrder 290030 instead
248406Ferrari Ignition Coil - 248406SupersededOrder 772927 instead
239971Ferrari Ignition ECU - 239971SupersededOrder 238263 instead
242398Ferrari Ignition ECU - 242398SupersededOrder 238263 instead
253029Ferrari Ignition ECU - 253029SupersededOrder 238263 instead
254281Ferrari Ignition ECU - 254281SupersededOrder 238263 instead
254317Ferrari Ignition ECU - 254317SupersededOrder 238263 instead
254330Ferrari Ignition ECU - 254330SupersededOrder 238263 instead
255304Ferrari Ignition ECU - 255304SupersededOrder 238263 instead
255305Ferrari Ignition ECU - 255305SupersededOrder 238263 instead
258723Ferrari Ignition ECU - 258723SupersededOrder 238263 instead
258997Ferrari Ignition ECU - 258997SupersededOrder 238263 instead
259283Ferrari Ignition ECU - 259283SupersededOrder 238263 instead
261406Ferrari Ignition ECU - 261406SupersededOrder 238263 instead
261408Ferrari Ignition ECU - 261408SupersededOrder 238263 instead
262756Ferrari Ignition ECU - 262756SupersededOrder 238263 instead
262758Ferrari Ignition ECU - 262758SupersededOrder 238263 instead
262759Ferrari Ignition ECU - 262759SupersededOrder 238263 instead
262760Ferrari Ignition ECU - 262760SupersededOrder 238263 instead
262761Ferrari Ignition ECU - 262761SupersededOrder 238263 instead
262762Ferrari Ignition ECU - 262762SupersededOrder 238263 instead
247872Ferrari Insulation - 247872$129.70Special order, ships in 7-14 days
266337Ferrari Rail Soundproofing Cover - 266337SupersededOrder 256322 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
231359Ferrari Single Ignition Coil - 231359SupersededOrder 772927 instead

All 458 Speciale Aperta (Convertible) diagrams
