Ferrari 458 Speciale Aperta (Convertible) — Steering Control (diagram 032)

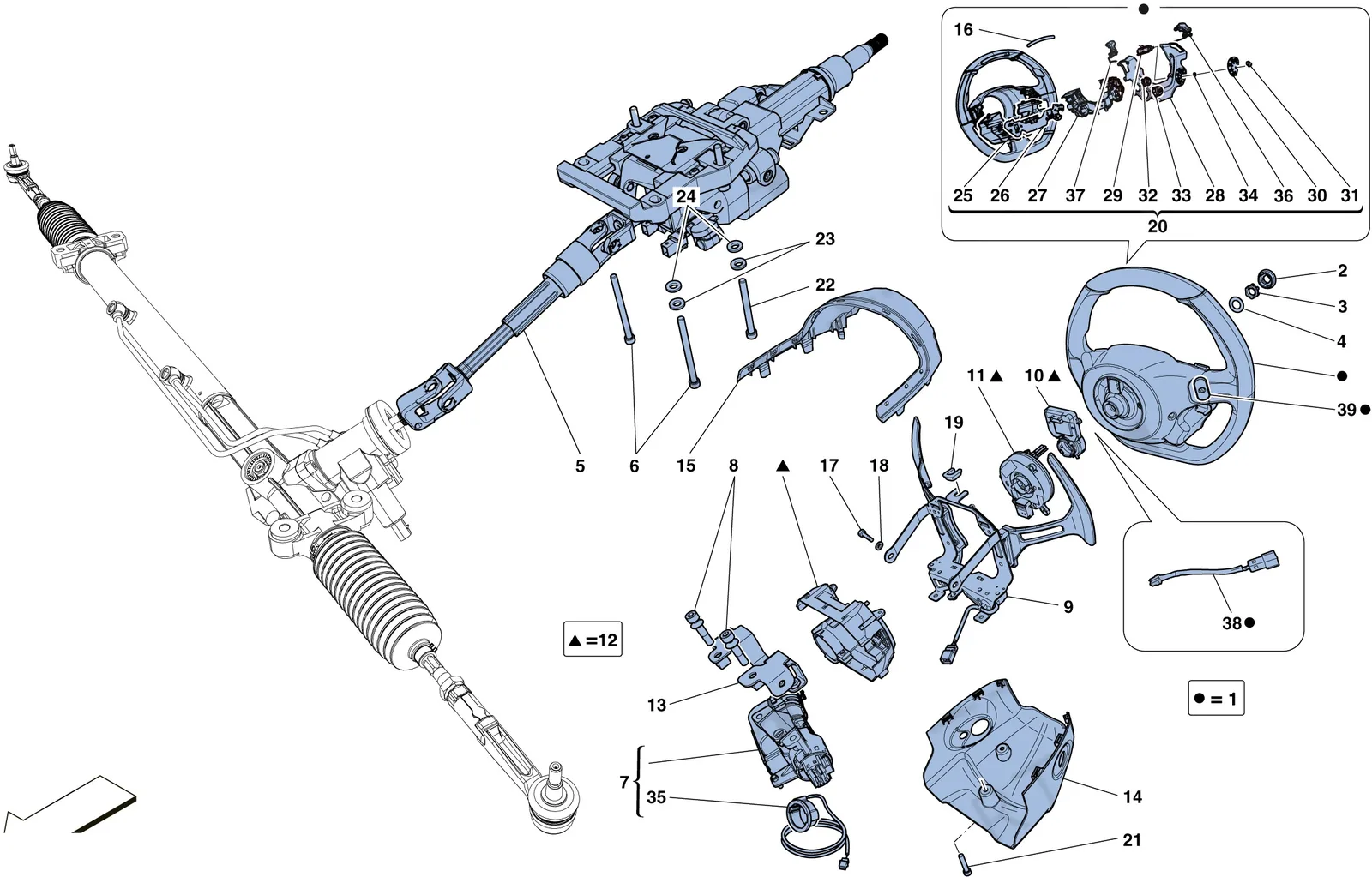

Exploded view of the steering control on the Ferrari 458 Speciale Aperta (Convertible), with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 458 Speciale Aperta (Convertible) Steering Control exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
2199406Ferrari Plug - 199406$0.79Available, ships in 3-6 days
2299558Ferrari Plug - 299558SupersededOrder 199406 instead
3299557Ferrari Caged Nut 16x1.5 - 299557$2.80Available, ships in 3-6 days
4152034Ferrari Spacer 0.5mm - 152034$12.59Special order, ships in 7-14 days
5280960Ferrari Steering Manual Column Complete - 280960$2,990.93Special order, ships in 7-14 days
6259375Ferrari Screw 8X110 - 259375$2.36Special order, ships in 7-14 days
7247058Ferrari Steering Lock - 247058$660.87Special order, ships in 7-14 days
8192053Ferrari Screw - 192053$9.10Special order, ships in 7-14 days
9298846Ferrari Shift Paddle Complete - 298846$5,077.36Special order, ships in 7-14 days
10188171Ferrari Steering Angle Sensor - 188171$456.90Special order, ships in 7-14 days
11259914Ferrari Clock Spring Contact - 259914$807.74Special order, ships in 7-14 days
12252246Ferrari Steering Sensor Mounting Complete - 252246$954.60Special order, ships in 7-14 days
13258616Ferrari Bracket Mounting - 258616$132.15Special order, ships in 7-14 days
16214236Ferrari Led Plate For Steering Wheel - 214236$611.91Special order, ships in 7-14 days
1714304187Ferrari Screw TCEI M5x12 - 14304187$0.46Available, ships in 3-6 days
1812601174Ferrari Wavy Washer 5mm - 12601174$0.12Available, ships in 3-6 days
1968002000Ferrari Rubber Pad - 68002000$7.40Special order, ships in 7-14 days
20308323Ferrari Steering Wheel Mounted Controls -Carbon- - 308323$6,970.30Special order, ships in 7-14 days
21169814Ferrari Screw M5 x 14 TBFEI - 169814$2.61Available, ships in 3-6 days
2181917100Ferrari Screw 5x14 - 81917100SupersededOrder 169814 instead
2214306924Ferrari Allen Screw 8x50 - 14306924$1.42Available, ships in 3-6 days
2311194074Ferrari Washer 8.6-16x1.9 - 11194074$0.08Available, ships in 3-6 days
2410519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
25258336Ferrari Main Shell - 258336$44.03Special order, ships in 7-14 days
26308322Ferrari Electronic Board - 308322$1,125.95Special order, ships in 7-14 days
27258338Ferrari Main Mount - 258338$44.03Special order, ships in 7-14 days
28260514Ferrari Surround - Carbon - 260514$3,562.06Special order, ships in 7-14 days
29212752Ferrari Rotary Selector - 212752$1,199.37Special order, ships in 7-14 days
30273115Ferrari Manettino Decal - 273115$88.09Available, ships in 3-6 days
31210986Ferrari Lever - 210986$237.40Special order, ships in 7-14 days
32257739Ferrari Shock Absorber Height Button - 257739$85.64Special order, ships in 7-14 days
33257738Ferrari Engine Start Button - 257738$102.77Special order, ships in 7-14 days
34308717Ferrari Spacer - 308717$8.89Special order, ships in 7-14 days
35191664Ferrari Antenna Immobilizer - 191664$58.73Special order, ships in 7-14 days
36255430Ferrari RH Turn Indicators - 255430$367.14Special order, ships in 7-14 days
37255429Ferrari LH Turn Indicators - 255429$367.14Special order, ships in 7-14 days
38325936Ferrari Clock Spring Connector Harness - 325936$188.45Special order, ships in 7-14 days
39292879Ferrari LH Nit Button - 292879$1,762.38Special order, ships in 7-14 days
39291692Ferrari RH Nit Button - 291692$1,762.38Special order, ships in 7-14 days
187750Ferrari Spiral Column Contact - 187750SupersededOrder 259914 instead
12601171Ferrari Washer - 12601171SupersededOrder 12601174 instead
12604174Ferrari Washer - 12604174$0.06Available, ships in 3-6 days
12604178Ferrari Washer - 12604178SupersededOrder 12601174 instead
12605270Ferrari Washer - 12605270SupersededOrder 12601174 instead
12605274Ferrari Washer - 12605274SupersededOrder 12601174 instead
660525Ferrari Washer - 660525SupersededOrder 12601174 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
10519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
12601179Ferrari Wavy Washer 5mm - 12601179SupersededOrder 12601174 instead

All 458 Speciale Aperta (Convertible) diagrams
