Ferrari 458 Speciale Aperta (Convertible) — Power Steering Pump And Reservoir (diagram 033)

Exploded view of the power steering pump and reservoir on the Ferrari 458 Speciale Aperta (Convertible), with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

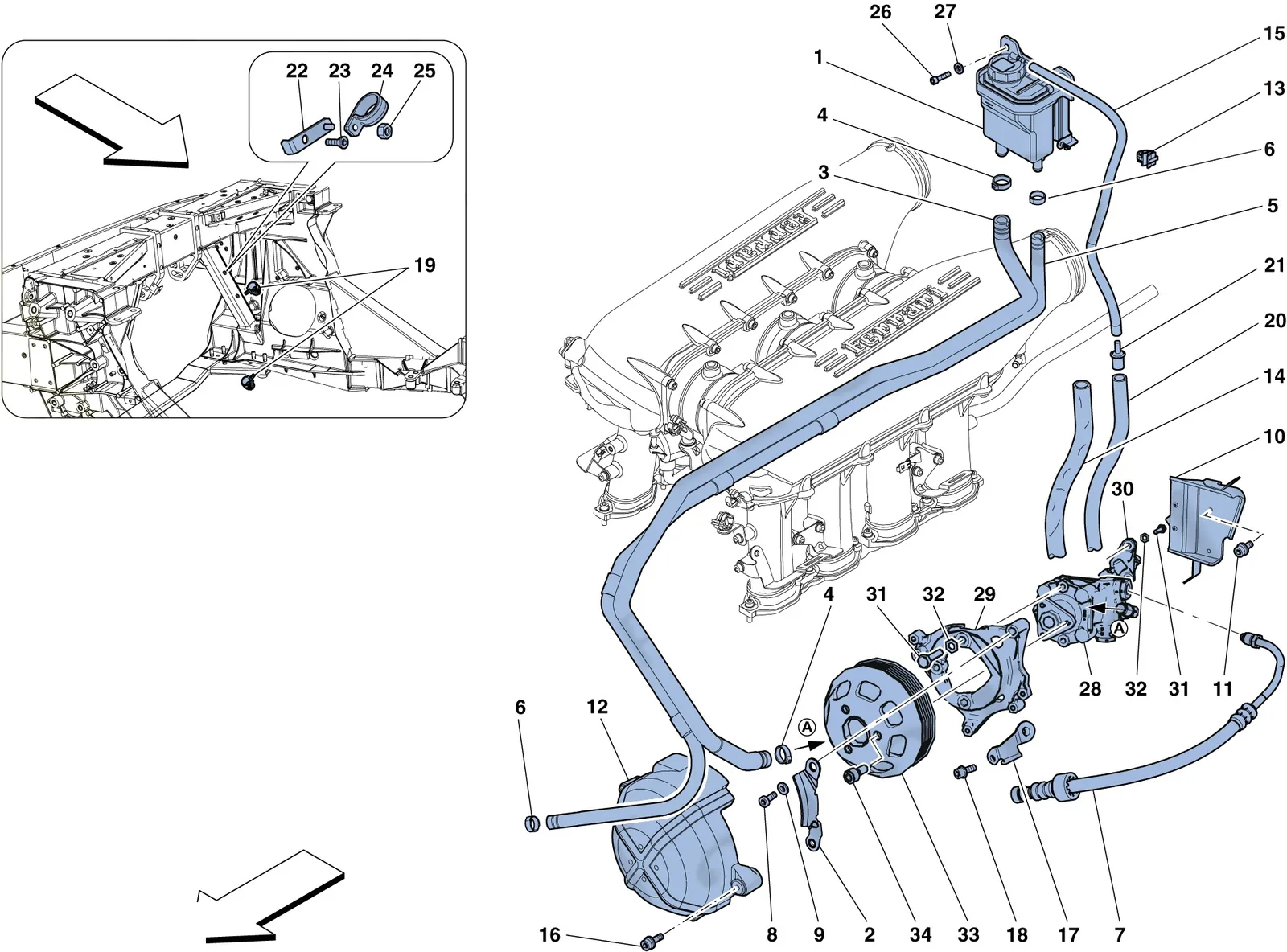

Ferrari 458 Speciale Aperta (Convertible) Power Steering Pump And Reservoir exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1292342Ferrari Power Steering Fluid Reservoir Complete - 292342$128.01Special order, ships in 7-14 days
2297133Ferrari Power Steering Pipe Guard - 297133$23.71Special order, ships in 7-14 days
3276459Ferrari Pipe From Reservoir To Power Steering Pump - 276459$123.48Available, ships in 3-6 days
413126370Ferrari Clamp - 13126370$2.38Available, ships in 3-6 days
5276460Ferrari Pipe From Underfloor To Reservoir - 276460$132.15Available, ships in 3-6 days
613126070Ferrari Collar - 13126070$1.99Available, ships in 3-6 days
7263052Ferrari Delivery Pipe - 263052$293.71Special order, ships in 7-14 days
8231629Ferrari Allen Screw M8 x 30 TCEI - 231629$1.15Available, ships in 3-6 days
8285494Ferrari Screw 8x50 - 285494$1.99Available, ships in 3-6 days
814306824Ferrari Bolt M8 x 45 TCEI - 14306824$1.04Available, ships in 3-6 days
911193874Ferrari Washer D.8.4-16x1.4 - 11193874$0.12Available, ships in 3-6 days
10262828Ferrari Heat Shield - 262828$318.19Special order, ships in 7-14 days
1114305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
11231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
12303519Ferrari Soundproofing Cover - 303519$881.17Special order, ships in 7-14 days
13204774Ferrari Spring Clip - 204774$0.96Special order, ships in 7-14 days
14278362Ferrari Sheath - 278362$44.03Available, ships in 3-6 days
15277512Ferrari Tube - 277512$16.87Special order, ships in 7-14 days
16231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
17259135Ferrari Power Steering Pump Pipe Bracket - 259135$14.66Special order, ships in 7-14 days
18233600Ferrari/Maserati Screw - 233600$1.98In stock
19157386Ferrari Cable Clip - 157386$0.33Available, ships in 3-6 days
20277185Ferrari Oil Breather Pipe From Regulator - 277185$78.30Special order, ships in 7-14 days
21222606Ferrari Breather Pipe Union LHD - 222606$31.99Special order, ships in 7-14 days
22278083Ferrari Plate - 278083$29.34Available, ships in 3-6 days
23282385Ferrari Screw - 282385$0.82Available, ships in 3-6 days
2410441990Ferrari P Clip Bracket With Sheath - 10441990$1.42Available, ships in 3-6 days
2514040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
26231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
2712647704Ferrari Washer - 12647704$0.17Special order, ships in 7-14 days
28277566Ferrari Power Steering Pump - 277566$1,816.58Special order, ships in 7-14 days
29261948Ferrari Front Power Steering Pump Mount - 261948$2,144.70Special order, ships in 7-14 days
30252563Ferrari Rear Power Steering Pump Mount - 252563$212.92Special order, ships in 7-14 days
3116043824Ferrari Bolt M8 x 30 - 16043824$0.86Available, ships in 3-6 days
33243460Ferrari Hydraulic Pump Pulley - 243460$489.54Special order, ships in 7-14 days
34231627Ferrari Screw M8 x 16 - 231627$1.25Available, ships in 3-6 days
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
228142Ferrari Clamp 20.2-22.8x9.2 - 228142SupersededOrder 13126070 instead
13127070Ferrari Collar - 13127070SupersededOrder 13126070 instead
199617Ferrari Power Steering Fluid Reservoir Complete - 199617SupersededOrder 292342 instead
233605Ferrari Power Steering Fluid Reservoir Complete - 233605SupersededOrder 292342 instead
277696Ferrari Power Steering Fluid Reservoir Complete - 277696SupersededOrder 292342 instead
280021Ferrari Power Steering Fluid Reservoir Complete - 280021SupersededOrder 292342 instead
124347Ferrari Rubber Pipe - 124347SupersededOrder 277185 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
261916Ferrari Soundproofing Cover - 261916SupersededOrder 303519 instead

All 458 Speciale Aperta (Convertible) diagrams
