Ferrari 458 Speciale Aperta (Convertible) — Ac System - Freon (diagram 045)

Exploded view of the ac system - freon on the Ferrari 458 Speciale Aperta (Convertible), with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

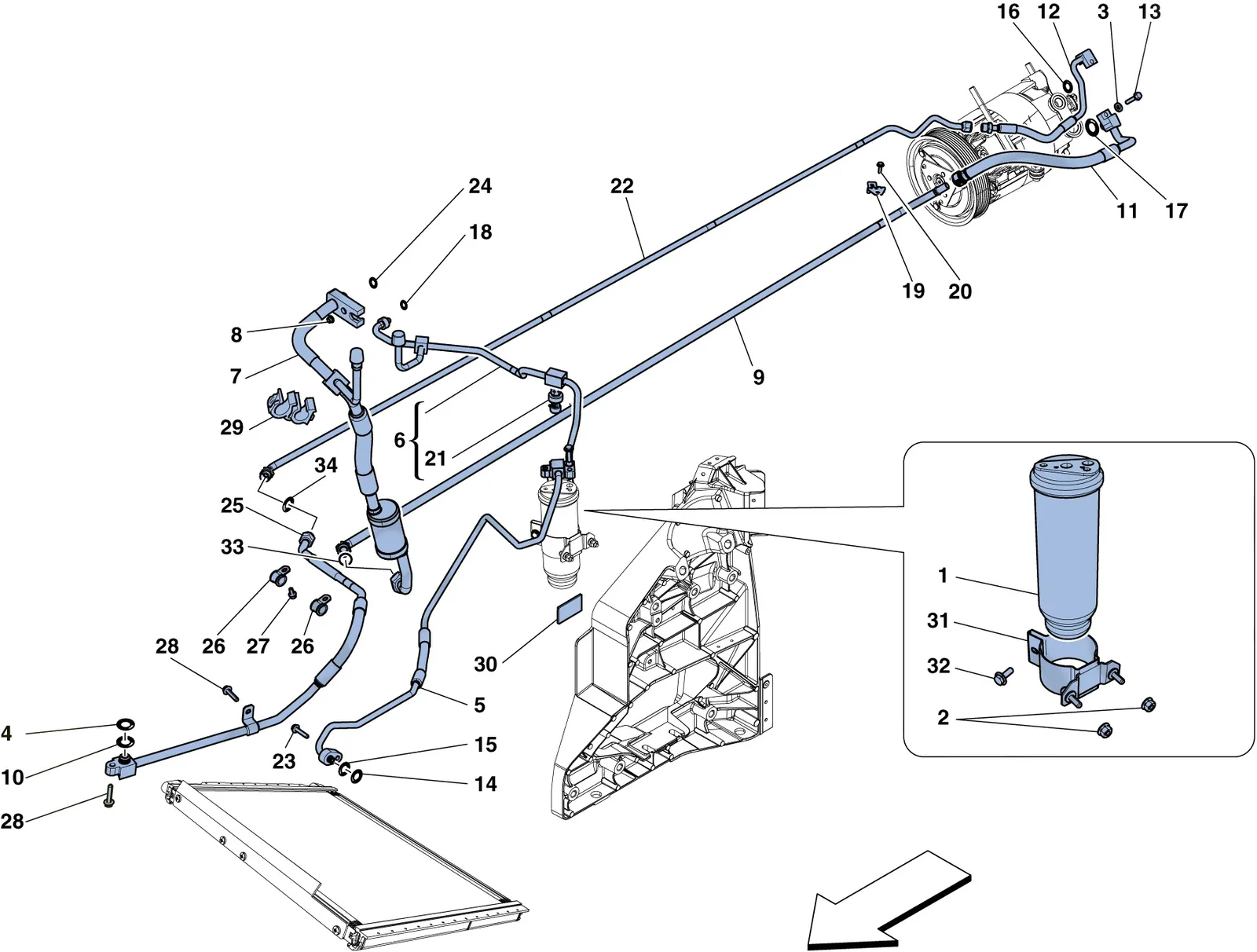

Ferrari 458 Speciale Aperta (Convertible) Ac System - Freon exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
167085100Ferrari/Maserati Dehydrating Filter - 67085100$73.54In stock
214040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
311198074Ferrari/Maserati Washer - 11198074$0.14In stock
468392700Ferrari O-Ring - 68392700$10.33Available, ships in 3-6 days
582924000Ferrari Pipe From Condenser To Dehydrator Filter - 82924000$832.22Special order, ships in 7-14 days
582886700Ferrari Pipe From Condenser To Dehydrator Filter - 82886700$416.09Special order, ships in 7-14 days
685075800Ferrari HVAC Filter Pipe - 85075800$758.79Special order, ships in 7-14 days
683556400Ferrari HVAC Filter Pipe - 83556400$1,150.42Special order, ships in 7-14 days
783193900Ferrari HVAC Pipe - Underfloor - 83193900$783.26Special order, ships in 7-14 days
783208200Ferrari HVAC Pipe - Underfloor - 83208200$1,003.57Special order, ships in 7-14 days
814040711Ferrari Nut M8 - 14040711$0.79Available, ships in 3-6 days
983194000Ferrari Gas Return Pipe - 83194000$416.09Special order, ships in 7-14 days
1066309700Ferrari O-Ring - 66309700$10.40Available, ships in 3-6 days
1182890400Ferrari Pipe From Underfloor - 82890400$979.09Special order, ships in 7-14 days
1283330500Ferrari Pipe From Compressor - 83330500$758.79Special order, ships in 7-14 days
1314306724Ferrari Screw 8x40 - 14306724$1.82Available, ships in 3-6 days
1468392100Ferrari O-Ring - 68392100$3.90Available, ships in 3-6 days
1568392000Ferrari O-Ring - 68392000$6.15Available, ships in 3-6 days
1667085400Ferrari O Ring - 67085400$15.50In stock
1782068100Ferrari O-Ring Washer - 82068100$17.99In stock
1767085300Ferrari O-Ring D25 - 67085300SupersededOrder 82068100 instead
1882068300Ferrari O-Ring - 82068300$73.94Available, ships in 3-6 days
1982949000Ferrari Bracket - 82949000$18.57Special order, ships in 7-14 days
2011612726Ferrari Screw - 11612726$1.42Special order, ships in 7-14 days
2180552400Ferrari Pressure Transducer - 80552400$137.04Special order, ships in 7-14 days
2282913700Ferrari Underbody Gas Delivery Pipe to Condenser - 82913700$293.71Special order, ships in 7-14 days
2313837017Ferrari Screw 6X30 - 13837017$7.19Special order, ships in 7-14 days
2582913600Ferrari Gas Delivery Pipe To Condenser - 82913600$391.61Special order, ships in 7-14 days
2610441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
27231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
2982329900Ferrari Clip - 82329900$1.92Special order, ships in 7-14 days
30255515Ferrari Zagato Seal - 255515$3.39Available, ships in 3-6 days
3084069800Ferrari Body Bracket Connection - 84069800$4.47Available, ships in 3-6 days
3182155900Ferrari Dehydrator Filter Bracket LHD - 82155900$71.38Special order, ships in 7-14 days
3182886600Ferrari Dehydrator Filter Bracket RHD - 82886600$88.61Special order, ships in 7-14 days
3211625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
3366309500Ferrari O-Ring - 66309500$17.40Available, ships in 3-6 days
3466309400Ferrari O-Ring - 66309400$34.79Available, ships in 3-6 days
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
82886800Ferrari HVAC Filter Pipe - 82886800SupersededOrder 83556400 instead
82890200Ferrari HVAC Filter Pipe - 82890200SupersededOrder 85075800 instead
82890000Ferrari Pipe From Compressor - 82890000SupersededOrder 83330500 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
