Ferrari 488 GTB — Ac System Compressor (diagram 047)

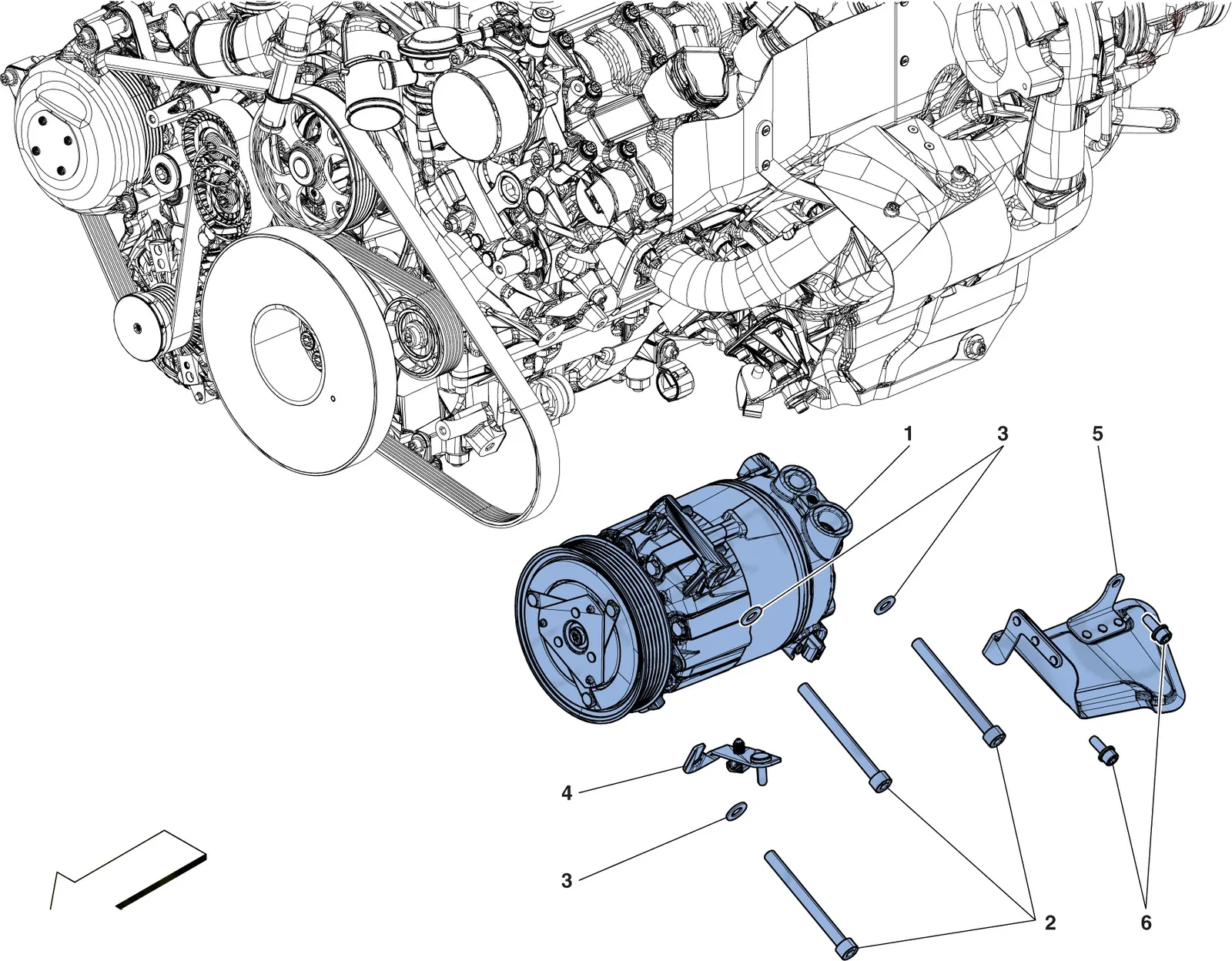

Exploded view of the ac system compressor on the Ferrari 488 GTB, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 311534 | Ferrari Air Conditioning Compressor - 311534 | Superseded | Order 802715 instead |
| 2 | 14307224 | Ferrari Screw M8 x 85 - 14307224 | $1.17 | Available, ships in 3-6 days |
| 3 | 11193874 | Ferrari Washer D.8.4-16x1.4 - 11193874 | $0.12 | Available, ships in 3-6 days |
| 4 | 315403 | Ferrari Bracket Complete With Cable Fastening Clip - 315403 | $44.29 | Special order, ships in 7-14 days |
| 5 | 312441 | Ferrari Air Con Compressor Heat Shield - 312441 | $164.95 | Special order, ships in 7-14 days |
| 6 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 333331 | Ferrari Compressore Delphi Controll - 333331 | Superseded | Order 802715 instead | |
| 802715 | Ferrari Compressore Delphi Controll - 802715 | $1,750.91 | Special order, ships in 7-14 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
