Ferrari 488 Pista — [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES (diagram 0025)
Exploded view of the [engine] - b.20 - emissions control system pipes and valves on the Ferrari 488 Pista, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

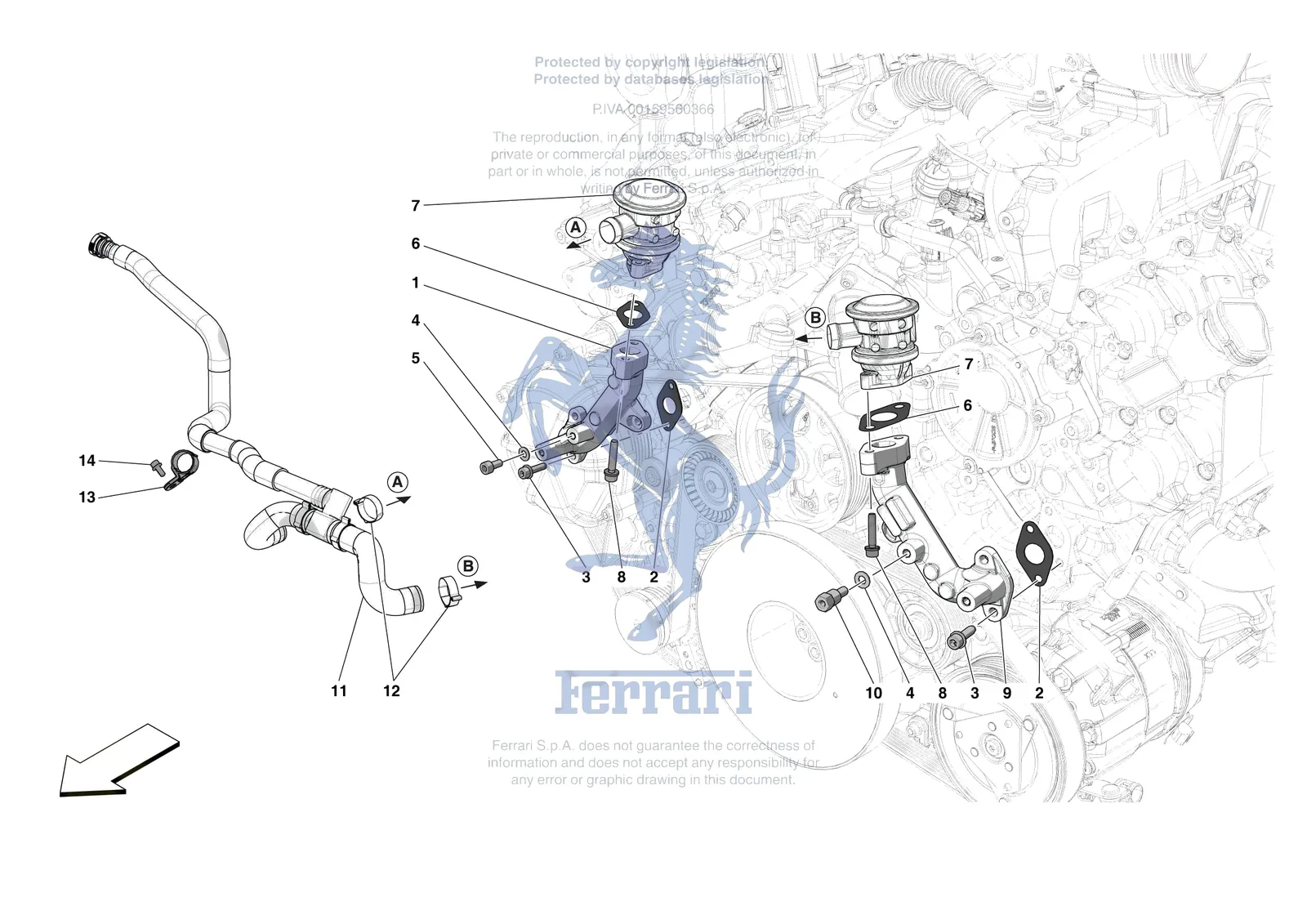

![Ferrari 488 Pista [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/488-pista/0025.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 260007 | Ferrari Stud Bolt 6X24 H45M6X10 H1 - 260007 | $15.39 | Special order, ships in 7-14 days | |
| 1 | 314332 | Ferrari RH Mounting - 314332 | $206.81 | Special order, ships in 7-14 days |
| 2 | 186781 | Ferrari/Maserati Secondary Air Gasket - 186781 | $6.05 | In stock |
| 3 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 4 | 10297760 | Ferrari/Maserati Copper Washer - 10297760 | $0.42 | In stock |
| 5 | 14305124 | Ferrari Screw M6 x 12 - 14305124 | $0.79 | Available, ships in 3-6 days |
| 6 | 781376 | Ferrari Gasket - 781376 | $6.32 | Special order, ships in 7-14 days |
| 7 | 284235 | Ferrari Secondary Air System Valve - 284235 | $417.97 | Available, ships in 3-6 days |
| 8 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 9 | 314333 | Ferrari LH Mounting - 314333 | $206.81 | Special order, ships in 7-14 days |
| 10 | 232777 | Ferrari Stud Bolt M6x1 H15.5 M6 - 232777 | $14.99 | Special order, ships in 7-14 days |
| 11 | 316978 | Ferrari Engine Side Secondary Air System Pipe - 316978 | $440.56 | Special order, ships in 7-14 days |
| 12 | 13128970 | Ferrari Collar D.25.5B - 13128970 | $3.26 | Special order, ships in 7-14 days |
| 13 | 244225 | Ferrari Clip - 244225 | $9.62 | Special order, ships in 7-14 days |
| 14 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
