Ferrari 488 Pista — [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES (diagram 0044)

Exploded view of the [gearbox] - c.03.02 - gearbox oil heat exchanger and pipes - heat exchanger and rear pipes on the Ferrari 488 Pista, with 63 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

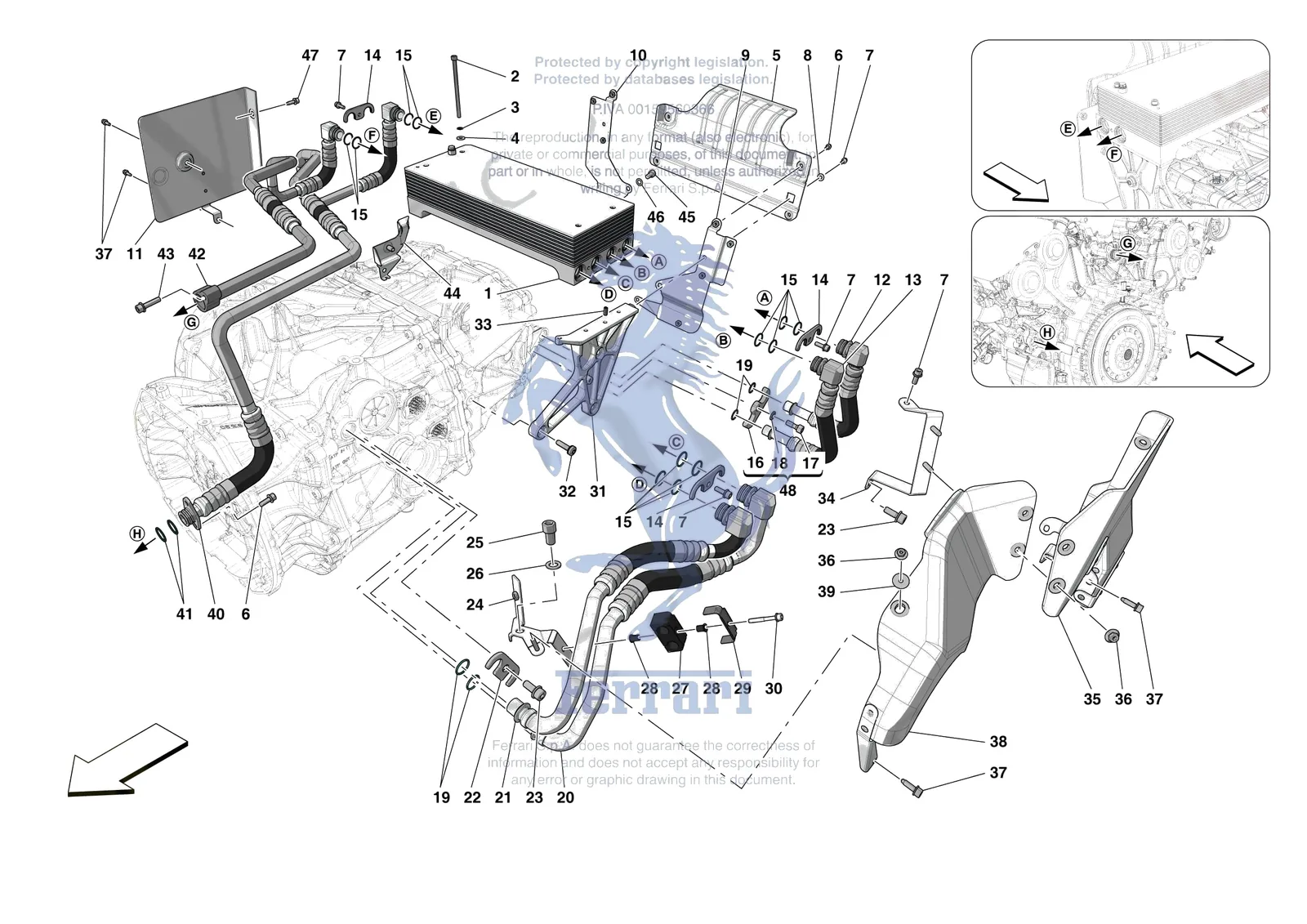

Ferrari 488 Pista [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
236480Ferrari Fork Without Captive Screw - 236480SupersededOrder 253631 instead
315659Ferrari LH Single Oil Heat Exchanger Shields Mounting Bracket - 315659SupersededOrder 323942 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
318314Ferrari Oil Delivery Pipe - 318314$465.04Special order, ships in 7-14 days
318316Ferrari Oil Delivery Pipe - 318316$489.54Special order, ships in 7-14 days
318315Ferrari Oil Return Pipe - 318315$465.04Special order, ships in 7-14 days
321953Ferrari Oil Return Pipe - 321953$514.01Special order, ships in 7-14 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
318318Ferrari Water Delivery Pipe - 318318SupersededOrder 330917 instead
318319Ferrari Water Return Pipe - 318319SupersededOrder 330934 instead
1309825Ferrari Heat Exchanger - 309825$8,120.75Special order, ships in 7-14 days
214300224Ferrari Allen Screw - 14300224$1.99Available, ships in 3-6 days
312604279Ferrari Washer - 12604279$0.12Available, ships in 3-6 days
312604274Ferrari Wavy Washer 6mm - 12604274$0.12Available, ships in 3-6 days
412646624Ferrari Washer 6.15-15x1.5 - 12646624$0.40Available, ships in 3-6 days
5839419Ferrari Rear Single Oil Heat Exchang - 839419$416.09Special order, ships in 7-14 days
6248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
7231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
814498824Ferrari Washer D. 6.4 - 16.3 - 14498824$0.27Available, ships in 3-6 days
9318475Ferrari Gearbox Oil Pipes Shield Bracket - 318475$85.64Special order, ships in 7-14 days
10316549Ferrari Water Pipe Shield Bracket - 316549$75.86Special order, ships in 7-14 days
11315655Ferrari RH Single Oil Heat Exchanger - 315655$173.76Special order, ships in 7-14 days
12330914Ferrari Oil Return Pipe - 330914$416.09Special order, ships in 7-14 days
13330913Ferrari Oil Delivery Pipe - 330913$440.56Special order, ships in 7-14 days
14309168Ferrari Fork - 309168$46.75Special order, ships in 7-14 days
15166656Ferrari O-Ring - 166656$0.92Special order, ships in 7-14 days
16253632Ferrari Fork - 253632SupersededOrder 253631 instead
17253465Ferrari Screw - 253465$65.24Special order, ships in 7-14 days
1811198074Ferrari/Maserati Washer - 11198074$0.14In stock
19254644Ferrari O-Ring Gasket - 254644$0.77Available, ships in 3-6 days
20330915Ferrari Oil Delivery Pipe - 330915$440.56Special order, ships in 7-14 days
21330916Ferrari Oil Return Pipe - 330916$489.54Special order, ships in 7-14 days
22287096Ferrari Fork - 287096$142.79Special order, ships in 7-14 days
23248471Ferrari Screw 8x20 - 248471$2.07Available, ships in 3-6 days
24314654Ferrari Oil Pipe Mounting Bracket - 314654$61.52Special order, ships in 7-14 days
2514360524Ferrari Screw 12X1.25X20 - 14360524$3.03Special order, ships in 7-14 days
26127498Ferrari Spring Washer 12mm - 127498$0.27Available, ships in 3-6 days
27243397Ferrari Pillory Block - 243397$29.52Available, ships in 3-6 days
28243399Ferrari Bushing - 243399$1.44Special order, ships in 7-14 days
29243398Ferrari Plate - 243398$21.60Special order, ships in 7-14 days
30231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
31315652Ferrari LH Bracket - 315652$269.23Available, ships in 3-6 days
31315653Ferrari RH Bracket - 315653$269.23Special order, ships in 7-14 days
32216576Ferrari Screw 8X30 - 216576$1.42Available, ships in 3-6 days
3314603370Ferrari Spring Pin - 14603370$0.38Special order, ships in 7-14 days
34323942Ferrari LH Single Oil Heat Exchanger Shields Mounting Bracket - 323942$61.16Special order, ships in 7-14 days
35814942Ferrari LH Single Oil Heat Exchanger - 814942$514.01Special order, ships in 7-14 days
3614039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
3711568124Ferrari Screw M6 x 20 TCE - 11568124$1.78Available, ships in 3-6 days
38322829Ferrari LH Single Oil Heat Exchanger - 322829$344.69Special order, ships in 7-14 days
3912648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
40330917Ferrari Water Delivery Pipe - 330917$881.17Special order, ships in 7-14 days
41205416Ferrari Gasket - 205416$0.82Special order, ships in 7-14 days
42330934Ferrari Water Return Pipe - 330934$611.91Special order, ships in 7-14 days
43231620Ferrari/Maserati Screw - 231620$0.58In stock
44315654Ferrari Water Pipe Mounting Bracket - 315654$88.09Special order, ships in 7-14 days
4514360024Ferrari Allen Screw - 14360024$1.46Available, ships in 3-6 days
4612604574Ferrari Washer - 12604574$0.13Available, ships in 3-6 days
4714305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
47231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
48253631Ferrari Fork Without Captive Screw - 253631$83.68Special order, ships in 7-14 days

All 488 Pista diagrams
