Ferrari 488 Pista — [MECHANICAL SYSTEM] - D.05 - TURBOCHARGING SYSTEM ADJUSTMENTS (diagram 0053)

Exploded view of the [mechanical system] - d.05 - turbocharging system adjustments on the Ferrari 488 Pista, with 58 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

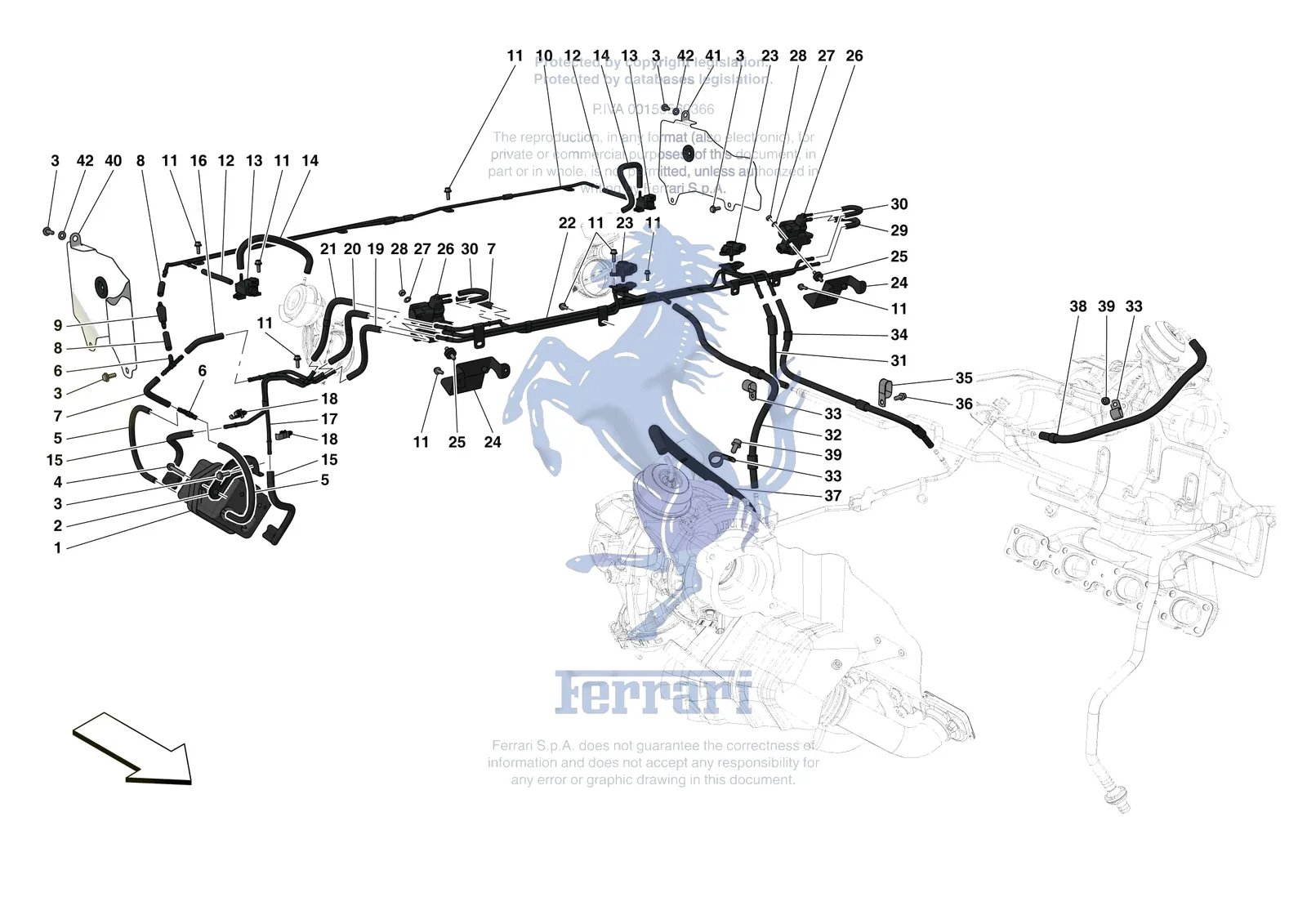

Ferrari 488 Pista [MECHANICAL SYSTEM] - D.05 - TURBOCHARGING SYSTEM ADJUSTMENTS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
261684Ferrari Rubber Pipe D. 3.5-8x95 - 261684$5.63Special order, ships in 7-14 days
321334Ferrari Rubber Pipe D. 5-12x250 - 321334SupersededOrder 299144 instead
321331Ferrari Rubber Pipe D.5-12x170 - 321331SupersededOrder 307042 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
1329914Ferrari Vacuum Accumulator Tank - 329914$78.76Special order, ships in 7-14 days
2315188Ferrari Vacuum Tank Fastener Bracket - 315188$36.92Special order, ships in 7-14 days
311625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
4231625Ferrari Screw 6x50 - 231625$1.25Available, ships in 3-6 days
5299144Ferrari Rubber Pipe - 299144$27.06Special order, ships in 7-14 days
6305769Ferrari T Union - 305769$4.35Special order, ships in 7-14 days
7314923Ferrari Rubber Pipe - 314923$10.56Special order, ships in 7-14 days
8340494Ferrari Rubber Pipe - 340494$8.84Special order, ships in 7-14 days
9295349Ferrari Non Return Valve - 295349$76.19Special order, ships in 7-14 days
10340487Ferrari Compl. Rigid Pipe - 340487$566.30Special order, ships in 7-14 days
11256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
12321333Ferrari Rubber Pipe D.4-8.5x95 - 321333$10.06Special order, ships in 7-14 days
13315769Ferrari/Maserati Solenoid Valve - 315769$75.58In stock
14148204Ferrari Silicone Vacuum Pipe 21cm - 148204$36.69Available, ships in 3-6 days
14MC4912/1Ferrari Vacuum Hose 3mm ID x 10mm OD Per Metre - MC4912/1$52.82Available, ships in 3-6 days
15318543Ferrari Rubber Pipe - 318543$41.82Special order, ships in 7-14 days
16302194Ferrari Rubber Hose - 302194$13.01Special order, ships in 7-14 days
17334351Ferrari Compl. Rigid Pipe - 334351$270.83Special order, ships in 7-14 days
18303873Ferrari Clip D.6 - 303873$3.47Available, ships in 3-6 days
19307042Ferrari Rubber Pipe - 307042$15.98Special order, ships in 7-14 days
20330004Ferrari Rubber Pipe - 330004$34.44Special order, ships in 7-14 days
21330678Ferrari Rubber Pipe - 330678$34.44Special order, ships in 7-14 days
22335044Ferrari Compl. Rigid Pipe - 335044$1,058.75Special order, ships in 7-14 days
23309966Ferrari Air Pressure Sensor - 309966$151.00Special order, ships in 7-14 days
24331230Ferrari Solenoid Valve Mounting Brac - 331230$123.09Special order, ships in 7-14 days
25331701Ferrari Cylindrical Bushing With Scr - 331701$31.99Special order, ships in 7-14 days
26316062Ferrari Modulator Solenoid Valve - 316062$184.65Available, ships in 3-6 days
2712601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
2810725914Ferrari Nut M6 x 4 - 10725914$0.19Available, ships in 3-6 days
29314924Ferrari Rubber Pipe - 314924$11.31Special order, ships in 7-14 days
30323549Ferrari Rubber Pipe - 323549$16.22Special order, ships in 7-14 days
31865481Ferrari Compl. Rubber Pipe - 865481$123.09Special order, ships in 7-14 days
31818719Ferrari Rubber Pipe - 818719$61.16Special order, ships in 7-14 days
32797494Ferrari Rubber Pipe - 797494$122.36Special order, ships in 7-14 days
32865486Ferrari Rubber Pipe - 865486$211.73Special order, ships in 7-14 days
3310418801Ferrari Clamp 16mm - 10418801$1.04Special order, ships in 7-14 days
34797528Ferrari Rubber Pipe - 797528$137.04Special order, ships in 7-14 days
34865500Ferrari Rubber Pipe - 865500$231.42Special order, ships in 7-14 days
3510116401Ferrari Bracket P Clip - 10116401$8.05Special order, ships in 7-14 days
36248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
37842975Ferrari Rubber Pipe - 842975$270.83Special order, ships in 7-14 days
38329973Ferrari Rubber Pipe - 329973$189.56Special order, ships in 7-14 days
39233600Ferrari/Maserati Screw - 233600$1.98In stock
40781756Ferrari Compl. RH Tail Light Heat Sh - 781756$100.34Special order, ships in 7-14 days
41781758Ferrari Compl. LH Tail Light Heat Sh - 781758$100.34Special order, ships in 7-14 days
4212644404Ferrari Washer - 12644404SupersededOrder 12644424 instead
4212644424Ferrari Washer 6.15-15 x 1 - 12644424$0.12Available, ships in 3-6 days

All 488 Pista diagrams
