Ferrari 488 Pista — [VEHICLE TRIM] - E.29.01 - DOORS - TRIM (diagram 0128)

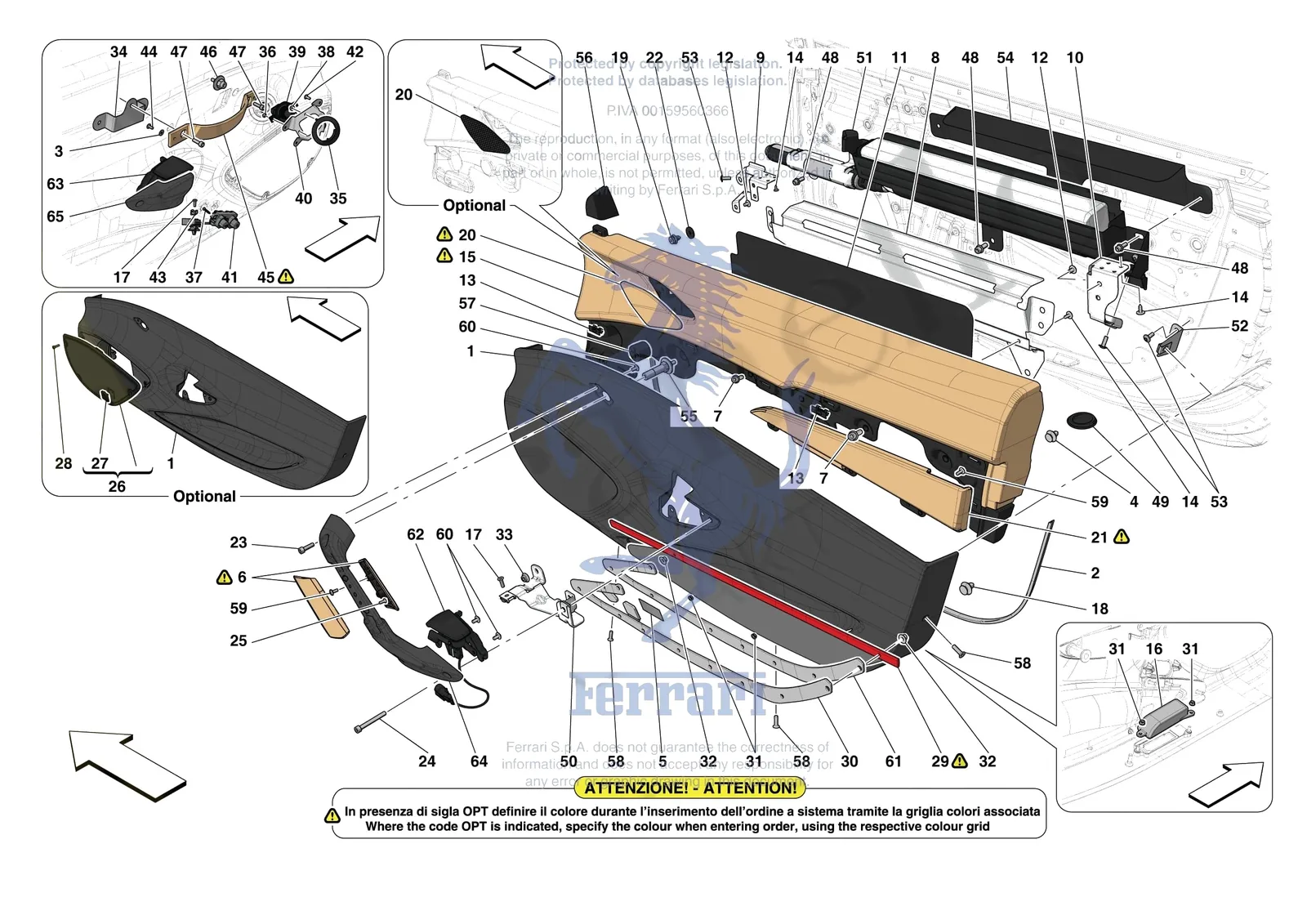

Exploded view of the [vehicle trim] - e.29.01 - doors - trim on the Ferrari 488 Pista, with 156 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 488 Pista [VEHICLE TRIM] - E.29.01 - DOORS - TRIM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
87940800Ferrari Flanged Nut - 87940800SupersededOrder 14039414 instead
87405300Ferrari LH Airbag Complete - 87405300SupersededOrder 87805500 instead
86916412Ferrari Lh Upper Door Car - 86916412$856.69Special order, ships in 7-14 days
14039411Ferrari Nut - 14039411SupersededOrder 14039414 instead
87405500Ferrari RH Airbag Complete - 87405500SupersededOrder 87805700 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
290589Ferrari Screw 4x8 - 290589SupersededOrder 309629 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
1787665Ferrari LH Lower Door Panel Substruc - 787665$15,884.88Contact us to order
1787897Ferrari LH Lower Door Panel Substruc - 787897$16,090.02Contact us to order
1793656Ferrari LH Lower Door Panel Substruc - 793656$16,999.19Contact us to order
1793833Ferrari LH Lower Door Panel Substruc - 793833$16,090.02Contact us to order
1796057Ferrari LH Lower Door Panel Substruc - 796057$17,824.43Contact us to order
1796068Ferrari LH Lower Door Panel Substruc - 796068$17,824.43Contact us to order
1796080Ferrari LH Lower Door Panel Substruc - 796080$17,015.51Contact us to order
1796093Ferrari LH Lower Door Panel Substruc - 796093$16,810.35Contact us to order
1796095Ferrari LH Lower Door Panel Substruc - 796095$17,015.51Contact us to order
1796117Ferrari LH Lower Door Panel Substruc - 796117$17,623.95Contact us to order
170006313Ferrari LH LOWER DOOR PANEL SUBSTRUCTURE - 70006313Price on requestContact us for price and availability
170006314Ferrari LH LOWER DOOR PANEL SUBSTRUCTURE - 70006314Price on requestContact us for price and availability
170006315Ferrari LH LOWER DOOR PANEL SUBSTRUCTURE - 70006315Price on requestContact us for price and availability
170006316Ferrari LH LOWER DOOR PANEL SUBSTRUCTURE - 70006316Price on requestContact us for price and availability
170006318Ferrari LH LOWER DOOR PANEL SUBSTRUCTURE - 70006318Price on requestContact us for price and availability
1751848Ferrari LH LOWER DOOR PANEL SUBSTRUCTURE - 751848$15,187.83Contact us to order
1759082Ferrari LH LOWER DOOR PANEL SUBSTRUCTURE - 759082$15,390.65Contact us to order
170006317Ferrari Oss.Pan.Por.Inf.Sx Hifi Car. - 70006317$16,225.22Contact us to order
170006309Ferrari RH Lower Door Panel Substruc - 70006309$22,606.62Contact us to order
170006311Ferrari RH Lower Door Panel Substruc - 70006311$18,153.11Contact us to order
1759051Ferrari RH Lower Door Panel Substruc - 759051$16,798.71Contact us to order
1759086Ferrari RH Lower Door Panel Substruc - 759086$16,999.19Contact us to order
1788077Ferrari RH Lower Door Panel Substruc - 788077$17,609.97Contact us to order
1788172Ferrari RH Lower Door Panel Substruc - 788172$17,812.79Contact us to order
1793624Ferrari RH Lower Door Panel Substruc - 793624$15,378.99Contact us to order
1793644Ferrari RH Lower Door Panel Substruc - 793644$17,812.79Contact us to order
1798321Ferrari RH Lower Door Panel Substruc - 798321$15,390.65Contact us to order
1798337Ferrari RH Lower Door Panel Substruc - 798337$16,101.68Contact us to order
1798368Ferrari RH Lower Door Panel Substruc - 798368$15,898.86Contact us to order
1798403Ferrari RH Lower Door Panel Substruc - 798403$16,101.68Contact us to order
1798407Ferrari RH Lower Door Panel Substruc - 798407$15,187.83Contact us to order
1798413Ferrari RH Lower Door Panel Substruc - 798413$15,390.65Contact us to order
170006307Ferrari RH LOWER DOOR PANEL SUBSTRUCTURE - 70006307Price on requestContact us for price and availability
170006308Ferrari RH LOWER DOOR PANEL SUBSTRUCTURE - 70006308Price on requestContact us for price and availability
170006310Ferrari RH LOWER DOOR PANEL SUBSTRUCTURE - 70006310Price on requestContact us for price and availability
170006312Ferrari RH LOWER DOOR PANEL SUBSTRUCTURE - 70006312Price on requestContact us for price and availability
2752171Ferrari Door Panel Jamb Seal - 752171$65.63Special order, ships in 7-14 days
314446924Ferrari Washer - 14446924$0.54Available, ships in 3-6 days
466092400Ferrari Trim Clip - 66092400$0.25In stock
5179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
6921660Ferrari Grab Handle Grip Kit - 921660$979.09Special order, ships in 7-14 days
6921666Ferrari GRAB HANDLE GRIP KIT - 921666Price on requestContact us for price and availability
6921667Ferrari GRAB HANDLE GRIP KIT - 921667Price on requestContact us for price and availability
6921668Ferrari Grab Handle Grip Kit - 921668$930.12Special order, ships in 7-14 days
7231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
887820200Ferrari LH Takata Airbag Bracket - 87820200$467.80Special order, ships in 7-14 days
887820900Ferrari RH Takata Airbag Bracket - 87820900$467.80Special order, ships in 7-14 days
987209700Ferrari Front LH Shelf Reinforcement - 87209700$270.83Special order, ships in 7-14 days
987220400Ferrari Front RH Shelf Reinforcement - 87220400$270.83Special order, ships in 7-14 days
1086766500Ferrari Rear LH Shelf Reinforcement - 86766500$194.48Special order, ships in 7-14 days
1086766700Ferrari Rear RH Shelf Reinforcement - 86766700$194.48Special order, ships in 7-14 days
1186764800Ferrari Foil Flap - 86764800$443.17Special order, ships in 7-14 days
1285691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
1368700200Ferrari Fixing Clip - 68700200$10.68Special order, ships in 7-14 days
1468176600Ferrari Screw - 68176600$12.23Special order, ships in 7-14 days
15751676Ferrari Compl. Upper LH Door Panel - 751676$9,182.62Special order, ships in 7-14 days
15787044Ferrari Compl. Upper LH Door Panel - 787044$6,974.97Special order, ships in 7-14 days
15766795Ferrari Compl. Upper RH Door Panel - 766795$9,182.62Special order, ships in 7-14 days
15787065Ferrari Compl. Upper RH Door Panel - 787065$6,974.97Special order, ships in 7-14 days
16839896Ferrari Light Cover - 839896$9.81Special order, ships in 7-14 days
1786077300Ferrari Screw TSEI M5 x 16 - 86077300$1.23Special order, ships in 7-14 days
1882672700Ferrari Fixing Clip - 82672700$1.67Available, ships in 3-6 days
1986004700Ferrari Clip - 86004700$1.44Special order, ships in 7-14 days
20751678Ferrari Compl. LH Tweeter Cover Pane - 751678$587.44Special order, ships in 7-14 days
20787047Ferrari Compl. LH Tweeter Cover Pane - 787047$587.44Special order, ships in 7-14 days
20766906Ferrari Compl. RH Tweeter Cover Pane - 766906$587.44Special order, ships in 7-14 days
20787067Ferrari Compl. RH Tweeter Cover Pane - 787067$587.44Special order, ships in 7-14 days
2087363700Ferrari LH Tweeter Surround - 87363700$3,042.21Special order, ships in 7-14 days
2087514000Ferrari LH Tweeter Surround - 87514000$204.34Special order, ships in 7-14 days
2087364300Ferrari RH Tweeter Surround - 87364300$3,042.21Special order, ships in 7-14 days
2087514200Ferrari RH Tweeter Surround - 87514200$204.34Special order, ships in 7-14 days
21753096Ferrari LH Upper Door Card - 753096$783.26Special order, ships in 7-14 days
2186916400Ferrari LH Upper Door Card - 86916400SupersededOrder 86916412 instead
2186917700Ferrari RH Upper Door Card - 86917700$861.77Special order, ships in 7-14 days
21767217Ferrari Upper RH Door Card - 767217$783.26Special order, ships in 7-14 days
2265841100Ferrari Black Foam Washer - Self Adhesive - 65841100$2.13Available, ships in 3-6 days
2314305327Ferrari Screw - 14305327$1.86Special order, ships in 7-14 days
2414306027Ferrari Screw - 14306027$1.71Special order, ships in 7-14 days
2514440121Ferrari Screw 4X12 - 14440121$0.50Available, ships in 3-6 days
26766474Ferrari Compl. LH Woofer Grille - 766474$440.56Special order, ships in 7-14 days
26766475Ferrari Compl. LH Woofer Grille - 766475$587.44Special order, ships in 7-14 days
26767345Ferrari Compl. RH Woofer Grille - 767345$440.56Special order, ships in 7-14 days
26767357Ferrari Compl. RH Woofer Grille - 767357$587.44Special order, ships in 7-14 days
2783198200Ferrari JBL Logo - 83198200$44.24Available, ships in 3-6 days
2813026126Ferrari Screw TCE M5 x 18 - 13026126$2.59Available, ships in 3-6 days
29752164Ferrari LH Door Pocket Mesh - 752164$342.66Special order, ships in 7-14 days
29821042Ferrari RH Door Pocket Mesh - 821042$440.56Special order, ships in 7-14 days
30752062Ferrari LH Door Pocket Mesh Fastener - 752062$129.70Special order, ships in 7-14 days
30790696Ferrari RH Door Pocket Mesh Fastener - 790696$154.18Special order, ships in 7-14 days
3114039414Ferrari Flanged Nut - 14039414$0.54Available, ships in 3-6 days
3214039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
3313832101Ferrari Flanged Nut M6 - 13832101$0.27Available, ships in 3-6 days
34798984Ferrari Bracket For Door Pull Straps - 798984$88.09Special order, ships in 7-14 days
3616082801Ferrari Screw - 16082801$0.06Special order, ships in 7-14 days
3715957304Ferrari Screw - 15957304Price on requestContact us for price and availability
3814227474Ferrari Motif Clips - 14227474$0.27Available, ships in 3-6 days
39809606Ferrari Door Mirror Control - 809606$489.54Available, ships in 3-6 days
40751849Ferrari MIRROR CONTROLS BRACKET - 751849$832.22Special order, ships in 7-14 days
40798584Ferrari Mirror Controls Bracket - 798584$1,028.04Special order, ships in 7-14 days
41316875Ferrari Bonnet / Fuel Release Control - 316875$660.87Available, ships in 3-6 days
42309629Ferrari Screw 4x8 - 309629$4.77Special order, ships in 7-14 days
4314197890Ferrari Captive Nut 5mm - 14197890$0.54Available, ships in 3-6 days
4488822200Ferrari Screw 4 x 10 - 88822200$1.30Special order, ships in 7-14 days
45744819Ferrari LH Front Door Pull Strap - 744819$465.04Special order, ships in 7-14 days
45787058Ferrari LH Front Door Pull Strap - 787058$489.54Special order, ships in 7-14 days
45798574Ferrari LH Front Door Pull Strap - 798574$440.56Special order, ships in 7-14 days
45798578Ferrari LH Front Door Pull Strap - 798578$489.54Special order, ships in 7-14 days
46798469Ferrari Spacer For Strap - 798469$19.34Special order, ships in 7-14 days
48248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
49276467Ferrari Cover - 276467$6.31Special order, ships in 7-14 days
50781788Ferrari LH Door Pull Handle Bracket - 781788$134.61Special order, ships in 7-14 days
50781789Ferrari RH Door Pull Handle Bracket - 781789$134.61Special order, ships in 7-14 days
5187805500Ferrari LH Airbag Complete - 87805500$1,647.38Special order, ships in 7-14 days
5187805700Ferrari RH Airbag Complete - 87805700$1,647.38Special order, ships in 7-14 days
52772090Ferrari Rear Panel Fastener Bracket - 772090$44.03Special order, ships in 7-14 days
5385833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
54767414Ferrari Foil Flap - 767414$98.32Special order, ships in 7-14 days
54824440Ferrari Foil Flap - 824440$98.46Special order, ships in 7-14 days
5587231500Ferrari Passenger Side Grab Handle Spacer - 87231500$41.55Special order, ships in 7-14 days
5686716600Ferrari LH Door Inner Corner Triangle Trim - 86716600$71.38Special order, ships in 7-14 days
5783888400Ferrari Door Alignment Foam Pad - 83888400$5.39Special order, ships in 7-14 days
5862797600Ferrari Allen Bolt C/Sunk M6 x 20 TSEI - 62797600$1.99Available, ships in 3-6 days
5965752800Ferrari Screw M4 x 10 TBEI - 65752800$4.12Available, ships in 3-6 days
6064460500Ferrari Screw M5 x 0.8 x 10 - 64460500$2.13Available, ships in 3-6 days
61821044Ferrari LH Door Pocket Mesh Plate Fo - 821044$97.88Special order, ships in 7-14 days
61821046Ferrari RH Door Pocket Mesh Plate Fo - 821046$97.88Special order, ships in 7-14 days
6270006319Ferrari RH Inner Door Opener - 70006319$7,378.27Special order, ships in 7-14 days
62782769Ferrari RH Inner Door Opener - 782769$2,237.94Special order, ships in 7-14 days
62788080Ferrari RH Inner Door Opener - 788080$2,331.20Special order, ships in 7-14 days
6370006320Ferrari LH Inner Door Opener - 70006320$7,378.27Special order, ships in 7-14 days
63782768Ferrari LH Inner Door Opener - 782768$2,237.94Special order, ships in 7-14 days
63787694Ferrari LH Inner Door Opener - 787694$2,331.20Special order, ships in 7-14 days
64788079Ferrari Ossat.Carb.Opaco Tiraporta P - 788079$4,918.84Special order, ships in 7-14 days
64796314Ferrari Ossat.Carb.Opaco Tiraporta P - 796314$4,918.84Special order, ships in 7-14 days
64759081Ferrari Ossat.Carb.Tiraporta Passegg - 759081$4,716.02Special order, ships in 7-14 days
64796285Ferrari Ossat.Carb.Tiraporta Passegg - 796285$4,716.02Special order, ships in 7-14 days
6470006321Ferrari Passenger Side Door Pull Sub - 70006321$12,875.27Contact us to order
6470006322Ferrari PASSENGER SIDE DOOR PULL SUBSTRUCTURE - 70006322Price on requestContact us for price and availability
6570006323Ferrari LH Handle Body Substructure - 70006323$10,227.00Contact us to order
65753104Ferrari Ossatura Corpo Maniglia Sx - 753104$2,809.08Special order, ships in 7-14 days
65787667Ferrari Ossatura Corpo Maniglia Sx C - 787667$2,909.34Special order, ships in 7-14 days
65798544Ferrari Ossatura Corpo Maniglia Sx G - 798544$2,809.08Special order, ships in 7-14 days
65798566Ferrari Ossatura Corpo Maniglia Sx G - 798566$2,909.34Special order, ships in 7-14 days
6570006324Ferrari RH HANDLE BODY SUBSTRUCTURE - 70006324Price on requestContact us for price and availability

All 488 Pista diagrams

Loading…
header Logo 3 (1)

120 Kremer Ave. Eatontown, NJ 07724
Corner of Highway 35 and Kremer Ave.
(Mile North of the Mall)

800-631-5589
info@awitalian.com

Mon – Fri 9-6
Sat, Sun closed

NOTE ABOUT IN/OUT OF STOCK

We always attempt to indicate when a part is out of stock. In the event that you order a part and we are currently out of stock, you will be notified within 24 business hours.

Please read our Shipping & Returns Policy for more information

By the same token, we have many parts or can get many parts that may not be found on our site. Please email or call with inquiries.

JOIN OUR MAILING LIST

Receive promotions directly in your email

WE ACCEPT
credit cards 03
TERMS, CONDITIONS, AND PRIVACY

Terms and Conditions & Privacy Policy AW Italian Auto Parts is a division of AW Imported Auto Parts and Service

© 1965 - 2026 • AW ITALIAN is an American Auto Part Dealer for Luxury Italian Vehicles • All Rights Reserved

Go to Top
