Ferrari 512 BB (Carburetor) — Air Intakes, Filters And Manifolds (diagram 008)

Exploded view of the air intakes, filters and manifolds on the Ferrari 512 BB (Carburetor), with 74 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

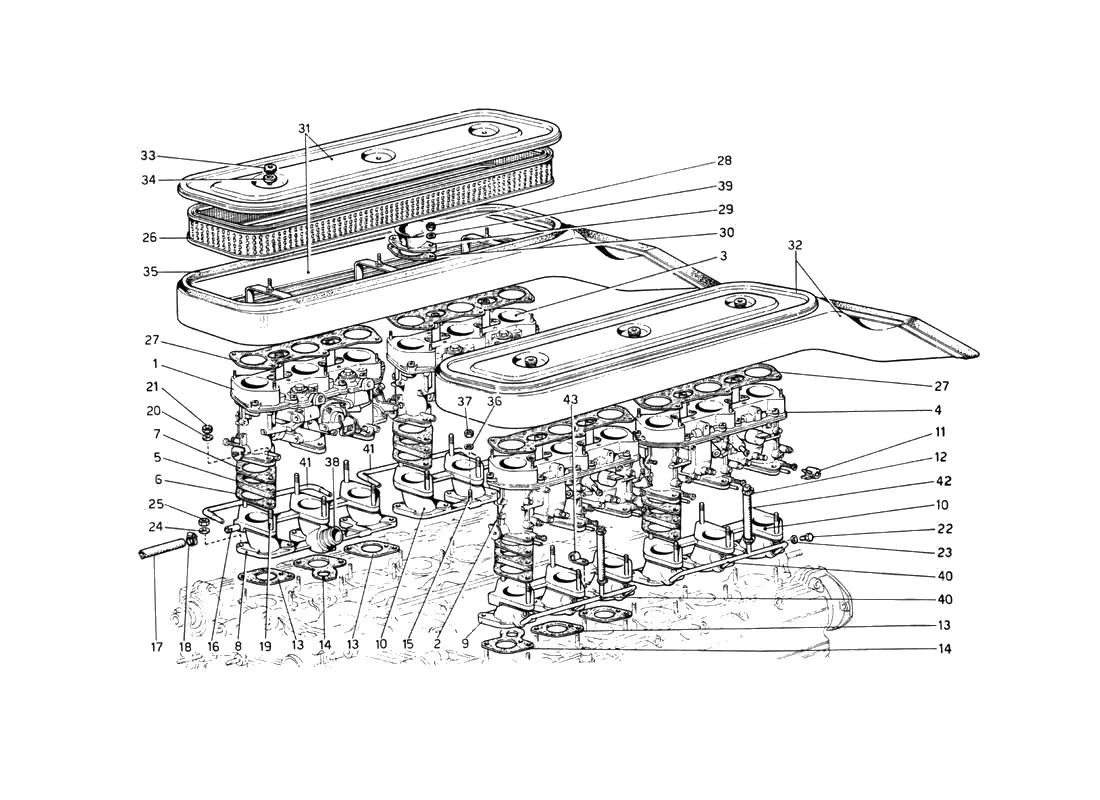

Ferrari 512 BB (Carburetor) Air Intakes, Filters And Manifolds exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1108629Ferrari Carburetor 40IF3CI/11 - 108629Price on requestContact us for price and availability
2108630Ferrari Carburetor 40IF3CI/9 - 108630Price on requestContact us for price and availability
3108631Ferrari Carburetor 40IF3CI/12 - 108631Price on requestContact us for price and availability
4108632Ferrari Carburetor 40IF3CI/10 - 108632Price on requestContact us for price and availability
5107168Ferrari Spacer - 107168$89.18Special order, ships in 7-14 days
6102884Ferrari Gasket - 102884$10.20Available, ships in 3-6 days
7102885Ferrari Gasket - 102885SupersededOrder 147636 instead
7147636Ferrari Gasket - 147636$3.89Available, ships in 3-6 days
8108594Ferrari RH Front Intake Manifold Complete - 108594Price on requestContact us for price and availability
8108597Ferrari RH Front Intake Manifold - 108597Price on requestContact us for price and availability
9108595Ferrari LH Front Intake Manifold Complete - 108595Price on requestContact us for price and availability
9108598Ferrari LH Front Intake Manifold - 108598Price on requestContact us for price and availability
10108596Ferrari Rear Intake Manifold Complete - 108596Price on requestContact us for price and availability
10108599Ferrari Rear Intake Manifold - 108599Price on requestContact us for price and availability
11111182Ferrari Anti Tamper Plug - 111182Price on requestContact us for price and availability
12157990Ferrari Hose Retaining Clip D. 7 - 11 x 5 - 157990$4.14Available, ships in 3-6 days
12102721Ferrari Clip - 102721SupersededOrder 157990 instead
13147687Ferrari Gasket - 147687$10.18Available, ships in 3-6 days
13108600Ferrari Gasket - 108600SupersededOrder 147687 instead
14147688Ferrari Gasket - 147688$12.00Available, ships in 3-6 days
14108601Ferrari Gasket - 108601SupersededOrder 147688 instead
1513516824Ferrari/Maserati Stud - 13516824$0.58In stock
1513516821Ferrari RH Threaded Stud - 13516821SupersededOrder 13543324 instead
16100610Ferrari Union - 100610$77.49Available, ships in 3-6 days
17110750Ferrari Rubber Hose - 110750Price on requestContact us for price and availability
18100507Ferrari Jubilee Clip - 100507SupersededOrder 13000390 instead
1813000390Ferrari Screw Collar 16-25mm - 13000390SupersededOrder 178052 instead
1913517021Ferrari Threaded Stud 8x12 Stem 25mm - 13517021$5.61Available, ships in 3-6 days
2011198074Ferrari/Maserati Washer - 11198074$0.14In stock
2011198071Ferrari Washer Beville 8mm - 11198071SupersededOrder 11198074 instead
2116100824Ferrari/Maserati Nut - 16100824$0.30In stock
2116100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
2210979421Ferrari Bolt - 10979421$1.59Special order, ships in 7-14 days
23103050Ferrari Gasket - 103050$3.64Available, ships in 3-6 days
26AW7512000BFerrari 512BB Filter Kit - AW7512000B$324.50In stock
26118492Ferrari 365/512 BB Air Filter - 118492$118.80In stock
26104838Ferrari Air Filter Element - 104838SupersededOrder 118492 instead
26108949Ferrari Air Filter Element - 108949$150.25Available, ships in 3-6 days
27105273Ferrari Gasket - 105273SupersededOrder 147682 instead
27147682Ferrari Gasket - 147682$19.20Available, ships in 3-6 days
28169180Ferrari Nyloc Nut M5 x 6.3 - 169180$0.31Available, ships in 3-6 days
28113647Ferrari Nyloc Nut - 113647$0.52Available, ships in 3-6 days
2812574111Ferrari Nyloc Nut - 12574111SupersededOrder 169180 instead
29106126Ferrari Inlet Trumpet - 106126Price on requestContact us for price and availability
30105275Ferrari Gasket - 105275SupersededOrder 147681 instead
30147681Ferrari Gasket - 147681$9.53Available, ships in 3-6 days
31109031Ferrari RH Air Box - 109031Price on requestContact us for price and availability
31113090Ferrari RH Air Box - 113090Price on requestContact us for price and availability
32109032Ferrari LH Air Box - 109032Price on requestContact us for price and availability
32113091Ferrari LH Air Box - 113091Price on requestContact us for price and availability
33104550Ferrari Air Box/Battery Cover Knurled Nut - 104550$13.20In stock
34104549Ferrari 308/512 BB Gasket - 104549$4.93In stock
35114058Ferrari Air Box Rubber Gasket - 114058$121.69Available, ships in 3-6 days
35105664Ferrari Gasket - 105664$120.98Available, ships in 3-6 days
35104839Ferrari Gasket - 104839Price on requestContact us for price and availability
38102790Ferrari Union - 102790Price on requestContact us for price and availability
3910519301Ferrari Washer - 10519301$0.59Available, ships in 3-6 days
40109525Ferrari RH Manifold - 109525$279.03Available, ships in 3-6 days
41109524Ferrari LH Manifold - 109524Price on requestContact us for price and availability
42109526Ferrari Tube - 109526Price on requestContact us for price and availability
4310450190Ferrari Clamp 10mm - 10450190$0.92Available, ships in 3-6 days
12179090Ferrari Clip - 12179090SupersededOrder 157990 instead
106058Ferrari Gasket - 106058SupersededOrder 147687 instead
106059Ferrari Gasket - 106059SupersededOrder 147688 instead
12179590Ferrari Hose Clip 16-25 - 12179590SupersededOrder 13000390 instead
105274Ferrari Inlet Trumpet - 105274Price on requestContact us for price and availability
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
12574121Ferrari Nyloc Nut White - 12574121SupersededOrder 169180 instead
141704Ferrari Pipe - 141704Price on requestContact us for price and availability
13543321Ferrari Short Stud - 13543321SupersededOrder 13543324 instead
13517020Ferrari Stud - 13517020Price on requestContact us for price and availability
10519304Ferrari Washer - 10519304Price on requestContact us for price and availability
14497801Ferrari Washer - 14497801Price on requestContact us for price and availability

All 512 BB (Carburetor) diagrams
