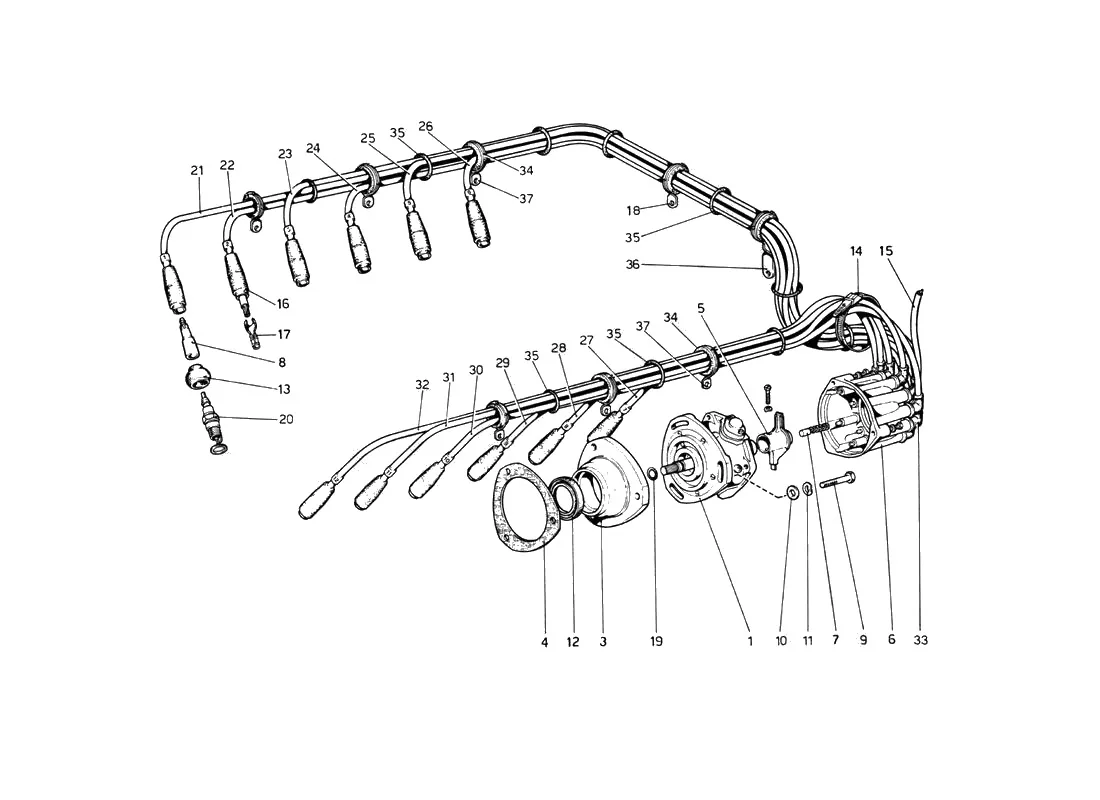

Ferrari 512 BB (Carburetor) — Engine Ignition (diagram 036)
Exploded view of the engine ignition on the Ferrari 512 BB (Carburetor), with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/036.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 108638 | Ferrari Distributor 512 - 108638 | $5,987.48 | Available, ships in 3-6 days |
| 2 | 103816 | Ferrari Distributor Spacer - 103816 | $183.02 | Available, ships in 3-6 days |
| 3 | 107992 | Ferrari Distributor Support - 107992 | Price on request | Special order, ships in 7-14 days |
| 3 | 107992/U | Ferrari Distributor Support - 107992/U | $299.17 | Available, ships in 3-6 days |
| 4 | AW3365BB | Ferrari 512 BB/BBi Cam Cover Gasket Set - AW3365000BB | $96.80 | In stock |
| 4 | 147642 | Ferrari Distributor Base Gasket - 147642 | $6.16 | In stock |
| 4 | 103815 | Ferrari Gasket - 103815 | Superseded | Order 147642 instead |
| 5 | 95300313 | Ferrari 365/400/512 Distributor Rotor - 95300313 | $416.90 | In stock |
| 5 | 95300313A | Ferrari 365/400/512 Distributor Rotor - 95300313A | $416.90 | In stock |
| 6 | 95300043 | Ferrari Distributor Cap - 95300043 | $632.50 | In stock |
| 7 | 95300069 | Ferrari Dist Carbon Brush - 95300069 | $50.71 | Available, ships in 3-6 days |
| 7 | 95300069/A | Ferrari Carbon Brush - 95300069/A | $50.43 | Available, ships in 3-6 days |
| 8 | 109357 | Ferrari 365/512 Spark Plug Extension -109357 | $16.50 | In stock |
| 8 | 107309 | Ferrari Plug Extension - 107309 | Superseded | Order 109357 instead |
| 9 | 16043934 | Ferrari Screw M8 x 35 - 16043934 | $0.54 | Available, ships in 3-6 days |
| 9 | 16043921 | Ferrari Bolt - 16043921 | Superseded | Order 16043934 instead |
| 10 | 10519624 | Ferrari Washer 8.15 - 17 x 2 - 10519624 | $0.27 | Available, ships in 3-6 days |
| 10 | 10519601 | Ferrari Washer 8.15-17 X 2 - 10519601 | Superseded | Order 10519624 instead |
| 11 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 11 | 11198071 | Ferrari Washer Beville 8mm - 11198071 | Superseded | Order 11198074 instead |
| 12 | 108009 | Ferrari Distributor Oil Seal - 108009 | $18.15 | In stock |
| 13 | 108333 | Ferrari 308/Mondial Spark Plug Boot - 108333 | $12.05 | In stock |
| 14 | 103755 | Ferrari Cable Tie - 103755 | Price on request | Contact us for price and availability |
| 15 | 110908 | Ferrari Cable - 110908 | Price on request | Contact us for price and availability |
| 17 | 12056340 | Ferrari Lead End - 12056340 | Price on request | Special order, ships in 7-14 days |
| 18 | 105903 | Ferrari Bracket - 105903 | Price on request | Contact us for price and availability |
| 19 | 100015 | Ferrari Distributor O-ring-100015 | $2.15 | In stock |
| 20 | 100604 | Ferrari Spark Plug - 100604 | $7.42 | In stock |
| 20 | 105624/A | Ferrari H.T. Lead Complete Set - 105624/A | $1,481.24 | Available, ships in 3-6 days |
| 33 | 100284 | Ferrari HT Lead Rubber Cap - 100284 | $11.21 | Special order, ships in 7-14 days |
| 34 | 10396580 | Ferrari Rubber Grommet - 10396580 | $10.11 | In stock |
| 34 | 100286 | Ferrari Gaiter - 100286 | Superseded | Order 10396580 instead |
| 35 | 103702 | Ferrari Oil Seal - 103702 | $13.76 | Available, ships in 3-6 days |
| 36 | 105625 | Ferrari Bracket - 105625 | $3.91 | Available, ships in 3-6 days |
| 37 | 105626 | Ferrari Bracket - 105626 | $5.31 | Available, ships in 3-6 days |
| 29288 | Ferrari Cap - 29288 | Price on request | Contact us for price and availability | |
| 29264 | Ferrari Gaiter - 29264 | Superseded | Order 10396580 instead | |
| 93798 | Ferrari Washer - 93798 | Superseded | Order 10519624 instead | |
| - | 9910 | Ferrari 365 BB/512 BB Ignition Wire Set - 9910 | $873.98 | In stock |
| - | 10365R | Ferrari 512 BBi Ignition Wire Set (Red) - 10365R | $654.50 | In stock |
| - | 10365 | Ferrari 512 BBi Ignition Wire Set - 10365 | $654.50 | In stock |
| - | 105627 | Ferrari H.T. Lead Set (Bank 7-12) - 105627 | $1,481.24 | Available, ships in 3-6 days |
