Ferrari 512 TR — Exhaust System -Valid For Usa, Cdn, Aus, Ch- (diagram 019)

Exploded view of the exhaust system -valid for usa, cdn, aus, ch- on the Ferrari 512 TR, with 94 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

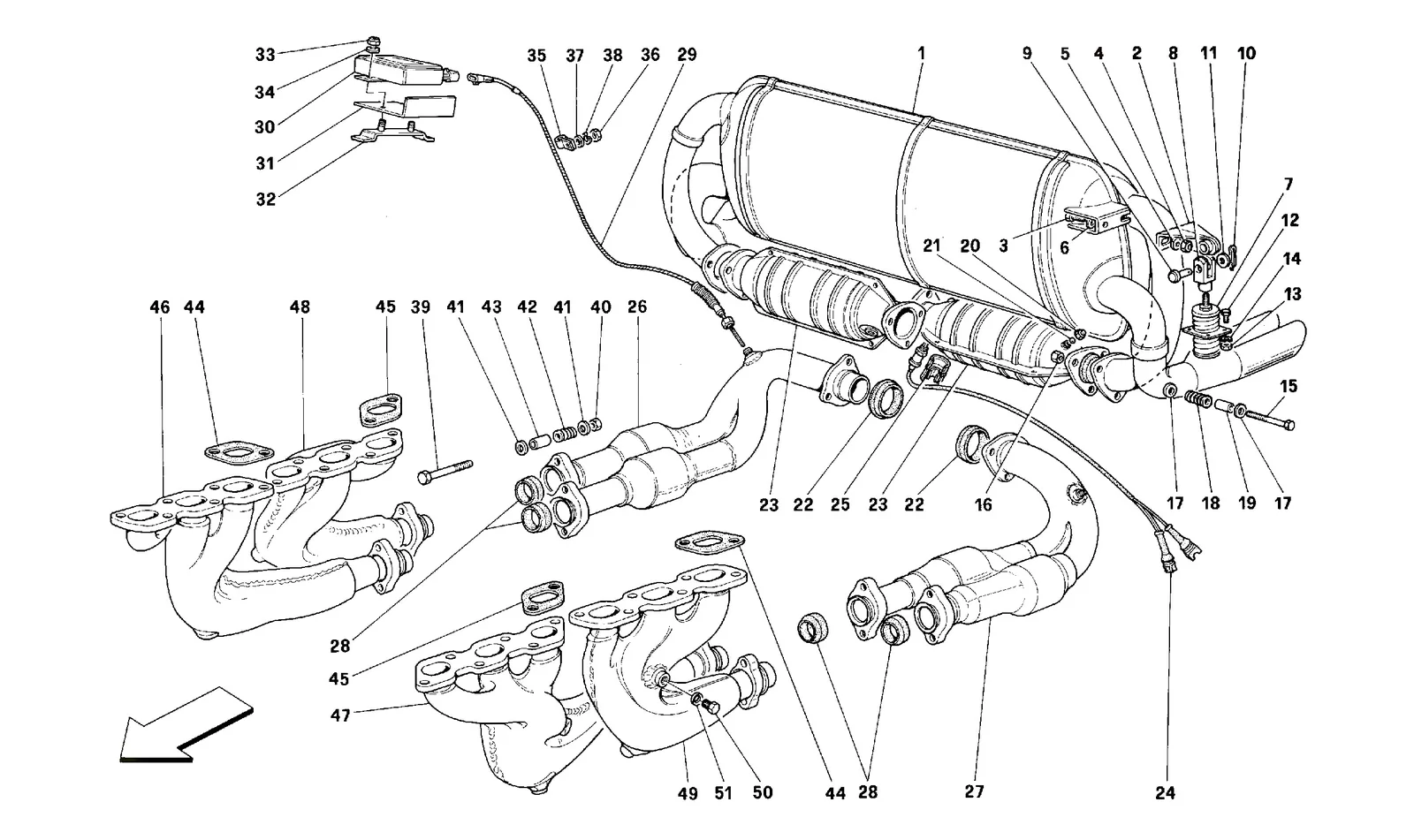

Ferrari 512 TR Exhaust System -Valid For Usa, Cdn, Aus, Ch- exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1LA0161SRSFerrari 512TR/512M (+Corse) - Larini 'Sports' Exhaust Muffler - LA0161SRS$4,620.08In stock
2122689Ferrari Bracket - 122689$313.89Available, ships in 3-6 days
316043534Ferrari Screw M8 x 22 - 16043534$0.65Available, ships in 3-6 days
4114748Ferrari Exhaust Lock Nut - 114748$7.85In stock
510519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
612646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
7106052Ferrari Exhaust Mount-106052$160.60In stock
8108257Ferrari Fork - 108257$187.60Available, ships in 3-6 days
910033414Ferrari Clevis Pin - 10033414$18.76Available, ships in 3-6 days
1010796440Ferrari Split Pin - 10796440Price on requestContact us for price and availability
11103167Ferrari Washer - 103167$6.98Special order, ships in 7-14 days
1210977624Ferrari Screw TE M5 x 12 - 10977624$0.12Available, ships in 3-6 days
1315896470Ferrari RH Thread Nut M5 x 4 - 15896470$14.30Available, ships in 3-6 days
14127493Ferrari Spring Washer 5mm - 127493$0.17Available, ships in 3-6 days
1515971324Ferrari Bolt M10 x 1.25 - 15971324$3.26Available, ships in 3-6 days
15121676Ferrari Bolt - 121676SupersededOrder 15971324 instead
16121677Ferrari Exhaust Lock Nut - 121677$4.98In stock
17121678Ferrari Washer - 121678$2.19Available, ships in 3-6 days
18121674Ferrari Bracket Spring - 121674$18.59Available, ships in 3-6 days
19121675Ferrari Spacer - 121675$14.41Available, ships in 3-6 days
20100436Ferrari Water Pump Nut - 100436$6.44In stock
21125858Ferrari Ball - 125858$0.17Available, ships in 3-6 days
22154985Ferrari Exhaust Pipe Donut Gasket - 154985$32.98In stock
22146697Ferrari Exhaust Ring - 146697SupersededOrder 154985 instead
23LA0162SCSCATFerrari 512TR/512M (+Corse) - Larini Secondary 'Club Sport' Exhaust Catalysts (Inco) - LA0162SCSCAT$3,451.84In stock
24146650Ferrari 348 512TR Mondial T Oxygen Sensor - 146650$163.90In stock
24146650/AFerrari Lambda Feeler Sensor - 146650/A$600.17Available, ships in 3-6 days
25121833Ferrari Shield - 121833$76.35Available, ships in 3-6 days
26145524Ferrari RH Light Off Catalyst - 145524Price on requestContact us for price and availability
26153349Ferrari RH Light Off Catalyst - 153349Price on requestContact us for price and availability
27145525Ferrari LH Light Off Catalyst - 145525SupersededOrder 153350 instead
27153350Ferrari LH Light Off Catalyst - 153350$4,544.43Available, ships in 3-6 days
28154981Ferrari Exhaust Donut Gasket - 154981$22.61In stock
28154981/AFerrari Exhaust Ring - 154981/A$39.02Available, ships in 3-6 days
29149427Ferrari Thermocouple - 149427$277.44Available, ships in 3-6 days
30154470Ferrari Control Station - 154470Price on requestContact us for price and availability
31150043Ferrari Plate - 150043$114.56Available, ships in 3-6 days
32150044Ferrari Plate - 150044$8.59Available, ships in 3-6 days
33169180Ferrari Nyloc Nut M5 x 6.3 - 169180$0.31Available, ships in 3-6 days
3312574115Ferrari Nut - 12574115SupersededOrder 169180 instead
3410519377Ferrari Washer - 10519377SupersededOrder 10519378 instead
3410519378Ferrari Spring Washer 5mm - 10519378$0.08Available, ships in 3-6 days
3510420301Ferrari Clamp 4mm - 10420301$9.10Special order, ships in 7-14 days
3615896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
3710519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
3714496401Ferrari Washer - 14496401SupersededOrder 10519424 instead
38127494Ferrari Lock Washer - 127494$0.50In stock
38106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
3916045024Ferrari Exhaust Bolt - 16045024$1.91In stock
39125924Ferrari Bolt - 125924SupersededOrder 16045024 instead
41128010Ferrari Stainless Steel Washer - 128010$2.15In stock
41112761Ferrari Washer - 112761SupersededOrder 128010 instead
42111743Ferrari Exhaust Spring - 111743$43.51In stock
43114749Ferrari Exhaust System Spacer - 114749$5.23In stock
44138076Ferrari Manifold Gasket - 138076 - see 147705Price on requestIn stock
44138076/AFerrari Manifold Gasket - 138076/A$17.59Available, ships in 3-6 days
45146658Ferrari Manifold Gasket - 146658 - use 147705Price on requestIn stock
45146658/AFerrari Exhaust Gasket - 146658/A$16.31Available, ships in 3-6 days
46145519Ferrari RH Front Exhaust Manifold - 145519$1,774.78Available, ships in 3-6 days
47145520Ferrari LH Front Exhaust Manifold - 145520$1,738.03Available, ships in 3-6 days
48145521Ferrari RH Rear Exhaust Manifold - 145521$2,137.74Available, ships in 3-6 days
49145522Ferrari LH Rear Exhaust Manifold - 145522$2,028.49Available, ships in 3-6 days
50110860Ferrari Manifold Blanking Plug - 110860$25.09Available, ships in 3-6 days
5110298460Ferrari Washer - 10298460$1.10In stock
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
123198Ferrari Bolt - 123198SupersededOrder 15971324 instead
100115Ferrari Brass Exhaust Nut - 100115SupersededOrder 114748 instead
124525Ferrari Brass Exhaust Nut - 124525SupersededOrder 114748 instead
105938Ferrari Brass Nut - 105938SupersededOrder 114748 instead
148449Ferrari Control Unit - 148449Price on requestContact us for price and availability
125917Ferrari Exhaust Gasket Ring - 125917SupersededOrder 154981 instead
146699Ferrari Exhaust Ring - 146699SupersededOrder 154981 instead
108272Ferrari Lock Nut - 108272SupersededOrder 114748 instead
15896421Ferrari Nut - 15896421SupersededOrder 15896470 instead
4155314Ferrari Nut - 4155314SupersededOrder 114748 instead
9162124Ferrari Nut - 9162124SupersededOrder 114748 instead
95304Ferrari Nut - 95304SupersededOrder 114748 instead
12574121Ferrari Nyloc Nut White - 12574121SupersededOrder 169180 instead
15971321Ferrari Screw - 15971321SupersededOrder 15971324 instead
10796401Ferrari Split Pin - 10796401$0.13Available, ships in 3-6 days
264555Ferrari Split Pin - 264555Price on requestContact us for price and availability
106849Ferrari Spring Washer - 106849SupersededOrder 127493 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
10519306Ferrari Washer - 10519306SupersededOrder 10519378 instead
11195471Ferrari Washer - 11195471SupersededOrder 127493 instead
11195473Ferrari Washer - 11195473SupersededOrder 127493 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
14496424Ferrari Washer - 14496424SupersededOrder 10519424 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
10519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead

All 512 TR diagrams
