Ferrari 550 Maranello — Water Pump (diagram 028)

Exploded view of the water pump on the Ferrari 550 Maranello, with 119 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

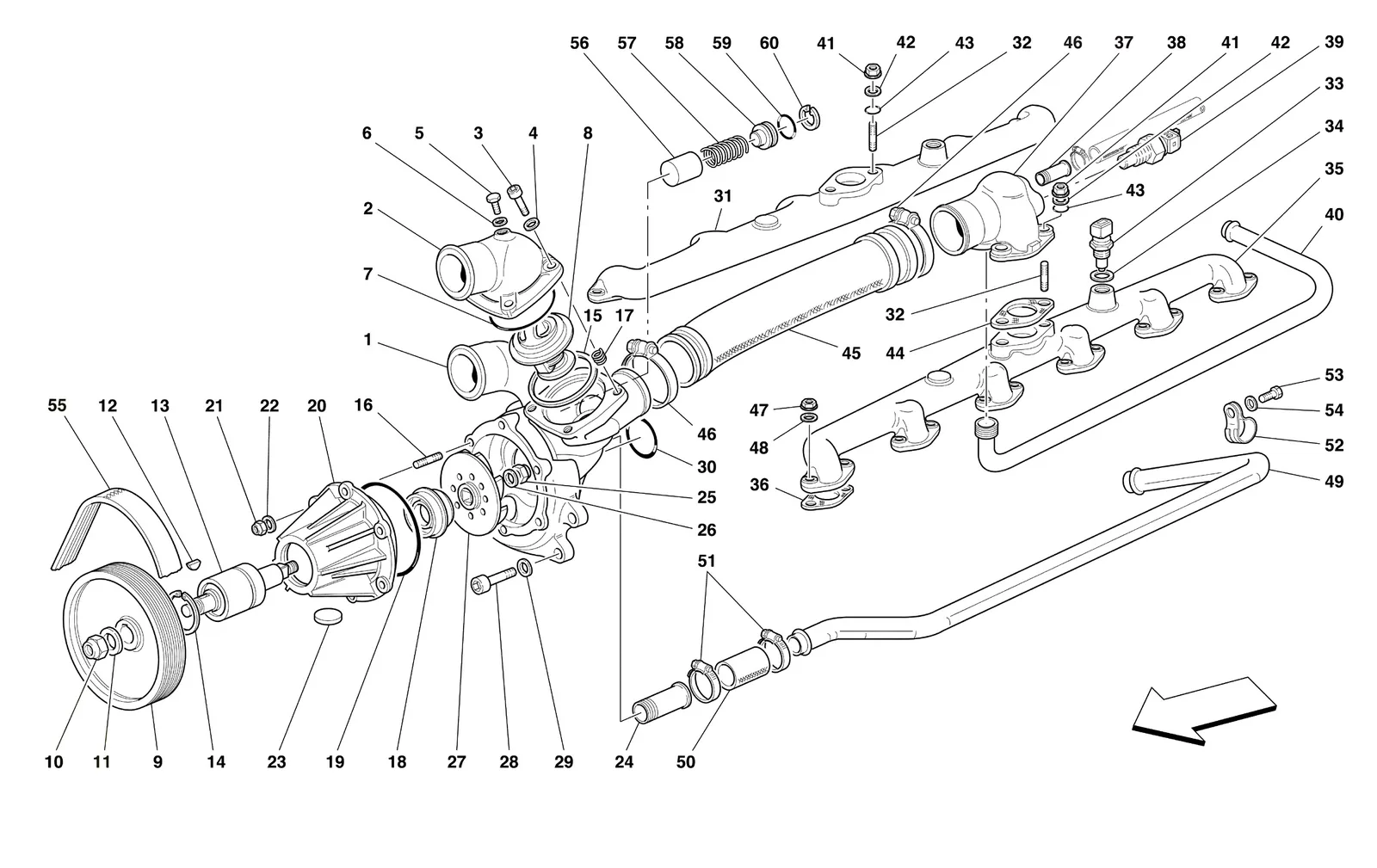

Ferrari 550 Maranello Water Pump exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1156081Ferrari Water Pump Body - 156081Price on requestContact us for price and availability
1174668Ferrari Water Pump Body - 174668SupersededOrder 184002 instead
1184002Ferrari Water Pump Body - 184002$1,888.26Special order, ships in 7-14 days
2163952Ferrari Thermostat Valve Cover - 163952$212.92Special order, ships in 7-14 days
314433124Ferrari Screw 6x18 - 14433124$0.34Available, ships in 3-6 days
314432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
412601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
510300240Ferrari Plug - 10300240$10.66Available, ships in 3-6 days
5130282Ferrari Air Bleed Screw - 130282SupersededOrder 10300240 instead
610297760Ferrari/Maserati Copper Washer - 10297760$0.42In stock
7149279Ferrari Thermostat O-Ring 149279$5.89In stock
8183758Ferrari Thermostat with O-Rings - 183758KITSupersededOrder 950840 instead
8167473Ferrari Water Thermostat 79C - 167473SupersededOrder 183758 instead
9166454Ferrari Water Pump Pulley Dia 102mm - 166454SupersededOrder 154526 instead
9154526Ferrari Water Pump Pulley Dia 120mm - 154526$531.66Available, ships in 3-6 days
9169924Ferrari Water Pump Pulley - 169924$3,224.05Special order, ships in 7-14 days
10102742Ferrari Nyloc Nut M10x1.25x10 - 102742$0.79Available, ships in 3-6 days
1112646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
1210202320Ferrari Woodruff Key - 10202320$2.01Available, ships in 3-6 days
13143742Ferrari Water Pump Shaft & Bearing - 143742$435.14Available, ships in 3-6 days
1411059976Ferrari Clip - 11059976$2.03Available, ships in 3-6 days
15137873Ferrari/Maserati Thermostat O-Ring - 137873$7.15In stock
1613540924Ferrari Stud - 13540924$78.66Available, ships in 3-6 days
1713525470Ferrari Heli Coil - 13525470$1.05Available, ships in 3-6 days
18512TRWPKITFerrari 512TR/512M Water Pump Rebuild Kit - 512TRWPKIT$181.50In stock
18TRWPKLFerrari Testarossa Water Pump Rebuild Kit - TRWPKL$181.50In stock
18183759Ferrari 1PC Water Pump Mechanical Seal - 183759$33.00In stock
18130932Ferrari Water Pump Seal - 130932SupersededOrder 183759 instead
19137868Ferrari Water Pump Seal - 137868$10.73In stock
20176173Ferrari Water Pump - 176173$680.90In stock
21102741Ferrari/Maserati Nyloc Nut M6 - 102741$0.45In stock
2310158801Ferrari Core Plug Te20 - 10158801$2.82Available, ships in 3-6 days
24141068Ferrari Water Pump Union - 141068$90.11Available, ships in 3-6 days
25100436Ferrari Water Pump Nut - 100436$6.44In stock
2611194074Ferrari Washer 8.6-16x1.9 - 11194074$0.08Available, ships in 3-6 days
27154542Ferrari Water Pump Impeller - 154542$188.45Available, ships in 3-6 days
27176045Ferrari Water Pump Impeller - 176045$230.06Available, ships in 3-6 days
2814306424Ferrari Screw M8 x 25mm - 14306424SupersededOrder 14306421 instead
2911193874Ferrari Washer D.8.4-16x1.4 - 11193874$0.12Available, ships in 3-6 days
30141250Ferrari O-Ring - 141250$1.65In stock
31142088Ferrari RH Water Manifold - 142088$1,150.42Special order, ships in 7-14 days
3213516724Ferrari Stud - 13516724Price on requestContact us for price and availability
33125769Ferrari Water Temperature Sender / Sensor - 125769$46.75In stock
3410298460Ferrari Washer - 10298460$1.10In stock
35143323Ferrari LH Water Manifold - 143323$979.09Special order, ships in 7-14 days
36141332Ferrari Water Manifold Gasket - 141332$2.48In stock
37154198Ferrari Water Manifold Connecting Duct - 154198$587.44Special order, ships in 7-14 days
38155093Ferrari Threaded Union - 155093Price on requestContact us for price and availability
39148677Ferrari Water Temperature Sender Unit - 148677SupersededOrder 948822 instead
39948822Ferrari Water Temperature Sender Unit - 948822$609.19Available, ships in 3-6 days
40170165Ferrari Water Tube LHD - 170165Price on requestContact us for price and availability
40173895Ferrari Water Tube - 173895$95.43Special order, ships in 7-14 days
41101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
4212601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
43103039Ferrari O-Ring - 103039$1.65In stock
44142103Ferrari Gasket - 142103$3.62In stock
45181599Ferrari 456/550/575/612 Cooling Hose - 181599$259.65In stock
45154480Ferrari Water Hose - 154480SupersededOrder 181599 instead
46134109Ferrari Hose Clamp - 134109$5.38In stock
46178203Ferrari Hose Clip - 178203SupersededOrder 134109 instead
47132877Ferrari Nut - 132877SupersededOrder 194031 instead
4812604274Ferrari Wavy Washer 6mm - 12604274$0.12Available, ships in 3-6 days
49154716Ferrari Water Tube LHD - 154716Price on requestContact us for price and availability
49160833Ferrari Water Tube RHD - 160833$56.27Special order, ships in 7-14 days
50175223Ferrari Cooling Hose - 175223$10.18In stock
50122842Ferrari Water Hose - 122842SupersededOrder 175223 instead
5113000490Ferrari Screw Collar 20-32mm - 13000490$1.53Available, ships in 3-6 days
5112180290Ferrari Hose Clip 19-29 - 12180290SupersededOrder 13000490 instead
52145661Ferrari P Clip Cable Bracket - 145661Price on requestContact us for price and availability
5316043224Ferrari Bolt - 16043224$0.34Available, ships in 3-6 days
54127496Ferrari Spring Washer 8mm - 127496$0.12Available, ships in 3-6 days
55199834Ferrari 456/550 Power Steering Belt - 199834$35.20In stock
55201456Ferrari Power Steering Belt - 201456$41.80In stock
55166453Ferrari Water Pump Belt - 166453SupersededOrder 199834 instead
55171093Ferrari Water Pump Belt - 171093SupersededOrder 199834 instead
55177510Ferrari Water Pump Belt - 177510$65.24Available, ships in 3-6 days
55177511Ferrari Water Pump Belt - 177511SupersededOrder 201456 instead
56176046Ferrari Water Pump Bush - 176046$48.93Special order, ships in 7-14 days
57176047Ferrari Water Pump Spring - 176047Price on requestContact us for price and availability
58176048Ferrari Water Pump Plug - 176048$23.96Special order, ships in 7-14 days
59147278Ferrari O-Ring - 147278$0.98Available, ships in 3-6 days
6011058376Ferrari Circlip - 11058376Price on requestContact us for price and availability
157576Ferrari Complete Water Pump - 157576SupersededOrder 183760 instead
166497Ferrari Complete Water Pump - 166497SupersededOrder 183760 instead
167474Ferrari Complete Water Pump - 167474SupersededOrder 183760 instead
10169290Ferrari Hose Clip 26-30 - 10169290SupersededOrder 13000490 instead
12575611Ferrari Nut - 12575611SupersededOrder 102742 instead
67190100Ferrari Nut - 67190100SupersededOrder 194031 instead
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
12575625Ferrari Nyloc Nut - 12575625SupersededOrder 102742 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
157565Ferrari Thermostat Valve Cover - 157565SupersededOrder 163952 instead
10615670Ferrari Washer - 10615670SupersededOrder 12601374 instead
10615671Ferrari Washer - 10615671SupersededOrder 12601374 instead
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
10615679Ferrari Washer - 10615679SupersededOrder 12601374 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12601370Ferrari Washer - 12601370SupersededOrder 12601374 instead
12601379Ferrari Washer - 12601379SupersededOrder 12601374 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
14496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
194329Ferrari Water Pump Body - 194329SupersededOrder 184002 instead
154546Ferrari Water Pump Case - 154546SupersededOrder 176173 instead
950840Ferrari Water Thermostat - 950840$151.73Available, ships in 3-6 days
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
-153199Ferrari Water Pump Body - 153199Price on requestContact us for price and availability
-164114Ferrari Water Pump Complete - 164114SupersededOrder 183760 instead
-176103Ferrari Water Pump Complete - 176103SupersededOrder 183760 instead
-183760Ferrari Water Pump Complete - 183760$842.75Available, ships in 3-6 days

All 550 Maranello diagrams
