Ferrari 575M Maranello — Rear Suspension - Wishbones And Stabilizer Bar (diagram 056)

Exploded view of the rear suspension - wishbones and stabilizer bar on the Ferrari 575M Maranello, with 43 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

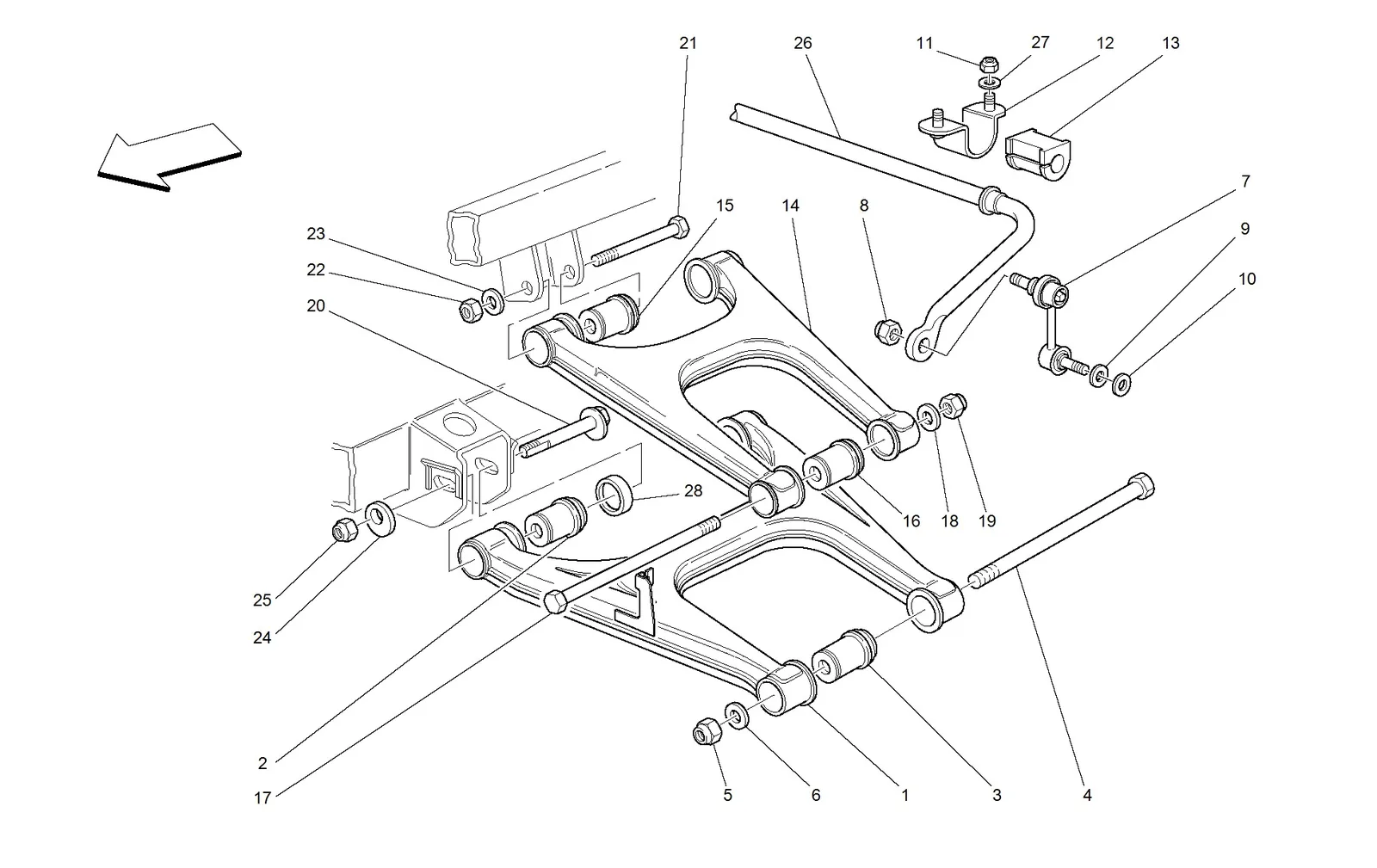

Ferrari 575M Maranello Rear Suspension - Wishbones And Stabilizer Bar exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1183956Ferrari RH Rear Lower Suspension Lever - 183956$1,003.57Available, ships in 3-6 days
1183772Ferrari LH Rear Lower Suspension Lever - 183772$1,003.57Special order, ships in 7-14 days
2186495Ferrari 575 Lower Rear Control Arm Bushing - 186495$183.10In stock
3186496Ferrari/Maserati Rear Control Arm Bushing - 186496$120.98In stock
4168445Ferrari Suspension Bolt - 168445Price on requestContact us for price and availability
5150238Ferrari Nyloc Nut - 150238$1.05In stock
6105434Ferrari Spacer 0.5mm - 105434$50.96Available, ships in 3-6 days
7171812Ferrari Rear Sway Bar Link - Tie Rod - 171812$123.75In stock
8102742Ferrari Nyloc Nut M10x1.25x10 - 102742$0.79Available, ships in 3-6 days
912601474Ferrari Wavy Washer 10mm - 12601474$0.06Available, ships in 3-6 days
9102901Ferrari Washer - 102901$0.06Available, ships in 3-6 days
10160092Ferrari Washer - 160092$0.50Available, ships in 3-6 days
11101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
12153148Ferrari Bracket - 153148Price on requestContact us for price and availability
13153146Ferrari 550/575 Rear Sway Bar Bushing - 153146SupersededOrder 212936 instead
13130533Ferrari Antiroll Bar Rubber D. 21 x 51 - 130533$67.28Available, ships in 3-6 days
13212936Ferrari Roll Bar Rubber - 212936$36.69Special order, ships in 7-14 days
13210897Ferrari Roll Bar Rubber - 210897$39.14Special order, ships in 7-14 days
14188736Ferrari RH/LH Rear Upper Suspension Lever - 188736$587.44Available, ships in 3-6 days
164298Ferrari/Maserati Upper Inner Control Arm Bushing - 186493$184.80In stock
17144747Ferrari Suspension Bolt - 144747$59.15Available, ships in 3-6 days
1812601574Ferrari Wavy Washer 13mm - 12601574$0.13Available, ships in 3-6 days
19102825Ferrari Locking Suspension Nut - 102825$1.10In stock
20150789Ferrari Suspension Bolt - 150789Price on requestContact us for price and availability
21106422Ferrari Bolt M14 x 1.5 x 84 - 106422$54.06Available, ships in 3-6 days
2312601674Ferrari Wavy Washer 15mm - 12601674$0.38Available, ships in 3-6 days
24175077Ferrari Suspension Washer - 175077$45.67Available, ships in 3-6 days
26169120Ferrari Rear Anti Roll Bar - 169120$562.96Special order, ships in 7-14 days
26175890Ferrari Rear Anti Roll Bar - 175890Price on requestContact us for price and availability
26210888Ferrari Rear Antiroll Bar - 210888Price on requestContact us for price and availability
2710519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
28187016Ferrari Spacer For Silent Block - 187016$7.80Available, ships in 3-6 days
12575611Ferrari Nut - 12575611SupersededOrder 102742 instead
16104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
12575625Ferrari Nyloc Nut - 12575625SupersededOrder 102742 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
106616Ferrari Washer - 106616SupersededOrder 12601574 instead
12601579Ferrari Washer - 12601579SupersededOrder 12601574 instead
157115Ferrari Washer - 157115SupersededOrder 12601574 instead
4146930Ferrari Washer - 4146930Price on requestContact us for price and availability
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
10519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead

All 575M Maranello diagrams
