Ferrari 812 Competizione — [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL (diagram 0050)

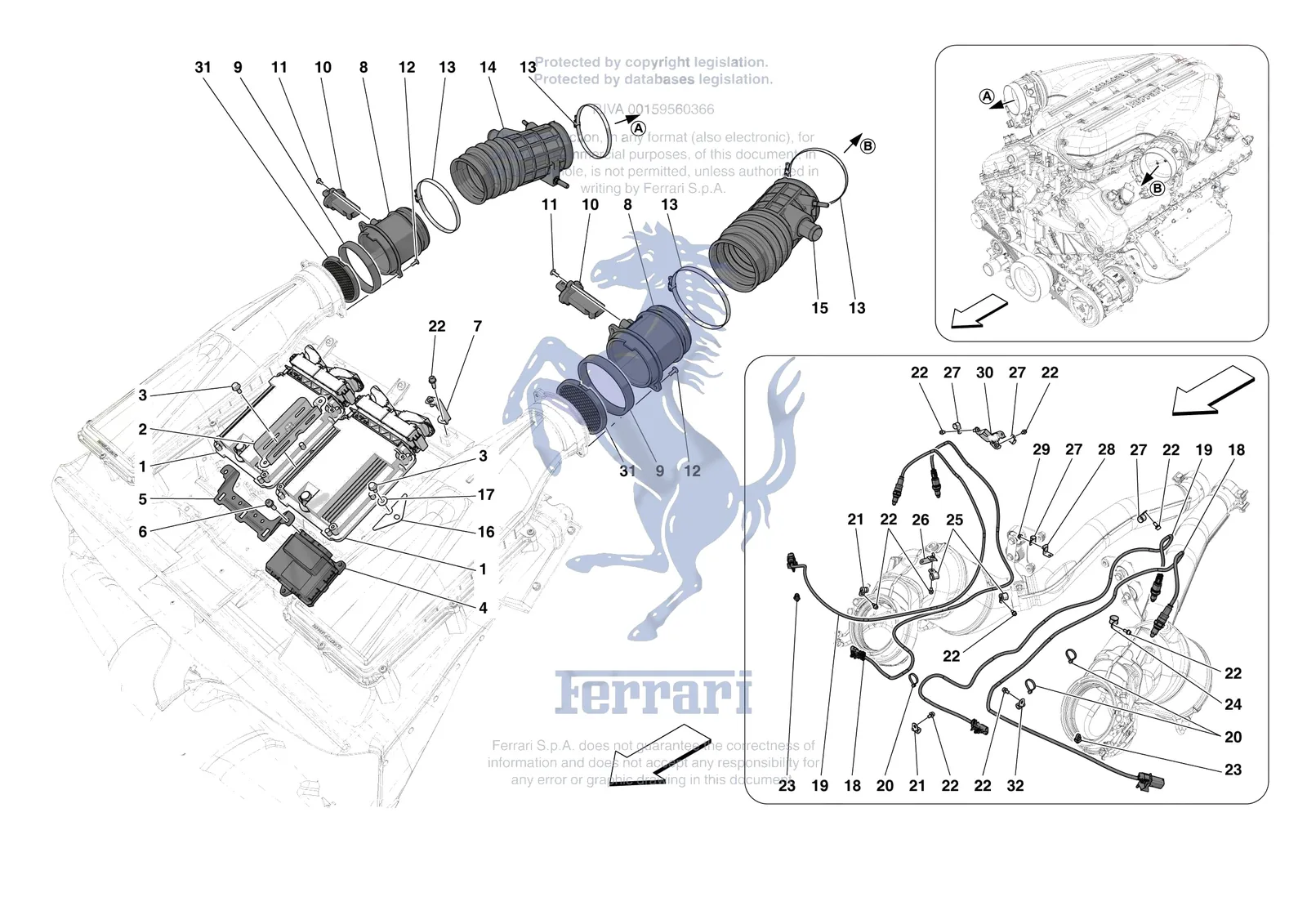

Exploded view of the [mechanical system] - d.3 - engine injection control on the Ferrari 812 Competizione, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0050.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 942601 | Ferrari Ion ECU Casing - 942601 | Superseded | Order 941421 instead | |
| 326182 | Ferrari LH Hose Union Complete - 326182 | Superseded | Order 333753 instead | |
| 326185 | Ferrari LH Hose Union Complete - 326185 | Superseded | Order 333749 instead | |
| 326183 | Ferrari RH Hose Union Complete - 326183 | Superseded | Order 333751 instead | |
| 326186 | Ferrari RH Hose Union Complete - 326186 | Superseded | Order 333747 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 861912 | Ferrari Centralina Accensione Med17. - 861912 | $2,552.45 | Special order, ships in 7-14 days |
| 2 | 339174 | Ferrari Motronic Central Fastener Br - 339174 | $71.28 | Special order, ships in 7-14 days |
| 3 | 16296924 | Ferrari Screw M6 x 14 TE - 16296924 | $0.54 | Available, ships in 3-6 days |
| 4 | 865036 | Ferrari Ion ECU Casing - 865036 | $2,248.03 | Special order, ships in 7-14 days |
| 4 | 941421 | Ferrari Ion ECU Casing - 941421 | $2,224.61 | Special order, ships in 7-14 days |
| 5 | 339487 | Ferrari Connector Fastener Bracket - 339487 | $63.90 | Special order, ships in 7-14 days |
| 6 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 7 | 915144 | Ferrari Centre Guard Fastener Bracke - 915144 | $29.48 | Special order, ships in 7-14 days |
| 8 | 845077 | Ferrari RH Intake Line Air Flow Sens - 845077 | $98.32 | Special order, ships in 7-14 days |
| 9 | 327132 | Ferrari Adhesive Foam - 327132 | $39.31 | Special order, ships in 7-14 days |
| 10 | 297280 | Ferrari Air Flow Sensor - 297280 | $237.66 | In stock |
| 11 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 12 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 14 | 333747 | Ferrari RH Hose Union Complete - 333747 | $467.15 | Special order, ships in 7-14 days |
| 14 | 333751 | Ferrari RH Hose Union Complete - 333751 | $368.79 | Special order, ships in 7-14 days |
| 15 | 333749 | Ferrari LH Hose Union Complete - 333749 | $467.15 | Special order, ships in 7-14 days |
| 15 | 333753 | Ferrari LH Hose Union Complete - 333753 | $368.79 | Special order, ships in 7-14 days |
| 16 | 888264 | Ferrari Motronic Fastener Bracket - 888264 | $12.27 | Special order, ships in 7-14 days |
| 17 | 12647624 | Ferrari Washer D 6.45-16x2 - 12647624 | $0.19 | Available, ships in 3-6 days |
| 18 | 838881 | Ferrari Upstream Sensor - 838881 | $327.81 | Special order, ships in 7-14 days |
| 19 | 788064 | Ferrari Rear Oxygen Sensor - 788064 | $262.24 | Special order, ships in 7-14 days |
| 20 | 206739 | Ferrari Tear Clip - 206739 | $16.37 | Available, ships in 3-6 days |
| 21 | 67190200 | Ferrari Bracket With Sheath 14mm - 67190200 | $3.91 | Special order, ships in 7-14 days |
| 22 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 22 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 23 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 24 | 10418901 | Ferrari P Clip - 10418901 | $1.49 | Available, ships in 3-6 days |
| 25 | 10441490 | Ferrari/Maserati Retaining Clip - 10441490 | $1.35 | In stock |
| 26 | 784333 | Ferrari LH Lambda Probe Cable Retain - 784333 | $34.40 | Special order, ships in 7-14 days |
| 27 | 10418601 | Ferrari Clamp 14mm - 10418601 | $1.86 | Available, ships in 3-6 days |
| 28 | 862865 | Ferrari Bracket for RH Rear Oxygen Sensor Cable - 862865 | $12.52 | Special order, ships in 7-14 days |
| 29 | 14058421 | Ferrari Nut M6 x 6 - 14058421 | $2.38 | Available, ships in 3-6 days |
| 30 | 903806 | Ferrari Bracket For RH Rear Oxygen S - 903806 | $61.45 | Special order, ships in 7-14 days |
| 31 | 841336 | Ferrari Square Mesh Grille For Mass - 841336 | $18.55 | Special order, ships in 7-14 days |
| 32 | 10441190 | Ferrari P clip Bracket With Sheath D8mm - 10441190 | $0.90 | Available, ships in 3-6 days |
