Ferrari 812 Competizione — [MECHANICAL SYSTEM] - D.6 - EMISSIONS CONTROL SYSTEM (diagram 0054)

Exploded view of the [mechanical system] - d.6 - emissions control system on the Ferrari 812 Competizione, with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

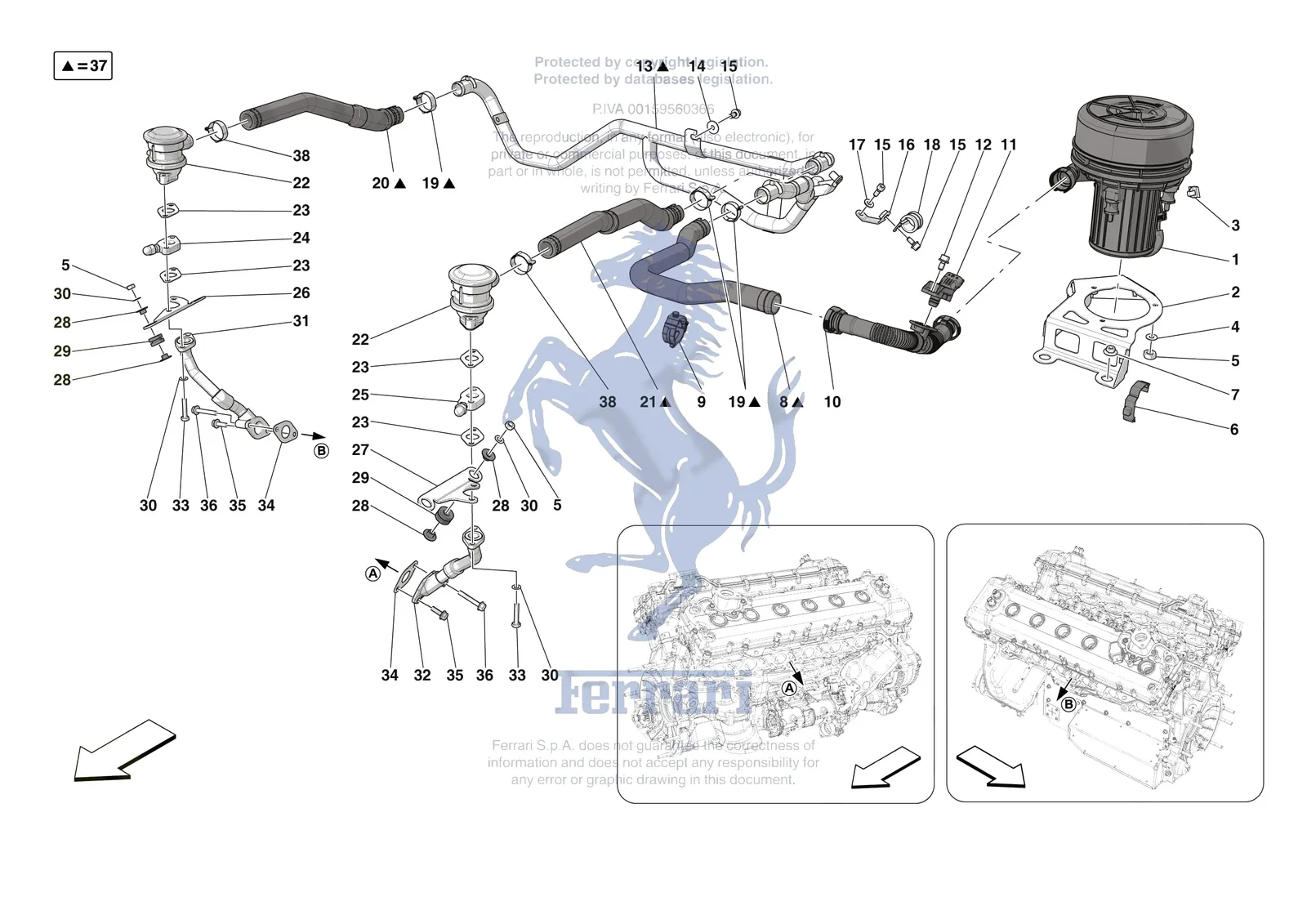

Ferrari 812 Competizione [MECHANICAL SYSTEM] - D.6 - EMISSIONS CONTROL SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
252813Ferrari Shim - 252813SupersededOrder 264020 instead
210653Ferrari Spacer - 210653SupersededOrder 264020 instead
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
1247795Ferrari Secondary Air Pump - 247795$1,229.39Special order, ships in 7-14 days
2857300Ferrari Secondary Air System Pump Fastener Bracket - 857300$63.90Special order, ships in 7-14 days
3253769Ferrari Clip - 253769$1.17Special order, ships in 7-14 days
411194674Ferrari Washer - 11194674$0.92Available, ships in 3-6 days
515896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
515896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
6238156Ferrari Clip - 238156$3.03Special order, ships in 7-14 days
714039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
8332008Ferrari COMPL. ENGINE SIDE SECONDARY AIR SYSTEM HOSE CONNECTOR - 332008Price on requestContact us for price and availability
982051100Ferrari Clip - 82051100$1.82Available, ships in 3-6 days
10288959Ferrari Secondary Air System Pipe With Sensor Carrier - 288959$295.03Special order, ships in 7-14 days
11282849Ferrari Pressure Sensor - 282849$61.16Special order, ships in 7-14 days
12233600Ferrari/Maserati Screw - 233600$1.98In stock
13857060Ferrari Aluminium Pipe - 857060$786.79Special order, ships in 7-14 days
1412643724Ferrari/Maserati Washer - 12643724$0.20In stock
1514305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
15231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
16289882Ferrari Pipe Mounting Bracket - 289882$14.72Special order, ships in 7-14 days
17276781Ferrari Washer - 276781$0.79Special order, ships in 7-14 days
1810450690Ferrari P Clip Bracket With Sheath - 10450690$1.25Available, ships in 3-6 days
1913128970Ferrari Collar D.25.5B - 13128970$3.26Special order, ships in 7-14 days
20331980Ferrari Manicotto D.19 X 3.5Valvola - 331980$159.79Special order, ships in 7-14 days
21331981Ferrari LH HOSE - 331981Price on requestContact us for price and availability
22284235Ferrari Secondary Air System Valve - 284235$417.97Available, ships in 3-6 days
23186781Ferrari/Maserati Secondary Air Gasket - 186781$6.05In stock
2455018763Ferrari RH Secondary Air System Valv - 55018763$43.68Special order, ships in 7-14 days
24264020Ferrari RH Spacer Assembly - 264020$110.61Special order, ships in 7-14 days
2555018779Ferrari LH Secondary Air System Valv - 55018779$32.76Special order, ships in 7-14 days
25286011Ferrari LH Spacer Assembly - 286011$98.32Special order, ships in 7-14 days
26331919Ferrari RH Secondary Air Pipe Mounting Bracket - 331919$19.89Special order, ships in 7-14 days
27331920Ferrari LH Secondary Air Pipe Mounting Bracket - 331920$19.89Special order, ships in 7-14 days
28183898Ferrari Bush - 183898$5.44Special order, ships in 7-14 days
29177576Ferrari Cable Grommet - 177576$4.12Available, ships in 3-6 days
3012601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
31331917Ferrari Compl. RH Secondary Air Inlet - 331917$491.74Special order, ships in 7-14 days
32331918Ferrari Compl. LH Secondary Air Inlet - 331918$467.15Special order, ships in 7-14 days
3310902824Ferrari Screw M6 x 30 - 10902824$0.17Available, ships in 3-6 days
34202980Ferrari Gasket - 202980$4.89Available, ships in 3-6 days
3516286124Ferrari Screw M6x20 - 16286124$0.71Special order, ships in 7-14 days
3616286524Ferrari Screw - 16286524$1.30Available, ships in 3-6 days
37857059Ferrari Tubo Premontaggio Allum D20 - 857059$1,229.39Special order, ships in 7-14 days
