Ferrari 812 Competizione — [MECHANICAL SYSTEM] - D.21 - SERVO BRAKE PIPES (diagram 0070)

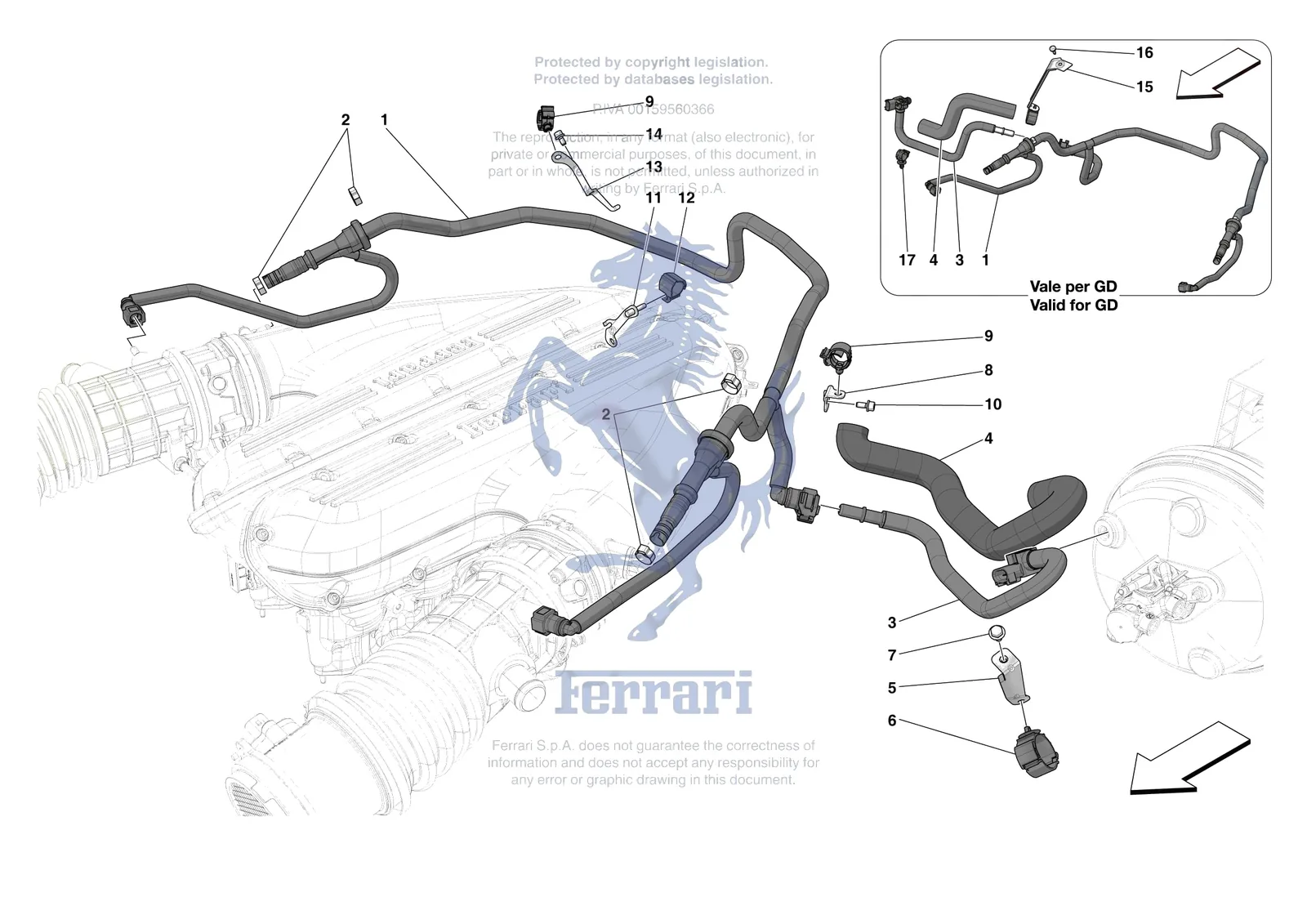

Exploded view of the [mechanical system] - d.21 - servo brake pipes on the Ferrari 812 Competizione, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 Competizione [MECHANICAL SYSTEM] - D.21 - SERVO BRAKE PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizione/0070.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 332428 | Ferrari Clip - 332428 | $2.61 | Special order, ships in 7-14 days | |
| 340035 | Ferrari Heat Shield For Kaiser Pipe - 340035 | $440.56 | Special order, ships in 7-14 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 965791 | Ferrari Compl. Kaiser Pipe - 965791 | $762.20 | Special order, ships in 7-14 days |
| 1 | 991205 | Ferrari Compl. Kaiser Pipe - 991205 | $835.97 | Special order, ships in 7-14 days |
| 1 | 800223 | Ferrari Part Search Results - 800223 | $452.92 | Available, ships in 3-6 days |
| 2 | 13434670 | Ferrari Screw Collar D16.2mm - 13434670 | $1.44 | Available, ships in 3-6 days |
| 3 | 339549 | Ferrari Pipe From Disconnecter Union - 339549 | Superseded | Order 993910 instead |
| 3 | 340024 | Ferrari Pipe From Disconnecter Union - 340024 | $467.15 | Special order, ships in 7-14 days |
| 3 | 993910 | Ferrari Pipe From Disconnecter Union - 993910 | $467.15 | Special order, ships in 7-14 days |
| 4 | 334923 | Ferrari Heat Shield For Kaiser Pipe - 334923 | $467.15 | Special order, ships in 7-14 days |
| 4 | 813187 | Ferrari Heat Shield For Kaiser Pipe - 813187 | $467.15 | Special order, ships in 7-14 days |
| 5 | 325139 | Ferrari Vacuum Pipe Mounting Bracket - 325139 | $23.82 | Special order, ships in 7-14 days |
| 6 | 315352 | Ferrari Clip - 315352 | $2.59 | Special order, ships in 7-14 days |
| 7 | 11625621 | Ferrari Screw - 11625621 | $1.11 | Available, ships in 3-6 days |
| 8 | 939183 | Ferrari Compl. Kaiser Pipe Bracket - 939183 | $46.69 | Special order, ships in 7-14 days |
| 9 | 259508 | Ferrari Clip 15.8mm-18.5mm - 259508 | $1.25 | Special order, ships in 7-14 days |
| 10 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 11 | 903934 | Ferrari Kaiser Pipe Bracket On Oil R - 903934 | $51.62 | Special order, ships in 7-14 days |
| 12 | 338263 | Ferrari Clip - 338263 | Superseded | Order 332428 instead |
| 13 | 895545 | Ferrari Kaiser Pipe Bracket On Stud - 895545 | $27.03 | Special order, ships in 7-14 days |
| 14 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 15 | 792292 | Ferrari Brake Servo Bracket - 792292 | $71.28 | Special order, ships in 7-14 days |
| 16 | 80874100 | Ferrari Screw Torx - 80874100 | $1.97 | Available, ships in 3-6 days |
| 17 | 239094 | Ferrari Clip - 239094 | $2.59 | Special order, ships in 7-14 days |
