Ferrari 812 Competizione — [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE (diagram 0095)

Exploded view of the [vehicle trim] - e.01.01 - structures and elements front of vehicle on the Ferrari 812 Competizione, with 111 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

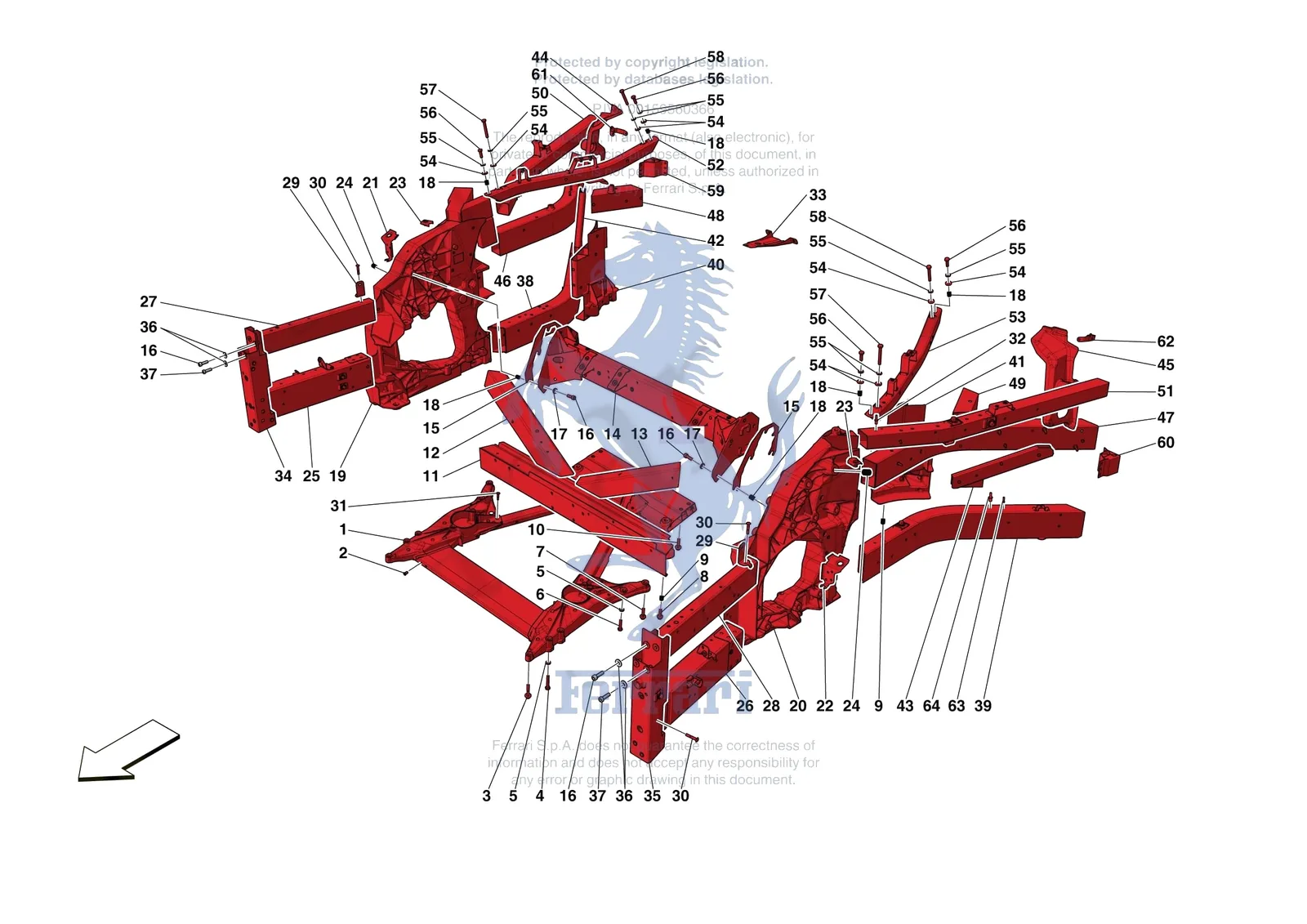

Ferrari 812 Competizione [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
270670Ferrari Connection Between Pillar And LH Lower Front - 270670$391.61Special order, ships in 7-14 days
270672Ferrari Connection Between Pillar And RH Lower Front - 270672SupersededOrder 985270672 instead
278223Ferrari Engine Subframe - 278223SupersededOrder 985278223 instead
321040Ferrari Front Subframe Cross-Member - 321040SupersededOrder 985321040 instead
274282Ferrari LH Central External Diagonal Firewall Brace LHD - 274282$1,517.60Special order, ships in 7-14 days
276429Ferrari LH Central Internal Diagonal Firewall Brace LHD - 276429$489.54Special order, ships in 7-14 days
330036Ferrari LH Front Crash Box Cross Mem - 330036SupersededOrder 985330036 instead
321031Ferrari LH Front Diagonal Subframe B - 321031SupersededOrder 985321031 instead
279756Ferrari LH Front Lower Frame - 279756$4,212.49Special order, ships in 7-14 days
322303Ferrari LH Front Suspension Mount Ca - 322303SupersededOrder 985925037 instead
334384Ferrari LH Internal Engine Compartme - 334384SupersededOrder 985925052 instead
293716Ferrari LH Lower Diagonal Firewall Brace RHD - 293716$1,101.47Special order, ships in 7-14 days
330504Ferrari LH Lower Front Strut - 330504SupersededOrder 985330504 instead
273909Ferrari LH Outer Firewall Endpiece - 273909$342.66Special order, ships in 7-14 days
330901Ferrari LH Upper External Diagonal F - 330901SupersededOrder 985330901 instead
334339Ferrari LH Upper Front Strut - 334339SupersededOrder 985334339 instead
320985Ferrari Removable Strut Tower Connec - 320985SupersededOrder 985320985 instead
327883Ferrari RH Central External Diagonal - 327883SupersededOrder 985327883 instead
336411Ferrari RH Central External Diagonal - 336411SupersededOrder 985336411 instead
276432Ferrari RH Central Internal Diagonal Firewall Brace - 276432SupersededOrder 985276432 instead
330038Ferrari RH Front Crash Box Cross Mem - 330038SupersededOrder 985330038 instead
325875Ferrari RH Front Diagonal Subframe B - 325875SupersededOrder 985325875 instead
279757Ferrari RH Front Lower Frame - 279757SupersededOrder 985279757 instead
322309Ferrari RH Front Suspension Mount Ca - 322309SupersededOrder 985925088 instead
334389Ferrari RH Internal Engine Compartme - 334389SupersededOrder 985925066 instead
743705Ferrari RH Internal Engine Compartme - 743705SupersededOrder 985925092 instead
273379Ferrari RH Lower Diagonal Firewall Brace LHD - 273379SupersededOrder 985273379 instead
330509Ferrari RH Lower Front Strut - 330509SupersededOrder 985330509 instead
273908Ferrari RH Outer Firewall Endpiece - 273908$342.66Special order, ships in 7-14 days
330097Ferrari RH Upper External Diagonal F - 330097SupersededOrder 985330097 instead
336498Ferrari RH Upper External Diagonal F - 336498SupersededOrder 985336498 instead
334341Ferrari RH Upper Front Strut - 334341SupersededOrder 985334341 instead
16237374Ferrari Screw 10x1.25x70 - 16237374SupersededOrder 15888821 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
10519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
1985278223Ferrari Engine Subframe - 985278223$19,857.79Contact us to order
2248153Ferrari Rivet - 248153$2.82Available, ships in 3-6 days
3271283Ferrari Screw 10x70 - 271283$12.21Special order, ships in 7-14 days
415888821Ferrari Bolt - 15888821$8.53Available, ships in 3-6 days
415888824Ferrari Bolt - 15888824SupersededOrder 15888821 instead
512641024Ferrari Washer - 12641024$3.91Available, ships in 3-6 days
615888724Ferrari Screw - 15888724$2.01Available, ships in 3-6 days
7277723Ferrari Screw 10x55 - 277723$12.21Special order, ships in 7-14 days
8299582Ferrari Screw 10X1.25X40 - 299582$2.82Special order, ships in 7-14 days
9252200Ferrari Threaded Insert - 252200$18.32Special order, ships in 7-14 days
1016288724Ferrari Screw 10x40 - 16288724$28.39Special order, ships in 7-14 days
11985321040Ferrari Front Subframe Cross-Member - 985321040$1,826.53Special order, ships in 7-14 days
12985325875Ferrari RH Front Diagonal Subframe B - 985325875$663.86Special order, ships in 7-14 days
13985321031Ferrari LH Front Diagonal Subframe B - 985321031$663.86Special order, ships in 7-14 days
14985320985Ferrari Removable Strut Tower Connec - 985320985$2,973.97Special order, ships in 7-14 days
15325312Ferrari Distanziale Traversa Duomi - 325312$39.31Special order, ships in 7-14 days
1614814434Ferrari Screw M8 x 25 - 14814434$0.90Available, ships in 3-6 days
1710519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
18252199Ferrari Threaded Insert - 252199$34.40Special order, ships in 7-14 days
19985925088Ferrari RH Front Suspension Mount Ca - 985925088$31,712.18Contact us to order
20985925037Ferrari LH Front Suspension Mount Ca - 985925037$31,701.34Contact us to order
21336227Ferrari RH Brake Hose Bracket - 336227$36.86Special order, ships in 7-14 days
22336225Ferrari LH Hose Bracket - 336225$36.86Special order, ships in 7-14 days
23284518Ferrari Front Accelerometer Mounting Bracket - 284518$16.69Special order, ships in 7-14 days
24252486Ferrari Threaded Insert - 252486$66.35Special order, ships in 7-14 days
25985330509Ferrari RH Lower Front Strut - 985330509$1,426.08Special order, ships in 7-14 days
26985330504Ferrari LH Lower Front Strut - 985330504$1,180.21Special order, ships in 7-14 days
27985334341Ferrari RH Upper Front Strut - 985334341$663.86Special order, ships in 7-14 days
28985334339Ferrari LH Upper Front Strut - 985334339$663.86Special order, ships in 7-14 days
29337561Ferrari Injection Connector Fastener - 337561$31.93Special order, ships in 7-14 days
30204430Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430$2.82Available, ships in 3-6 days
32225794Ferrari Rivet - 225794$2.59Special order, ships in 7-14 days
33811263Ferrari Underwindscreen Tray Bracket - 811263$88.49Special order, ships in 7-14 days
34985330038Ferrari RH Front Crash Box Cross Mem - 985330038$2,154.37Special order, ships in 7-14 days
35985330036Ferrari LH Front Crash Box Cross Mem - 985330036$2,271.45Special order, ships in 7-14 days
3612646701Ferrari Washer D. 8.45 - 20 x 2 - 12646701$0.17Available, ships in 3-6 days
3713028734Ferrari Allen Screw M8 x 25 - 13028734$0.92Available, ships in 3-6 days
38985273379Ferrari RH Lower Diagonal Firewall Brace LHD - 985273379$1,745.74Special order, ships in 7-14 days
39985293716Ferrari LH Lower Diagonal Firewall Brace RHD - 985293716$1,745.74Special order, ships in 7-14 days
40985279757Ferrari RH Front Lower Frame - 985279757$10,390.23Contact us to order
41985279756Ferrari LH Front Lower Frame - 985279756$10,390.23Contact us to order
42985270672Ferrari Connection Between Pillar And RH Lower Front - 985270672$565.49Special order, ships in 7-14 days
43985270670Ferrari Connection Between Pillar And LH Lower Front - 985270670$565.49Special order, ships in 7-14 days
44273911Ferrari RH Outer Firewall Endpiece - 273911$216.35Special order, ships in 7-14 days
45273894Ferrari LH Outer Firewall Endpiece - 273894$216.35Special order, ships in 7-14 days
46985327883Ferrari RH Central External Diagonal - 985327883$1,081.84Special order, ships in 7-14 days
46985336411Ferrari RH Central External Diagonal - 985336411$1,920.19Special order, ships in 7-14 days
47336350Ferrari LH Central External Diagonal - 336350$1,106.43Special order, ships in 7-14 days
47985336350Ferrari LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE - 985336350Price on requestContact us for price and availability
47985274282Ferrari LH Central External Diagonal Firewall Brace LHD - 985274282$1,524.44Special order, ships in 7-14 days
48985276431Ferrari RH Central Internal Diagonal - 985276431$368.79Special order, ships in 7-14 days
48985276432Ferrari RH Central Internal Diagonal Firewall Brace - 985276432$786.79Special order, ships in 7-14 days
49985291615Ferrari LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE - 985291615Price on requestContact us for price and availability
49985276429Ferrari LH Central Internal Diagonal Firewall Brace LHD - 985276429$786.79Special order, ships in 7-14 days
49291615Ferrari LH Central Internal Diagonal Firewall Brace RHD - 291615$663.86Special order, ships in 7-14 days
50985330097Ferrari RH Upper External Diagonal F - 985330097$1,475.26Special order, ships in 7-14 days
50985336498Ferrari RH Upper External Diagonal F - 985336498$1,920.19Special order, ships in 7-14 days
51985330901Ferrari LH Upper External Diagonal F - 985330901$1,475.26Special order, ships in 7-14 days
52985925066Ferrari RH Internal Engine Compartme - 985925066$1,131.03Special order, ships in 7-14 days
52985925092Ferrari RH Internal Engine Compartme - 985925092$1,278.55Special order, ships in 7-14 days
53985925052Ferrari LH Internal Engine Compartme - 985925052$1,278.55Special order, ships in 7-14 days
5412646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
5511194074Ferrari Washer 8.6-16x1.9 - 11194074$0.08Available, ships in 3-6 days
5616043634Ferrari Screw M8 x 25 - 16043634$0.40Available, ships in 3-6 days
5716044434Ferrari Screw - 16044434$3.68Available, ships in 3-6 days
5816044334Ferrari Screw - 16044334$15.93Special order, ships in 7-14 days
59273211Ferrari RH Front Door Lower Hinge Mounting - 273211$762.20Special order, ships in 7-14 days
60273220Ferrari LH Front Door Lower Hinge Mounting - 273220$762.20Special order, ships in 7-14 days
61286137Ferrari RH Belt Guide Bracket - 286137$442.56Special order, ships in 7-14 days
62286136Ferrari LH Belt Retractor Bracket - 286136$442.56Special order, ships in 7-14 days
63175766Ferrari PIN - 175766Price on requestContact us for price and availability
64244345Ferrari RIVET - 244345Price on requestContact us for price and availability
