Ferrari 812 Competizione — [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES (diagram 0165)

Exploded view of the [vehicle trim] - e.53 - other interior trim accessories on the Ferrari 812 Competizione, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

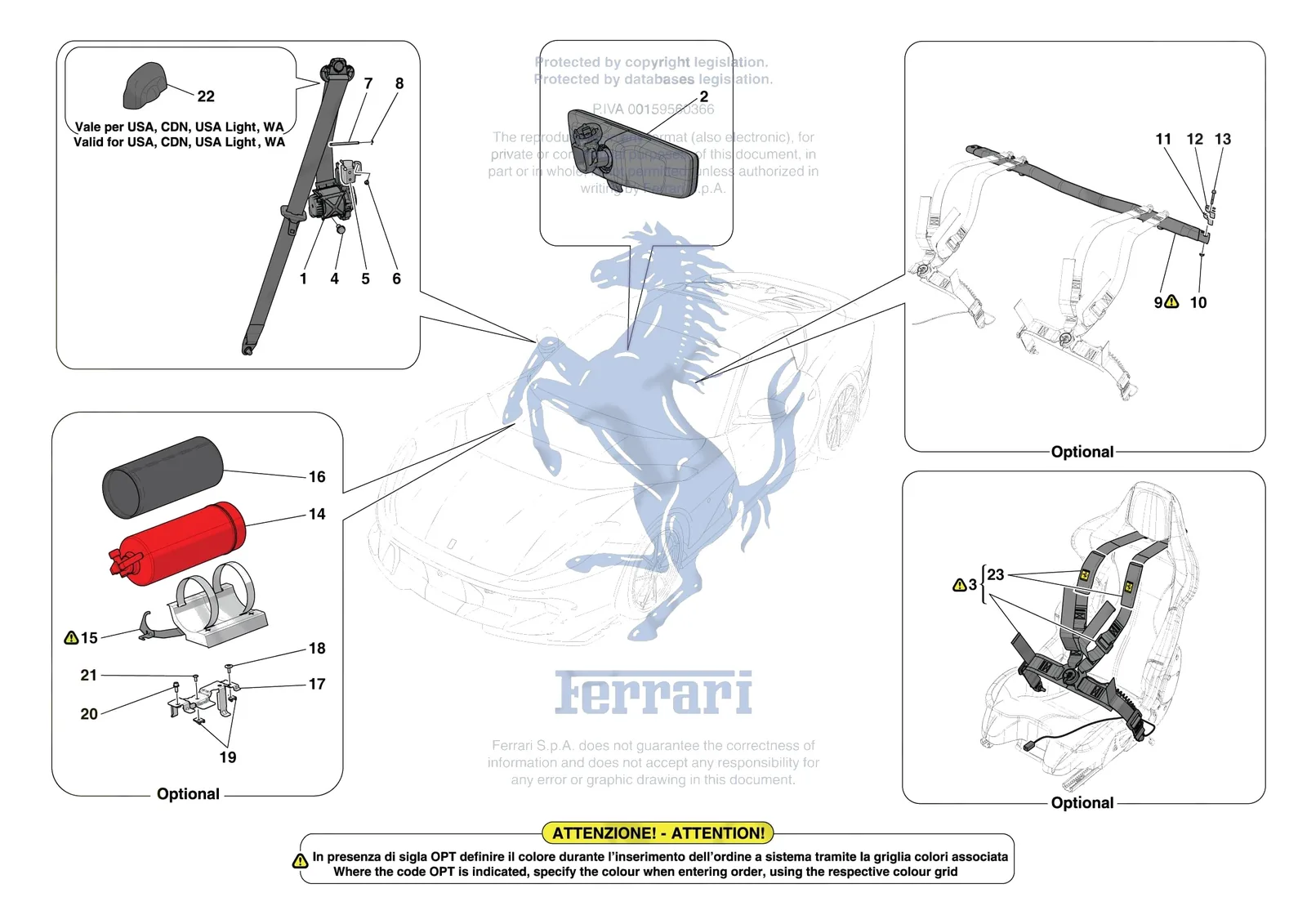

Ferrari 812 Competizione [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
82654500Ferrari 2KG Fire Extinguisher - 82654500SupersededOrder 922429 instead
83490400Ferrari 2KG Fire Extinguisher - 83490400SupersededOrder 922429 instead
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
83983300Ferrari Fire Extinguisher Mounting Bracket LHD - 83983300$514.01Special order, ships in 7-14 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
2862825Ferrari Compl. Rear View Mirror - 862825$4,781.26Special order, ships in 7-14 days
2862826Ferrari Compl. Rear View Mirror - 862826$3,665.56Special order, ships in 7-14 days
2862854Ferrari Compl. Rear View Mirror - 862854$4,781.26Special order, ships in 7-14 days
2862855Ferrari Compl. Rear View Mirror - 862855$4,781.26Special order, ships in 7-14 days
3827164Ferrari LH 4-Point Seat Harness - 827164$6,479.54Special order, ships in 7-14 days
3827103Ferrari RH 4-Point Seat Harness - 827103$6,479.54Special order, ships in 7-14 days
483911900Ferrari Retractor Screw - 83911900$3.47Special order, ships in 7-14 days
584716100Ferrari LH Retractor Trim - 84716100$41.76Special order, ships in 7-14 days
584716000Ferrari RH Retractor Trim - 84716000$41.76Special order, ships in 7-14 days
685692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
769129500Ferrari Transmission - 69129500$9.56Special order, ships in 7-14 days
811087776Ferrari Circlip - 11087776$0.13Available, ships in 3-6 days
988159400Ferrari Compl. Cross Piece For 4-Point Seat Harness - 88159400$4,475.02Special order, ships in 7-14 days
989250000Ferrari COMPL. CROSS PIECE FOR 4-POINT SEAT HARNESS - 89250000$5,795.74Special order, ships in 7-14 days
10235828Ferrari Nut - 235828$45.87Special order, ships in 7-14 days
1187666700Ferrari 0.5Mm Shim - 87666700$76.19Special order, ships in 7-14 days
1287666600Ferrari 1Mm Shim - 87666600$76.19Special order, ships in 7-14 days
1316287821Ferrari Bolt - 16287821$6.75Available, ships in 3-6 days
1316287834Ferrari Screw - 16287834SupersededOrder 16287821 instead
14874687Ferrari 2Kg Fire Extinguisher - 874687$2,702.34Special order, ships in 7-14 days
14922429Ferrari 2KG FIRE EXTINGUISHER - 922429$1,081.84Special order, ships in 7-14 days
15856704Ferrari 2 KG FIRE EXTINGUISHER - 856704$1,499.85Special order, ships in 7-14 days
15856705Ferrari 2 KG FIRE EXTINGUISHER - 856705$1,647.38Special order, ships in 7-14 days
1785448800Ferrari Fire Extinguisher Mounting Bracket LHD - 85448800$103.25Special order, ships in 7-14 days
1789140200Ferrari Mounting Bracket For Fire Ex - 89140200$103.25Special order, ships in 7-14 days
18256490Ferrari Screw TBEI M5 x 16 - 256490$3.91Available, ships in 3-6 days
1984583500Ferrari Fastener clip - 84583500$2.59Available, ships in 3-6 days
20248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
2185692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
2285638600Ferrari Seat Belt Guide Screw Cover - 85638600$88.10In stock
23949710Ferrari RH-LH Shoulder Cover Kit - 949710$417.97Special order, ships in 7-14 days
