Ferrari 812 CompetizioneA — [ENGINE] - B.31 - ELECTRIC STARTER MOTOR (diagram 0036)

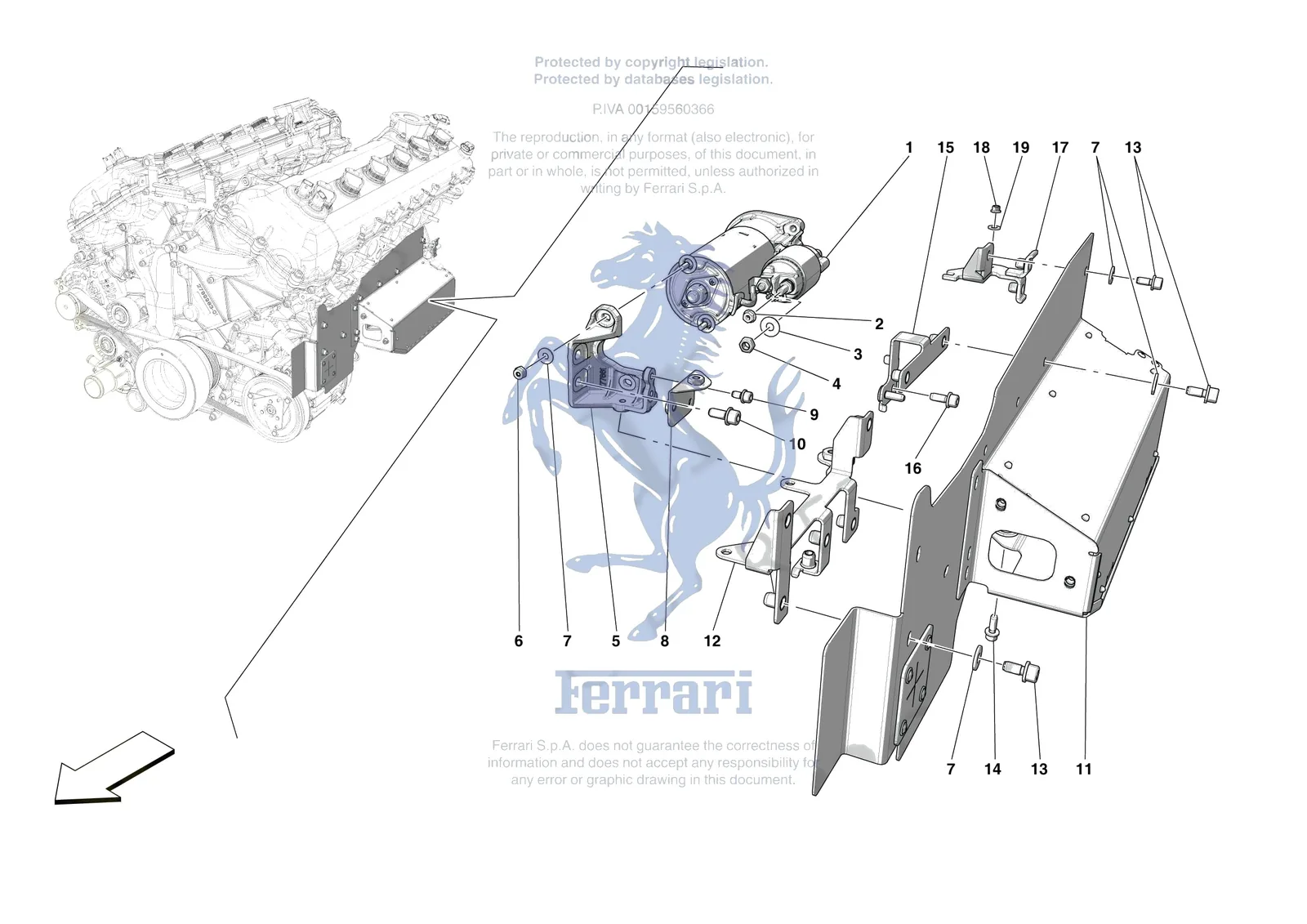

Exploded view of the [engine] - b.31 - electric starter motor on the Ferrari 812 CompetizioneA, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [ENGINE] - B.31 - ELECTRIC STARTER MOTOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0036.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 865799 | Ferrari Complete Starter Motor Heart Shield - 865799 | Superseded | Order 923106 instead | |
| 16104421 | Ferrari Nut GTB - 16104421 | Superseded | Order 101139 instead | |
| 16104425 | Ferrari Nyloc Nut - 16104425 | Superseded | Order 101139 instead | |
| 12575411 | Ferrari Nyloc Nut M6 x 6 - 12575411 | Superseded | Order 12575421 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 297969 | Ferrari Starter Motor - 297969 | Superseded | Order 962187 instead | |
| 257521 | Ferrari Starter Motor Mounting Bracket - 257521 | Superseded | Order 277661 instead | |
| 848939 | Ferrari Starter Motor Shield Mounting Bracket - 848939 | Superseded | Order 936319 instead | |
| 1 | 962187 | Ferrari Starter Motor - 962187 | $1,153.15 | Special order, ships in 7-14 days |
| 2 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 3 | 12625221 | Ferrari Washer - 12625221 | $0.17 | Available, ships in 3-6 days |
| 3 | 12625224 | Ferrari Washer - 12625224 | $0.13 | Available, ships in 3-6 days |
| 4 | 101139 | Ferrari Nyloc Nut 8x1.25mm - 101139 | $0.60 | Available, ships in 3-6 days |
| 5 | 277661 | Ferrari Starter Motor Mounting Bracket - 277661 | $115.02 | Special order, ships in 7-14 days |
| 6 | 12575421 | Ferrari Nyloc Nut M6 x 6 - 12575421 | $0.40 | Available, ships in 3-6 days |
| 6 | 102741 | Ferrari/Maserati Nyloc Nut M6 - 102741 | $0.45 | In stock |
| 9 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 10 | 248471 | Ferrari Screw 8x20 - 248471 | $2.07 | Available, ships in 3-6 days |
| 11 | 923106 | Ferrari Paratia Anticalore Mot. Avv. - 923106 | $783.26 | Special order, ships in 7-14 days |
| 13 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 13 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 14 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 16 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 17 | 936319 | Ferrari Starter Motor Shield Mounting Bracket - 936319 | $154.18 | Special order, ships in 7-14 days |
| 18 | 160472 | Ferrari Nut - 160472 | $4.35 | Special order, ships in 7-14 days |
| 19 | 12637824 | Ferrari Washer - 12637824 | $0.13 | Available, ships in 3-6 days |
