Ferrari 812 CompetizioneA — [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM (diagram 0039)

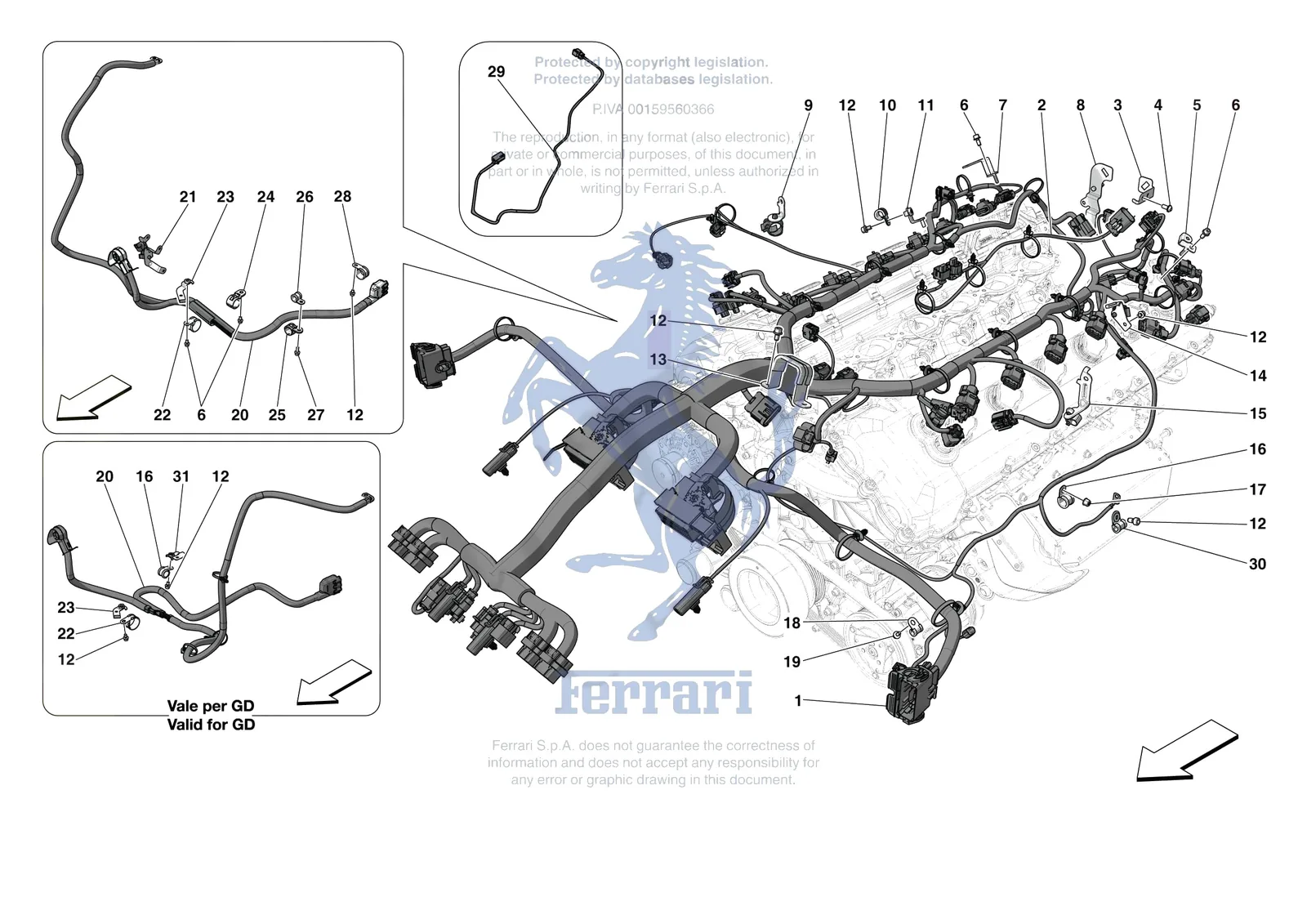

Exploded view of the [engine] - b.34 - engine electrical system on the Ferrari 812 CompetizioneA, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0039.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 291225 | Ferrari P clip Bracket With Sheath - 291225 | $7.86 | Special order, ships in 7-14 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 2 | 840894 | Ferrari Manifold Wiring Harness - 840894 | $149.96 | Special order, ships in 7-14 days |
| 3 | 840937 | Ferrari Disconnector Fastener Bracke - 840937 | $34.40 | Special order, ships in 7-14 days |
| 4 | 306938 | Ferrari Screw - 306938 | $0.82 | Special order, ships in 7-14 days |
| 5 | 840921 | Ferrari Injection Cable Fastener Bra - 840921 | $31.93 | Special order, ships in 7-14 days |
| 6 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 6 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 7 | 840897 | Ferrari Injection Cable Fastener Bra - 840897 | $34.40 | Special order, ships in 7-14 days |
| 10 | 10441390 | Ferrari P clip Bracket With Sheath D.12 - 10441390 | $1.02 | Available, ships in 3-6 days |
| 11 | 341763 | Ferrari CABLE FASTENER BRACKET - 341763 | $36.86 | Special order, ships in 7-14 days |
| 12 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 14 | 325831 | Ferrari Wiring Harness Mounting Bracket - 325831 | $27.03 | Special order, ships in 7-14 days |
| 16 | 10441590 | Ferrari P Clip Bracket With Sheath 16mm - 10441590 | $0.98 | Available, ships in 3-6 days |
| 17 | 228265 | Ferrari Nut 6x1x9 - 228265 | $0.40 | Available, ships in 3-6 days |
| 18 | 10441290 | Ferrari P Clip Bracket With Sheath 28mm D.10 - 10441290 | $1.02 | Available, ships in 3-6 days |
| 18 | 10441190 | Ferrari P clip Bracket With Sheath D8mm - 10441190 | $0.90 | Available, ships in 3-6 days |
| 19 | 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days |
| 21 | 791668 | Ferrari Compl. Cable Mounting Bracke - 791668 | $78.66 | Special order, ships in 7-14 days |
| 22 | 10442290 | Ferrari P Clip Bracket With Sheath - 10442290 | $1.42 | Special order, ships in 7-14 days |
| 24 | 244225 | Ferrari Clip - 244225 | $9.62 | Special order, ships in 7-14 days |
| 25 | 244223 | Ferrari Clip - 244223 | $8.93 | Special order, ships in 7-14 days |
| 26 | 10441490 | Ferrari/Maserati Retaining Clip - 10441490 | $1.35 | In stock |
| 27 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 28 | 10441990 | Ferrari P Clip Bracket With Sheath - 10441990 | $1.42 | Available, ships in 3-6 days |
