Ferrari 812 CompetizioneA — [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES (diagram 0049)

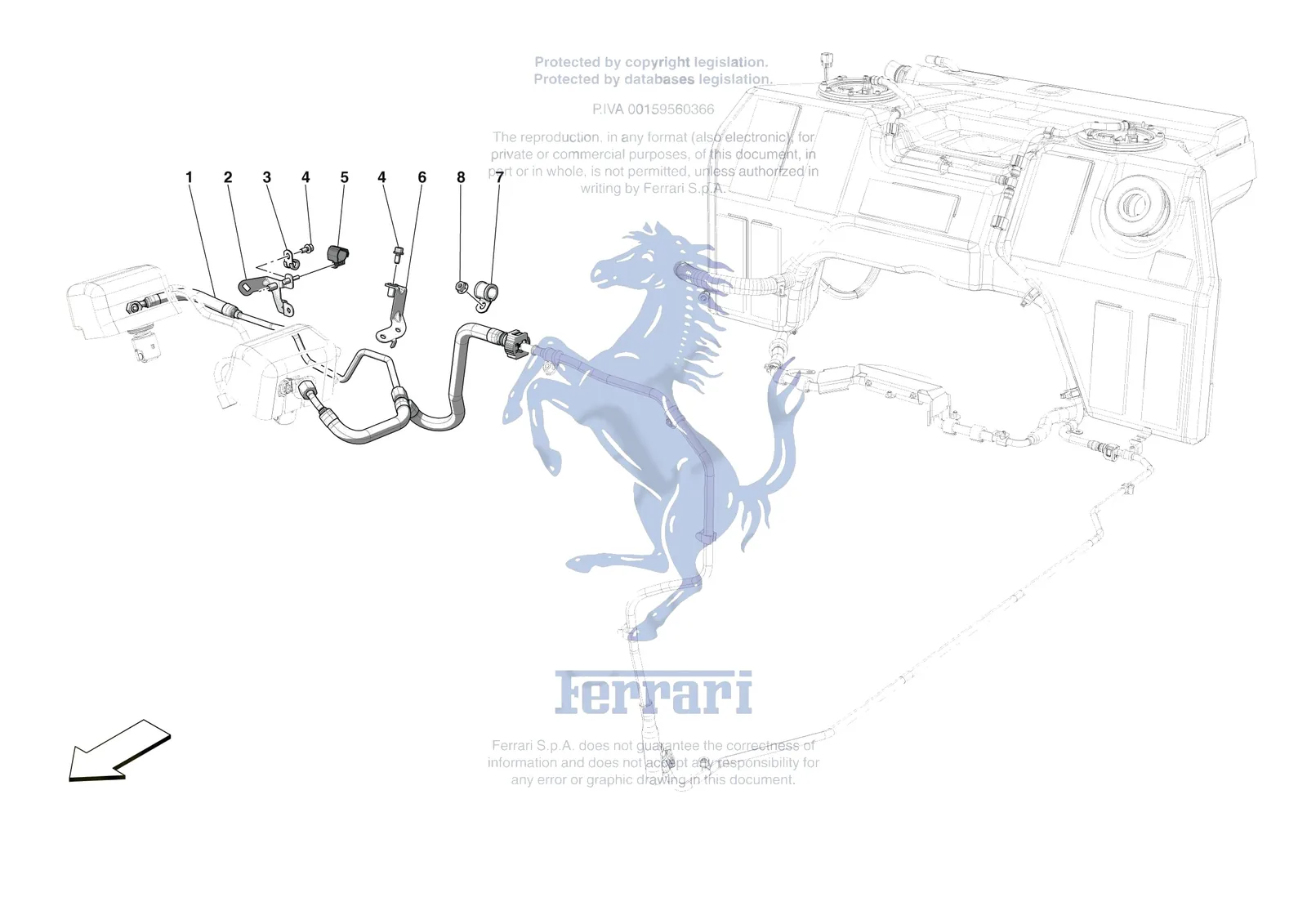

Exploded view of the [mechanical system] - d.2 - engine fuel delivery pipes on the Ferrari 812 CompetizioneA, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0049.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 332428 | Ferrari Clip - 332428 | $2.61 | Special order, ships in 7-14 days | |
| 340200 | Ferrari Low Pressure Fuel Pipe - 340200 | $1,419.67 | Special order, ships in 7-14 days | |
| 769765 | Ferrari Low Pressure Fuel Pipe - 769765 | Superseded | Order 916308 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 916308 | Ferrari Low Pressure Fuel Pipe - 916308 | $1,450.67 | Special order, ships in 7-14 days |
| 1 | 964808 | Ferrari Low Pressure Fuel Pipe - 964808 | $1,426.08 | Special order, ships in 7-14 days |
| 2 | 895385 | Ferrari Bracket - 895385 | $76.19 | Special order, ships in 7-14 days |
| 3 | 67190200 | Ferrari Bracket With Sheath 14mm - 67190200 | $3.91 | Special order, ships in 7-14 days |
| 4 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 4 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 5 | 338263 | Ferrari Clip - 338263 | Superseded | Order 332428 instead |
| 6 | 969197 | Ferrari Bracket - 969197 | $44.24 | Special order, ships in 7-14 days |
| 7 | 10441490 | Ferrari/Maserati Retaining Clip - 10441490 | $1.35 | In stock |
| 8 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
