Ferrari 812 CompetizioneA — [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION (diagram 0056)

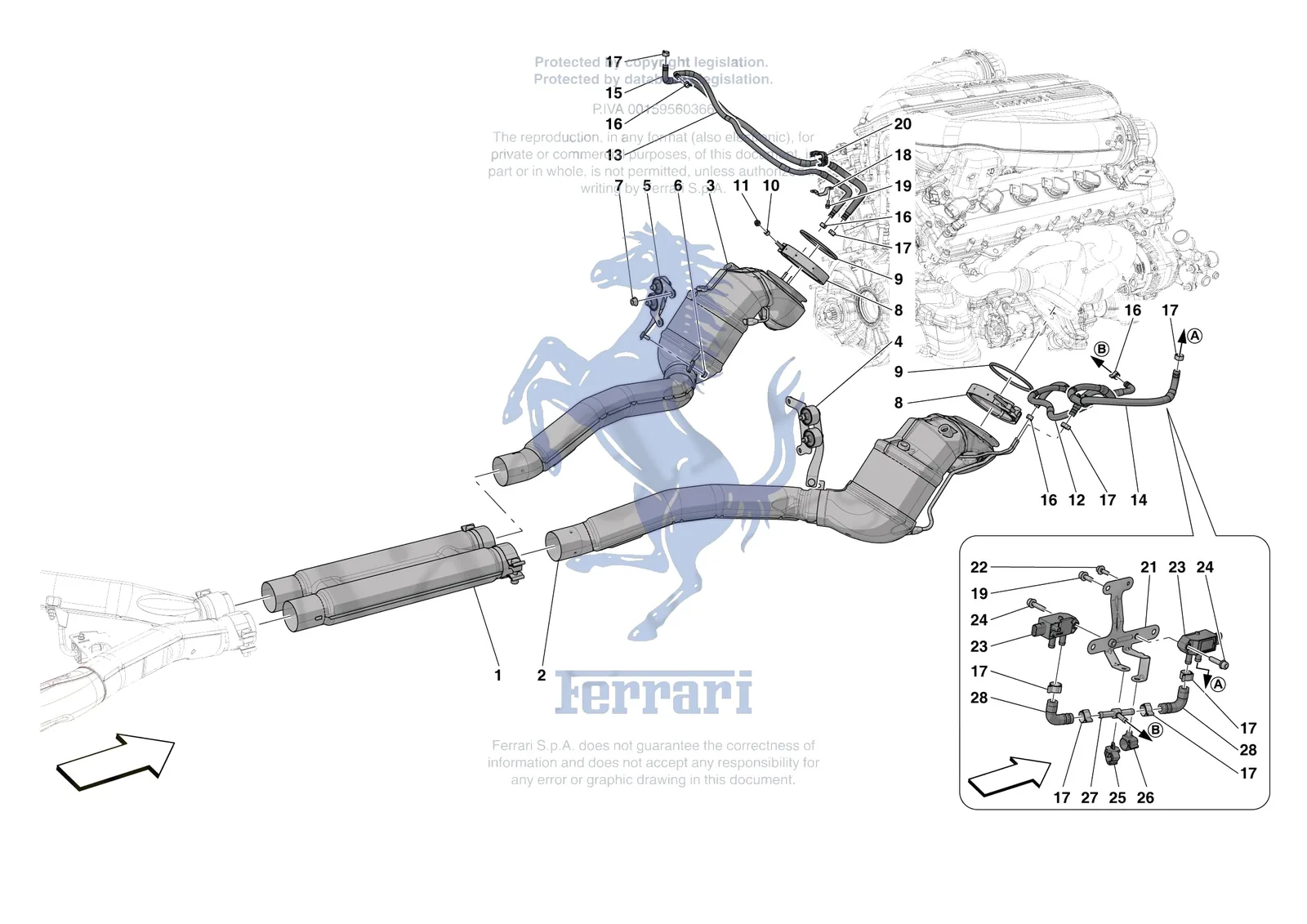

Exploded view of the [mechanical system] - d.08.01 - exhaust system - front section on the Ferrari 812 CompetizioneA, with 32 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 812 CompetizioneA [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/812-competizionea/0056.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 198253 | Ferrari Clip - 198253 | $7.40 | Special order, ships in 7-14 days | |
| 813215 | Ferrari GPF Sensor Bracket - 813215 | $66.35 | Special order, ships in 7-14 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 1 | 290883 | Ferrari Central Extension - 290883 | $1,893.26 | Special order, ships in 7-14 days |
| 2 | 774708 | Ferrari RH Catalytic Converter - 774708 | $31,519.10 | Special order, ships in 7-14 days |
| 3 | 774710 | Ferrari LH Catalytic Converter - 774710 | $31,608.04 | Special order, ships in 7-14 days |
| 4 | 813392 | Ferrari RH Catalytic Converter Bracket - 813392 | $368.79 | Special order, ships in 7-14 days |
| 5 | 813393 | Ferrari LH Catalytic Converter Bracket - 813393 | $368.79 | Special order, ships in 7-14 days |
| 6 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 7 | 14059421 | Ferrari Flanged Nut 10x1.25 - 14059421 | $0.92 | Available, ships in 3-6 days |
| 8 | 290743 | Ferrari V-Clamp For Fastening Catalytic Converter to Manifold - 290743 | $164.72 | Special order, ships in 7-14 days |
| 9 | 275465 | Ferrari Gasket - 275465 | $103.25 | Available, ships in 3-6 days |
| 10 | 292946 | Ferrari 812/F12 Exhaust Clamp Shim/Spacer - 292946 | $9.75 | In stock |
| 11 | 292945 | Ferrari Nut M8 x 1.25 - 292945 | $28.39 | Special order, ships in 7-14 days |
| 12 | 874968 | Ferrari Tubo Gommadx Cpl Guaina D.5- - 874968 | $194.22 | Special order, ships in 7-14 days |
| 13 | 874971 | Ferrari Tubo Gommasx Cpl Guaina D.5- - 874971 | $191.76 | Special order, ships in 7-14 days |
| 14 | 874969 | Ferrari Tubo Gommadx Cpl Guaina D.7- - 874969 | $218.81 | Special order, ships in 7-14 days |
| 15 | 874972 | Ferrari Tubo Gommasx Cpl Guaina D.7- - 874972 | $216.35 | Special order, ships in 7-14 days |
| 16 | 13126970 | Ferrari Collar - 13126970 | $3.03 | Available, ships in 3-6 days |
| 17 | 13125570 | Ferrari Collar - 13125570 | Superseded | Order 13432070 instead |
| 18 | 863467 | Ferrari Pipe Mounting Bracket - 2 Pipes D.16 - 863467 | $29.48 | Special order, ships in 7-14 days |
| 19 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 20 | 866152 | Ferrari Clip - 866152 | $1.36 | Special order, ships in 7-14 days |
| 21 | 772695 | Ferrari GPF Sensor Bracket - 772695 | $63.90 | Special order, ships in 7-14 days |
| 22 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 23 | 340691 | Ferrari Pressure Sensor - 340691 | $196.67 | Special order, ships in 7-14 days |
| 24 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 25 | 206536 | Ferrari Clip D.14 - 206536 | $0.92 | Special order, ships in 7-14 days |
| 27 | 807844 | Ferrari Three Way Connector 8-8-6 - 807844 | $120.46 | Special order, ships in 7-14 days |
| 28 | 806791 | Ferrari Tubo Gomma D.7-14 90 - 806791 | $34.40 | Special order, ships in 7-14 days |
