Ferrari 812 CompetizioneA — [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR (diagram 0059)

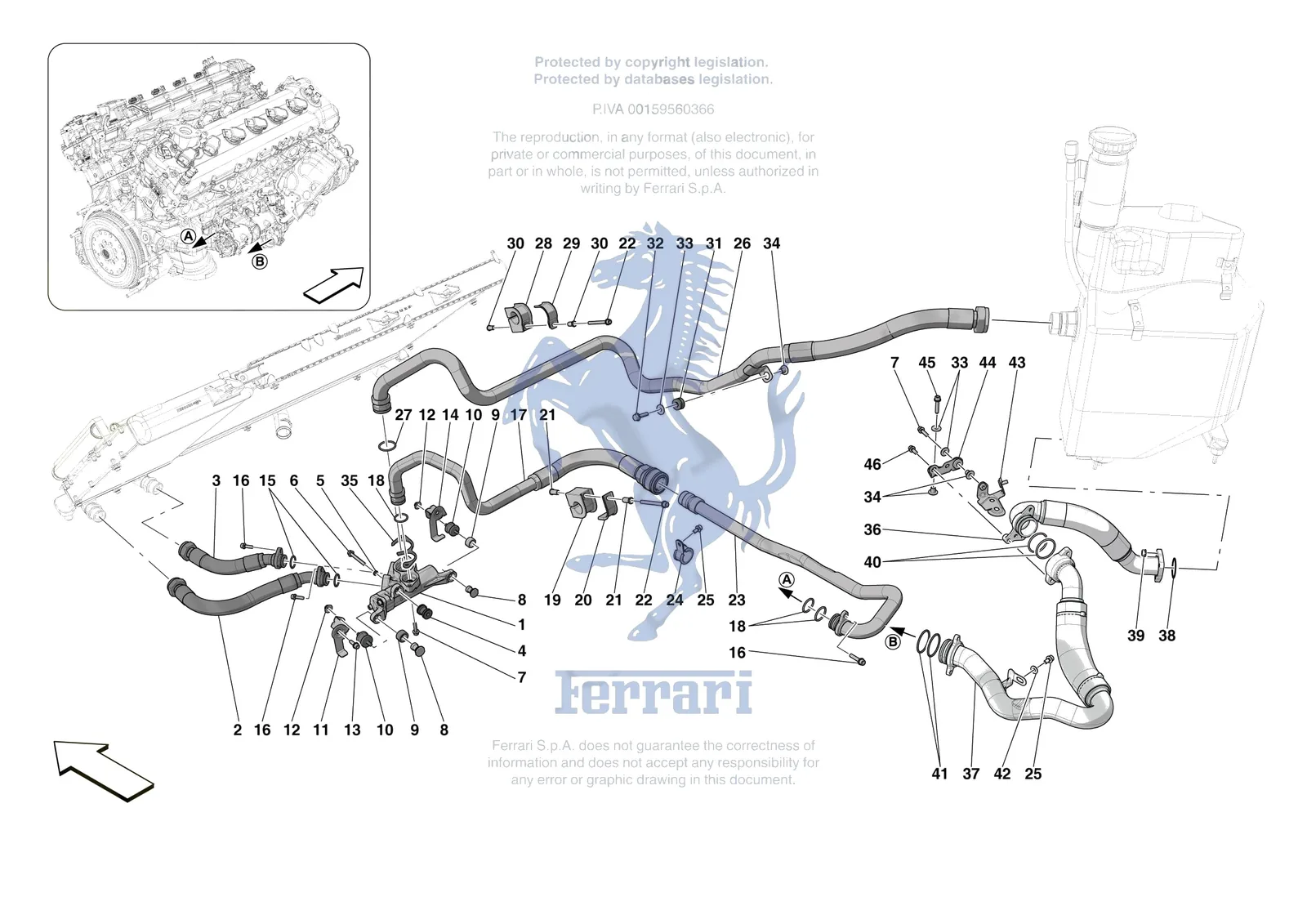

Exploded view of the [mechanical system] - d.10 - oil pipes and engine oil level sensor on the Ferrari 812 CompetizioneA, with 60 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 812 CompetizioneA [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
289837Ferrari Bushing - 289837$15.43Special order, ships in 7-14 days
294902Ferrari Damped Mounting - 294902SupersededOrder 267300 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
282404Ferrari Screw 6x65 - 282404SupersededOrder 255495 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1316675Ferrari Oil Thermostat Complete - 316675$1,622.78Special order, ships in 7-14 days
2317220Ferrari Oil Delivery Pipe From Valve To Radiator - 317220$713.04Special order, ships in 7-14 days
3315531Ferrari Oil Return Pipe From Radiator To Valve - 315531$688.45Special order, ships in 7-14 days
4267300Ferrari Mount Bushing - 267300$13.18In stock
5341672Ferrari Spacer - 341672$10.91Special order, ships in 7-14 days
6231625Ferrari Screw 6x50 - 231625$1.25Available, ships in 3-6 days
7231620Ferrari/Maserati Screw - 231620$0.58In stock
8341649Ferrari Pin - 341649$63.90Special order, ships in 7-14 days
9341666Ferrari Spacer - 341666$10.91Special order, ships in 7-14 days
10142202Ferrari Rubber Mount - 142202$15.95In stock
11341699Ferrari Bracket - 341699$36.86Special order, ships in 7-14 days
1214039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
1215896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
13231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
14341700Ferrari Bracket - 341700$39.31Special order, ships in 7-14 days
15122791Ferrari O-Ring - 122791$4.12Available, ships in 3-6 days
16231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
17311647Ferrari Engine Oil Return Pipe From Disconnecter Union To Thermostat Valve - 311647$1,671.97Special order, ships in 7-14 days
18121903Ferrari Gasket - 121903$1.48Available, ships in 3-6 days
19315529Ferrari Pillory Block - 315529$76.19Special order, ships in 7-14 days
20315539Ferrari Retainer Block Fastener Plate - 315539$44.24Special order, ships in 7-14 days
21315649Ferrari Flanged Bushing - 315649$8.49Special order, ships in 7-14 days
22255495Ferrari Screw 6x65 - 255495$1.82Special order, ships in 7-14 days
23311558Ferrari Engine Oil Return Pipe From Engine To Disconnecter Union - 311558$786.79Special order, ships in 7-14 days
24322190Ferrari Bracket - 322190$66.35Special order, ships in 7-14 days
25231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
26311743Ferrari Engine Oil Return Pipe From Valve To Reservoir - 311743$1,131.03Special order, ships in 7-14 days
27104212Ferrari O-Ring - 104212$1.10In stock
28315530Ferrari Pillory Block - 315530$76.19Special order, ships in 7-14 days
29315540Ferrari Retainer Block Fastener Plate - 315540$44.24Special order, ships in 7-14 days
30304075Ferrari Bushing - 304075$12.21Special order, ships in 7-14 days
31103549Ferrari Grommet - 103549$2.80In stock
3216286224Ferrari Screw M6x25 - 16286224$4.77Special order, ships in 7-14 days
3312643724Ferrari/Maserati Washer - 12643724$0.20In stock
34149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
35311723Ferrari Engine Oil Pipe Retainer Fork - 311723$164.72Special order, ships in 7-14 days
36792663Ferrari Oil Pipe From Tank - 792663$1,598.19Special order, ships in 7-14 days
37792664Ferrari Oil Pipe From Disconnecter U - 792664$1,770.31Special order, ships in 7-14 days
38862084Ferrari Gasket - 862084$7.84Available, ships in 3-6 days
3914040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
40934034Ferrari O-Ring - 934034$2.82Special order, ships in 7-14 days
41101044Ferrari Water Pump O-Ring - 101044$2.41In stock
42276781Ferrari Washer - 276781$0.79Special order, ships in 7-14 days
43799107Ferrari Bracket Fastening Oil Pipe T - 799107$66.35Special order, ships in 7-14 days
44939276Ferrari Compl. Flange On Oil Pipe - 939276$88.49Special order, ships in 7-14 days
45231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
46231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
