Ferrari 812 CompetizioneA — [MECHANICAL SYSTEM] - D.11 - FUEL TANK (diagram 0060)

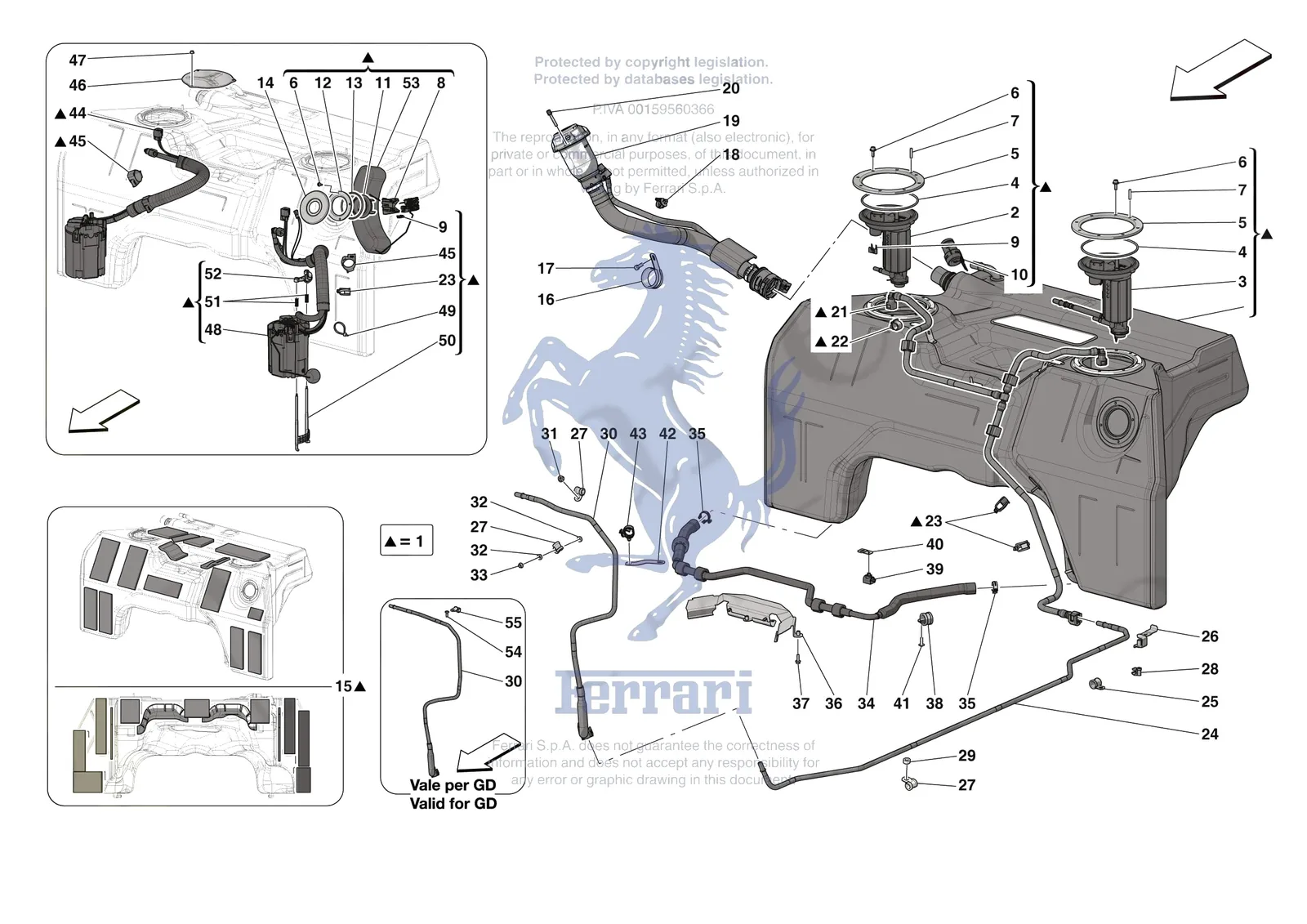

Exploded view of the [mechanical system] - d.11 - fuel tank on the Ferrari 812 CompetizioneA, with 72 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 812 CompetizioneA [MECHANICAL SYSTEM] - D.11 - FUEL TANK exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
198253Ferrari Clip - 198253$7.40Special order, ships in 7-14 days
222826Ferrari Clip - 222826$5.44Special order, ships in 7-14 days
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
282074Ferrari Fuel Delivery Pipe Front Section LHD - 282074$129.70Special order, ships in 7-14 days
289734Ferrari Fuel Delivery Pipe Front Section RHD - 289734$110.13Special order, ships in 7-14 days
253597Ferrari LH Fuel Pump Filter - 253597SupersededOrder 282785 instead
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
181929Ferrari On-Off Valve - 181929$440.56Special order, ships in 7-14 days
253600Ferrari RH Fuel Pump Filter - 253600SupersededOrder 282784 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
10519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
13550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
1341208Ferrari Compl. Tank - 341208$13,717.82Special order, ships in 7-14 days
2282784Ferrari Fuel Pump with Filter (RH) - 282784$614.90In stock
3282785Ferrari Fuel Pump with Filter (LH) - 282785$614.90Contact us
4239412Ferrari O-Ring - 239412$21.51Available, ships in 3-6 days
4275314Ferrari O-Ring - 275314$12.31Available, ships in 3-6 days
5275998Ferrari Fastener Ring - 275998$120.46Available, ships in 3-6 days
6256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
711001124Ferrari Stud Bolt - 11001124$137.67Available, ships in 3-6 days
8254311Ferrari Angle Adaptor - 254311$16.94Special order, ships in 7-14 days
9238688Ferrari Connector - 238688$88.49Special order, ships in 7-14 days
10237407Ferrari On-Off Valve - 237407$56.52Special order, ships in 7-14 days
11273479Ferrari Support - 273479$194.22Special order, ships in 7-14 days
12276001Ferrari Ring - 276001$524.51Special order, ships in 7-14 days
13239413Ferrari O-Ring - 239413$9.29Available, ships in 3-6 days
14250480Ferrari Inspection Cap - 250480$46.69Special order, ships in 7-14 days
16309340Ferrari Bracket With Sheath - 309340$12.99Special order, ships in 7-14 days
17248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
18191904Ferrari Clip - 191904$0.90Special order, ships in 7-14 days
19875086Ferrari Compl. Fuel Filler Neck - 875086$1,849.95Special order, ships in 7-14 days
20791355Ferrari Screw - 791355$10.02Special order, ships in 7-14 days
21281180Ferrari Rear Fuel Delivery Pipe - 281180$491.74Special order, ships in 7-14 days
22206536Ferrari Clip D.14 - 206536$0.92Special order, ships in 7-14 days
23177553Ferrari Clamp - 177553$0.84Available, ships in 3-6 days
24277364Ferrari Fuel Delivery Pipe Centre Section - 277364$51.62Special order, ships in 7-14 days
2510441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
26286193Ferrari Fuel Pipe Fastener Bracket - 286193$36.86Special order, ships in 7-14 days
2710441290Ferrari P Clip Bracket With Sheath 28mm D.10 - 10441290$1.02Available, ships in 3-6 days
28235682Ferrari Clip - 235682$1.36Special order, ships in 7-14 days
29179318Ferrari Aluminium Spacer For Rad Fan - 179318$4.56Special order, ships in 7-14 days
30295009Ferrari Fuel Delivery Pipe Front Section LHD - 295009$149.96Special order, ships in 7-14 days
30295010Ferrari Fuel Delivery Pipe Front Section RHD - 295010$149.96Special order, ships in 7-14 days
3114040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
32125516Ferrari Washer - 125516SupersededOrder 10519424 instead
3210519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
3314059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
3314039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
34290771Ferrari Lower Connector Pipe - 290771$688.45Special order, ships in 7-14 days
3513126670Ferrari Collar - 13126670$2.13Available, ships in 3-6 days
35281598Ferrari Collar - 281598SupersededOrder 13126670 instead
36277360Ferrari Heat Shield - 277360$127.82Special order, ships in 7-14 days
3716285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
3810441890Ferrari P Clip Bracket With Sheath D22 - 10441890$1.17Available, ships in 3-6 days
39263230Ferrari Clip - 263230$2.82Special order, ships in 7-14 days
40290800Ferrari Connector Pipe Mounting Bracket - 290800$110.61Special order, ships in 7-14 days
4165377400Ferrari Screw M6 x 1 x 18 - 65377400$3.91Available, ships in 3-6 days
42286534Ferrari Pipe Mounting Bracket - 286534Price on requestContact us for price and availability
43259508Ferrari Clip 15.8mm-18.5mm - 259508$1.25Special order, ships in 7-14 days
44272086Ferrari RH Fuel Pump - 272086$2,814.21Special order, ships in 7-14 days
45254078Ferrari Clip - 254078$3.68Special order, ships in 7-14 days
46272714Ferrari Rear Inspection Cover Complete - 272714$41.76Special order, ships in 7-14 days
4714040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
48332702Ferrari LH Fuel Pump - 332702$1,873.35Available, ships in 3-6 days
4910815787Ferrari Clamp - 10815787$0.31Available, ships in 3-6 days
50253408Ferrari Quick Release Stud Bolts - 253408$110.61Special order, ships in 7-14 days
51253407Ferrari Compression Spring - 253407$66.35Special order, ships in 7-14 days
52253409Ferrari Upper Plate - 253409$66.35Special order, ships in 7-14 days
53328592Ferrari Fuel Level Sensor - 328592$393.38Special order, ships in 7-14 days
55296614Ferrari Bracket With Sheath - 296614$44.24Special order, ships in 7-14 days
