Ferrari 812 CompetizioneA — [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM (diagram 0062)

Exploded view of the [mechanical system] - d.13 - evaporative emissions control system on the Ferrari 812 CompetizioneA, with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

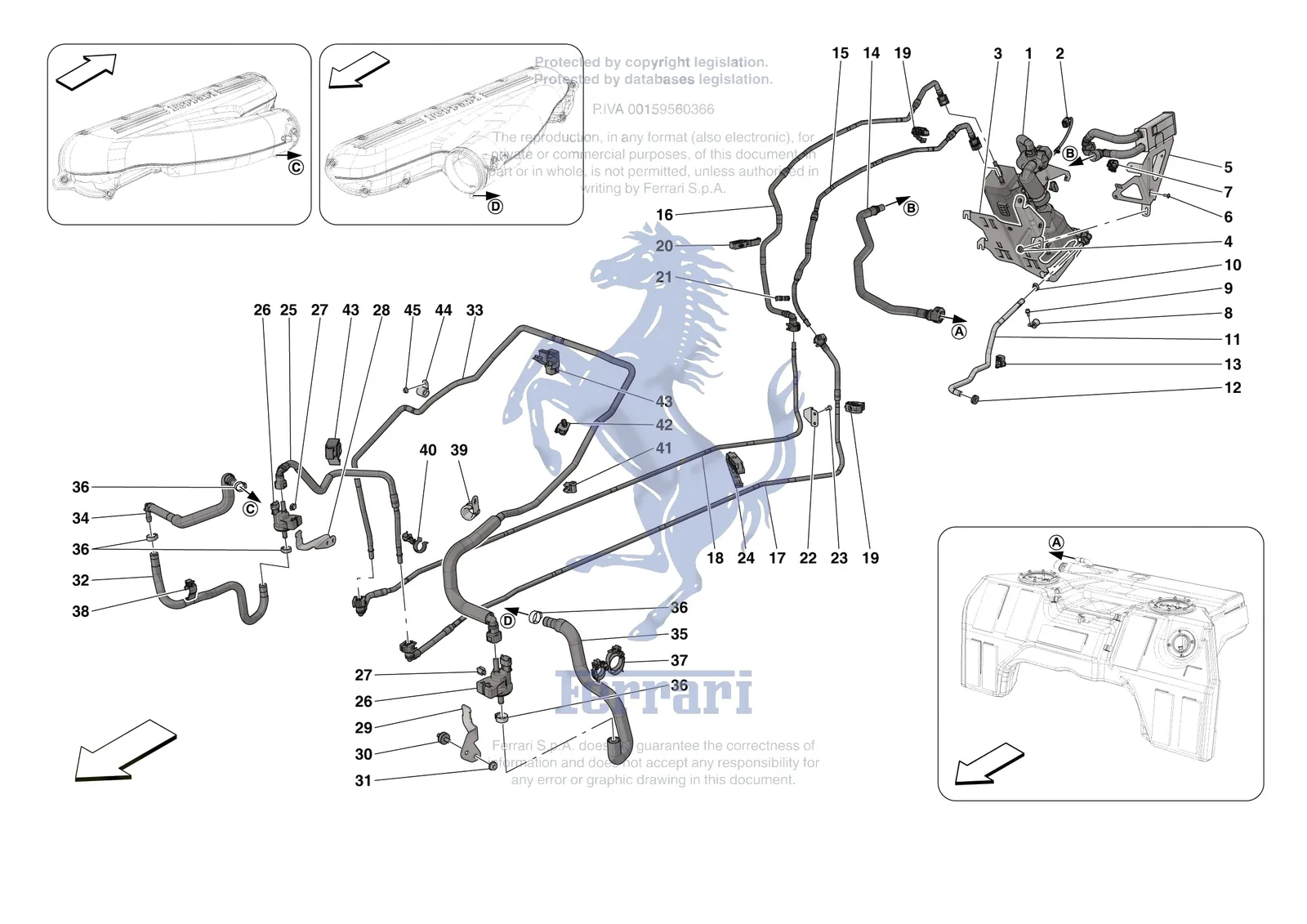

Ferrari 812 CompetizioneA [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
904559Ferrari Filtro Vapori Cpl - 904559SupersededOrder 895463 instead
277374Ferrari LH Flush Pipe Underbody Section - 277374SupersededOrder 292203 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
339005Ferrari Obd Air Filter Inlet Pipe - 339005$88.09Special order, ships in 7-14 days
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
1895463Ferrari Filtro Vapori Cpl - 895463$1,639.19Special order, ships in 7-14 days
2772952Ferrari Canister Wiring Harness - 772952$56.52Special order, ships in 7-14 days
3331900Ferrari Compl. Canister Mounting Bra - 331900$177.00Special order, ships in 7-14 days
414039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
5777451Ferrari Compl. Aluminium Vapour Sepa - 777451$909.73Special order, ships in 7-14 days
685833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
7259508Ferrari Clip 15.8mm-18.5mm - 259508$1.25Special order, ships in 7-14 days
810441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
9231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
1010716470Ferrari Collar - 10716470$2.59Available, ships in 3-6 days
11891209Ferrari Obd Air Filter Inlet Pipe - 891209$100.78Special order, ships in 7-14 days
1210397380Ferrari Ring - 10397380$2.82Available, ships in 3-6 days
13285883Ferrari Clip - 285883$6.96Special order, ships in 7-14 days
14882160Ferrari Evaporative Emissions Contro - 882160$184.38Special order, ships in 7-14 days
15818092Ferrari RH Flush Pipe WheeLHouse Se - 818092$221.26Special order, ships in 7-14 days
16818094Ferrari LH Flush Pipe WheeLHouse Se - 818094$228.64Special order, ships in 7-14 days
17277375Ferrari RH Flush Pipe Underbody Section - 277375$164.72Special order, ships in 7-14 days
18292203Ferrari LH Flush Pipe Underbody Section - 292203$100.78Special order, ships in 7-14 days
19244277Ferrari Clip - 244277$2.59Special order, ships in 7-14 days
20291163Ferrari Clip - 291163$1.99Special order, ships in 7-14 days
21139966Ferrari Cable Retaining Clip - 139966$1.09Available, ships in 3-6 days
22287857Ferrari Bracket - 287857$16.69Special order, ships in 7-14 days
2365377400Ferrari Screw M6 x 1 x 18 - 65377400$3.91Available, ships in 3-6 days
24241118Ferrari Clip - 241118$4.98Special order, ships in 7-14 days
25295052Ferrari RH Flush Pipe Engine Compartment Section - 295052$90.95Special order, ships in 7-14 days
26254425Ferrari Evap Purge Valve - 254425$54.11In stock
27254427Ferrari Clip - 254427$0.79Special order, ships in 7-14 days
28295053Ferrari RH Flush Valve Mounting Bracket - 295053$20.37Special order, ships in 7-14 days
29329242Ferrari LH Flush Valve Mounting Brac - 329242$31.93Special order, ships in 7-14 days
30225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
3114040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
32331077Ferrari RH Flush Pipe Valve Side - 331077$81.11Special order, ships in 7-14 days
33332132Ferrari LH Flush Pipe Valve Side - 332132$191.76Special order, ships in 7-14 days
33335608Ferrari LH Flush Pipe Valve Side - 335608$270.44Special order, ships in 7-14 days
34337331Ferrari RH Flush Pipe Engine Side - 337331$88.49Special order, ships in 7-14 days
35336508Ferrari LH Flush Pipe Lower Valve S - 336508$95.87Special order, ships in 7-14 days
3613434670Ferrari Screw Collar D16.2mm - 13434670$1.44Available, ships in 3-6 days
37306692Ferrari Clip Set - 306692$1.11Special order, ships in 7-14 days
38204777Ferrari Clip - 204777$1.34Available, ships in 3-6 days
3910441690Ferrari P Clip D18mm - 10441690$3.91Special order, ships in 7-14 days
40284145Ferrari Spacer Clip - 284145$15.49Special order, ships in 7-14 days
41235682Ferrari Clip - 235682$1.36Special order, ships in 7-14 days
42262559Ferrari Clip - 262559$1.78Available, ships in 3-6 days
4381649400Ferrari Clip - 81649400$18.17Special order, ships in 7-14 days
4410441390Ferrari P clip Bracket With Sheath D.12 - 10441390$1.02Available, ships in 3-6 days
4514059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
4514039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days

All 812 CompetizioneA diagrams
