Ferrari Daytona SP3 — [ENGINE] - B.03 - ENGINE COVERS (diagram 0006)

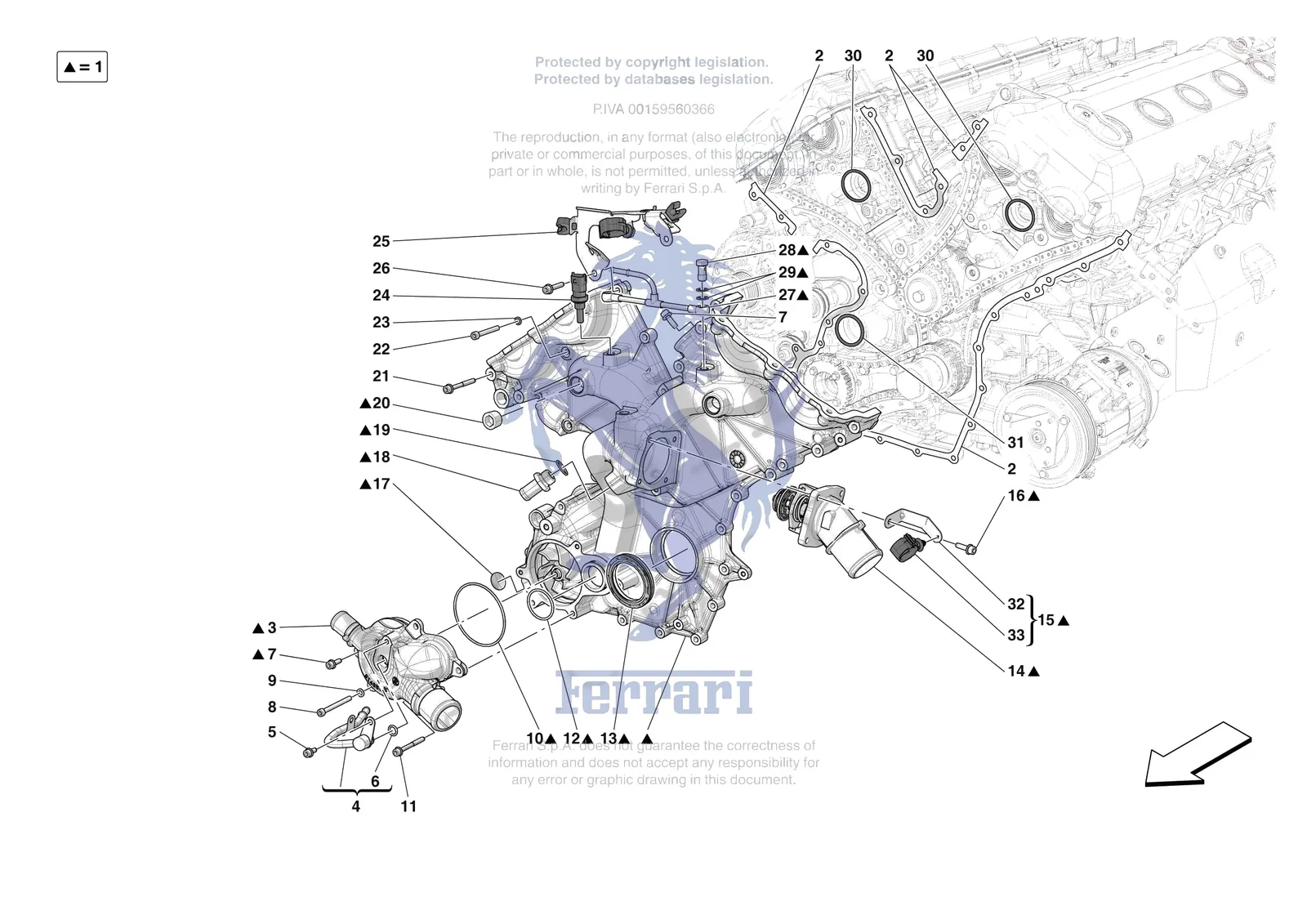

Exploded view of the [engine] - b.03 - engine covers on the Ferrari Daytona SP3, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [ENGINE] - B.03 - ENGINE COVERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0006.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 224997 | Ferrari Stud - 224997 | Superseded | Order 14303834 instead | |
| 1 | 834547 | Ferrari Timing System Cover Compl. W - 834547 | Superseded | Order 989134 instead |
| 1 | 989134 | Ferrari Timing System Cover Compl. W - 989134 | $11,673.49 | Contact us to order |
| 2 | 893579 | Ferrari Gasket Between Crankcase And - 893579 | $100.78 | Special order, ships in 7-14 days |
| 3 | 905725 | Ferrari Water Pump Cover - 905725 | $909.73 | Special order, ships in 7-14 days |
| 4 | 905726 | Ferrari Water Pump Header Tank Fill - 905726 | $393.38 | Special order, ships in 7-14 days |
| 5 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 6 | 276337 | Ferrari Gasket - 276337 | $20.51 | Special order, ships in 7-14 days |
| 7 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 8 | 14303834 | Ferrari Allen Screw 6x60 - 14303834 | $3.26 | Available, ships in 3-6 days |
| 8 | 14303824 | Ferrari Screw - 14303824 | Superseded | Order 14303834 instead |
| 9 | 14499304 | Ferrari Washer - 14499304 | $1.49 | Special order, ships in 7-14 days |
| 10 | 253797 | Ferrari O-Ring - 253797 | $6.98 | In stock |
| 11 | 255494 | Ferrari Screw - 255494 | $18.76 | Available, ships in 3-6 days |
| 12 | 769790 | Ferrari O-Ring - 769790 | $13.95 | Special order, ships in 7-14 days |
| 13 | 210359 | Ferrari Front Crankshaft Seal - 210359 | $64.88 | In stock |
| 14 | 262913 | Ferrari Thermostat/Pressure Switch - 262913 | $371.08 | In stock |
| 15 | 741258 | Ferrari Compl. Brake Servo Pipe Moun - 741258 | $34.40 | Special order, ships in 7-14 days |
| 16 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 17 | 10159001 | Ferrari Cap - 10159001 | $0.92 | Available, ships in 3-6 days |
| 17 | 989260 | Ferrari Cap - 989260 | Superseded | Order 10159001 instead |
| 18 | 253823 | Ferrari Connector - 253823 | $212.12 | Special order, ships in 7-14 days |
| 19 | 11270550 | Ferrari O-Ring - 11270550 | $2.07 | Available, ships in 3-6 days |
| 20 | 14325240 | Ferrari Plug - 14325240 | $6.82 | Available, ships in 3-6 days |
| 21 | 231625 | Ferrari Screw 6x50 - 231625 | $1.25 | Available, ships in 3-6 days |
| 22 | 14305924 | Ferrari Allen Screw 6x45 - 14305924 | $0.38 | Available, ships in 3-6 days |
| 22 | 231624 | Ferrari Allen Screw M6 x 45 - 231624 | Superseded | Order 14305924 instead |
| 23 | 216292 | Ferrari Gasket - 216292 | $6.36 | Available, ships in 3-6 days |
| 24 | 180137 | Ferrari/Maserati Water Temperature Sender / Sensor - 180137 | $25.19 | In stock |
| 25 | 871762 | Ferrari Compl. Mounting Bracket - 871762 | $110.61 | Special order, ships in 7-14 days |
| 26 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 28 | 211847 | Ferrari Pipe Union - 211847 | $327.81 | Special order, ships in 7-14 days |
| 29 | 10260160 | Ferrari Copper Washer D. 10 - 14 x 1 - 10260160 | $1.99 | Available, ships in 3-6 days |
| 30 | 183010 | Ferrari/Maserati O-Ring - 183010 | $5.50 | In stock |
| 31 | 289278 | Ferrari O-Ring - 289278 | $6.54 | Special order, ships in 7-14 days |
| 32 | 741265 | Ferrari Brake Servo Pipe Mounting Br - 741265 | $24.55 | Special order, ships in 7-14 days |
| 33 | 779282 | Ferrari Compl. Clip - 779282 | $3.91 | Special order, ships in 7-14 days |
