Ferrari Daytona SP3 — [ENGINE] - B.14 - ENGINE INTAKE DUCT (diagram 0019)

Exploded view of the [engine] - b.14 - engine intake duct on the Ferrari Daytona SP3, with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

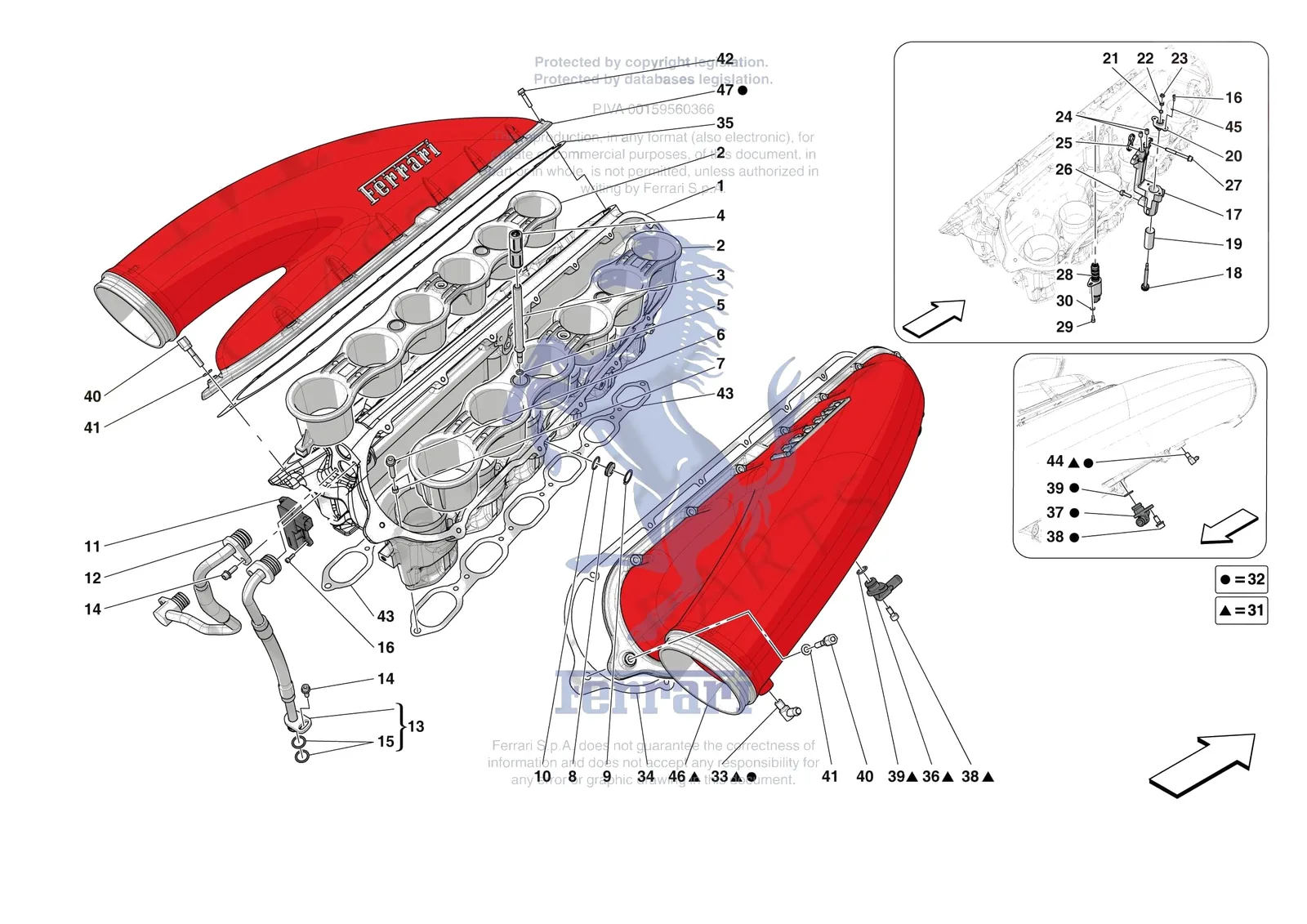

Ferrari Daytona SP3 [ENGINE] - B.14 - ENGINE INTAKE DUCT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
314702Ferrari Bushing - 314702SupersededOrder 325432 instead
255442Ferrari Oil Pressure Regulator Valve - 255442SupersededOrder 801187 instead
269227Ferrari Oil Pressure Regulator Valve - 269227SupersededOrder 801187 instead
296017Ferrari Oil Pressure Regulator Valve - 296017SupersededOrder 801187 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
1789009Ferrari Intake Manifold - 789009$14,499.95Special order, ships in 7-14 days
2878388Ferrari Intake Trumpets - 878388$786.79Special order, ships in 7-14 days
3964990Ferrari Intake Trumpet Guide Rod - 964990$344.21Special order, ships in 7-14 days
4909484Ferrari Recirculating Bearing - 909484$69.92Special order, ships in 7-14 days
514452681Ferrari Gasket - 14452681$0.46Special order, ships in 7-14 days
6231622Ferrari Screw M6 x 35 - 231622$0.65Available, ships in 3-6 days
7329629Ferrari Plastic Bush - 329629$0.33Special order, ships in 7-14 days
8953682Ferrari Plug - 953682$68.83Special order, ships in 7-14 days
911058076Ferrari Ring - 11058076$0.44Available, ships in 3-6 days
1014453481Ferrari O-Ring Gasket - 14453481SupersededOrder 254644 instead
10254644Ferrari O-Ring Gasket - 254644$0.77Available, ships in 3-6 days
11313930Ferrari Position Sensor - 313930$458.95Available, ships in 3-6 days
12826323Ferrari Oil Return Pipe From Manifol - 826323$442.56Special order, ships in 7-14 days
13826344Ferrari Oil Delivery Pipe From Crank - 826344$442.56Special order, ships in 7-14 days
14231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
15287722Ferrari O-Ring 15.08 x 2.62 - 287722$9.81Available, ships in 3-6 days
1614303024Ferrari Allen Screw M4 x 12 TCEI - 14303024$1.63Available, ships in 3-6 days
17919851Ferrari Trumpet Actuator Mount - 919851$713.04Special order, ships in 7-14 days
18919703Ferrari Complete Piston - 919703$368.79Special order, ships in 7-14 days
19903872Ferrari Actuator Sleeve - 903872$204.05Special order, ships in 7-14 days
20903893Ferrari Compl. Plug - 903893$442.56Special order, ships in 7-14 days
21325432Ferrari Bushing - 325432$13.30Special order, ships in 7-14 days
22325535Ferrari Rubber Cable Grommet - 325535$29.48Special order, ships in 7-14 days
2314065921Ferrari Flanged Nut - 14065921$0.50Available, ships in 3-6 days
2414326101Ferrari Threaded Connector - 14326101$2.38Special order, ships in 7-14 days
25911648Ferrari Actuator Gasket - 911648$14.20Special order, ships in 7-14 days
2616286124Ferrari Screw M6x20 - 16286124$0.71Special order, ships in 7-14 days
27255494Ferrari Screw - 255494$18.76Available, ships in 3-6 days
28801187Ferrari Oil Pressure Regulator Valve - 801187$368.79Available, ships in 3-6 days
3011181574Ferrari Washer - 11181574$0.06Available, ships in 3-6 days
31907929Ferrari Compl. RH Intake Plenum - 907929$35,988.35Contact us to order
32907930Ferrari Compl. LH Intake Plenum - 907930$35,988.35Contact us to order
33268877Ferrari Connector - 268877$110.61Special order, ships in 7-14 days
34868801Ferrari RH Intake Manifold Plenum Ga - 868801SupersededOrder 899932 instead
34899932Ferrari RH Intake Manifold Plenum Ga - 899932$243.40Special order, ships in 7-14 days
35868802Ferrari LH Intake Manifold Plenum Ga - 868802SupersededOrder 899933 instead
35899933Ferrari LH Intake Manifold Plenum Ga - 899933$243.40Special order, ships in 7-14 days
38231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
40903135Ferrari Stud Bolt - 903135$90.95Special order, ships in 7-14 days
4111197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
42870122Ferrari Screw - 870122$2.82Special order, ships in 7-14 days
43316503Ferrari Intake Manifold Gasket - 316503$34.99In stock
44268875Ferrari Connector - 268875$78.66Special order, ships in 7-14 days
4514497704Ferrari Washer - 14497704$1.30Special order, ships in 7-14 days
