Ferrari Daytona SP3 — [ENGINE] - B.26 - ENGINE HEAT EXCHANGER (diagram 0031)

Exploded view of the [engine] - b.26 - engine heat exchanger on the Ferrari Daytona SP3, with 59 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

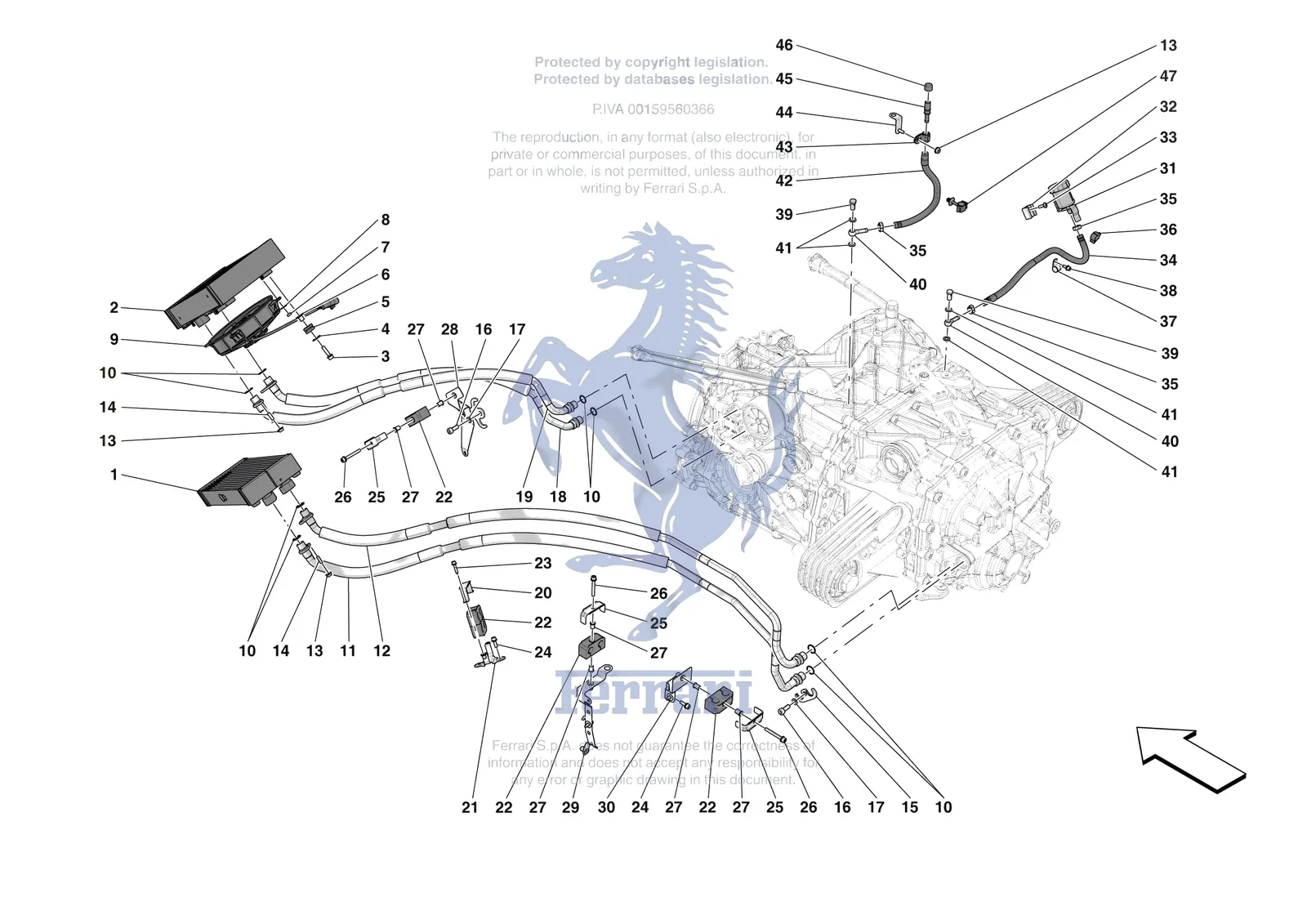

Ferrari Daytona SP3 [ENGINE] - B.26 - ENGINE HEAT EXCHANGER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
206536Ferrari Clip D.14 - 206536$0.92Special order, ships in 7-14 days
257823Ferrari Electric Fan Complete - 257823SupersededOrder 277070 instead
303584Ferrari Rubber Pipe - 303584SupersededOrder 768151 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1766205Ferrari Gearbox Oil Radiator - 766205$2,985.67Special order, ships in 7-14 days
2766238Ferrari Clutch Oil Radiator - 766238$3,908.32Special order, ships in 7-14 days
3231620Ferrari/Maserati Screw - 231620$0.58In stock
412643724Ferrari/Maserati Washer - 12643724$0.20In stock
5103549Ferrari Grommet - 103549$2.80In stock
6149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
710718011Ferrari Nut - 10718011$0.13Available, ships in 3-6 days
812638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
812638101Ferrari Washer White - 12638101SupersededOrder 12638124 instead
9277070Ferrari Electric Fan Complete - 277070$467.15Special order, ships in 7-14 days
10254644Ferrari O-Ring Gasket - 254644$0.77Available, ships in 3-6 days
11766204Ferrari Oil Delivery Pipe - 766204$1,426.08Special order, ships in 7-14 days
12766208Ferrari Oil Return Pipe - 766208$1,426.08Special order, ships in 7-14 days
1314040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
1413540924Ferrari Stud - 13540924$78.66Available, ships in 3-6 days
15287095Ferrari Fork - 287095$149.96Special order, ships in 7-14 days
1614306321Ferrari Allen Screw 8x20 - 14306321$0.34Available, ships in 3-6 days
1714499401Ferrari Washer - 14499401$0.54Available, ships in 3-6 days
1714499424Ferrari Washer - 14499424SupersededOrder 14499401 instead
18766243Ferrari Oil Return Pipe - 766243$1,376.91Special order, ships in 7-14 days
19766242Ferrari Oil Delivery Pipe - 766242$1,352.32Special order, ships in 7-14 days
20800433Ferrari Upper Chassis Bracket - 800433$51.62Special order, ships in 7-14 days
21800432Ferrari Lower Chassis Bracket - 800432$83.57Special order, ships in 7-14 days
22243396Ferrari Rubber Support Block - 243396$41.76Special order, ships in 7-14 days
2311566724Ferrari Screw 5X25 - 11566724$3.91Available, ships in 3-6 days
24231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
25243398Ferrari Plate - 243398$21.60Special order, ships in 7-14 days
26243721Ferrari Screw With Washer M6 x 45 TCEI - 243721$0.98Available, ships in 3-6 days
27243399Ferrari Bushing - 243399$1.44Special order, ships in 7-14 days
28768270Ferrari Compl. Fork Bracket - 768270$88.49Special order, ships in 7-14 days
29832386Ferrari Pipe Bracket - 832386$295.03Special order, ships in 7-14 days
30773147Ferrari LH Pipe Bracket - 773147$120.46Special order, ships in 7-14 days
31301881Ferrari DCT Expansion Tank - 301881$49.28Special order, ships in 7-14 days
32301886Ferrari Tank Breather Mount - 301886$172.10Special order, ships in 7-14 days
3385629300Ferrari Screw M6 x 20 - 85629300$1.17Available, ships in 3-6 days
34768151Ferrari Dct Vent Pipe - 768151$344.21Special order, ships in 7-14 days
3513434670Ferrari Screw Collar D16.2mm - 13434670$1.44Available, ships in 3-6 days
36198253Ferrari Clip - 198253$7.40Special order, ships in 7-14 days
3710418601Ferrari Clamp 14mm - 10418601$1.86Available, ships in 3-6 days
38231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
3911903811Ferrari Banjo Bolt M10 x 1.25 - 11903811$8.05Special order, ships in 7-14 days
40301884Ferrari Swivel Connector - 301884$295.03Special order, ships in 7-14 days
4110284460Ferrari Washer - 10284460$0.31Available, ships in 3-6 days
42308652Ferrari Vent Pipe - 308652$663.86Special order, ships in 7-14 days
43244219Ferrari Clip - 244219$8.72Special order, ships in 7-14 days
44908064Ferrari Pipe Mounting Bracket - 908064$56.52Special order, ships in 7-14 days
45308665Ferrari Connector - 308665$81.11Special order, ships in 7-14 days
46308773Ferrari DCT Bleed Valve Cap - 308773$4.16Special order, ships in 7-14 days
47878898Ferrari Clip - 878898$5.65Special order, ships in 7-14 days
