Ferrari Daytona SP3 — [ENGINE] - B.31 - ELECTRIC STARTER MOTOR (diagram 0036)

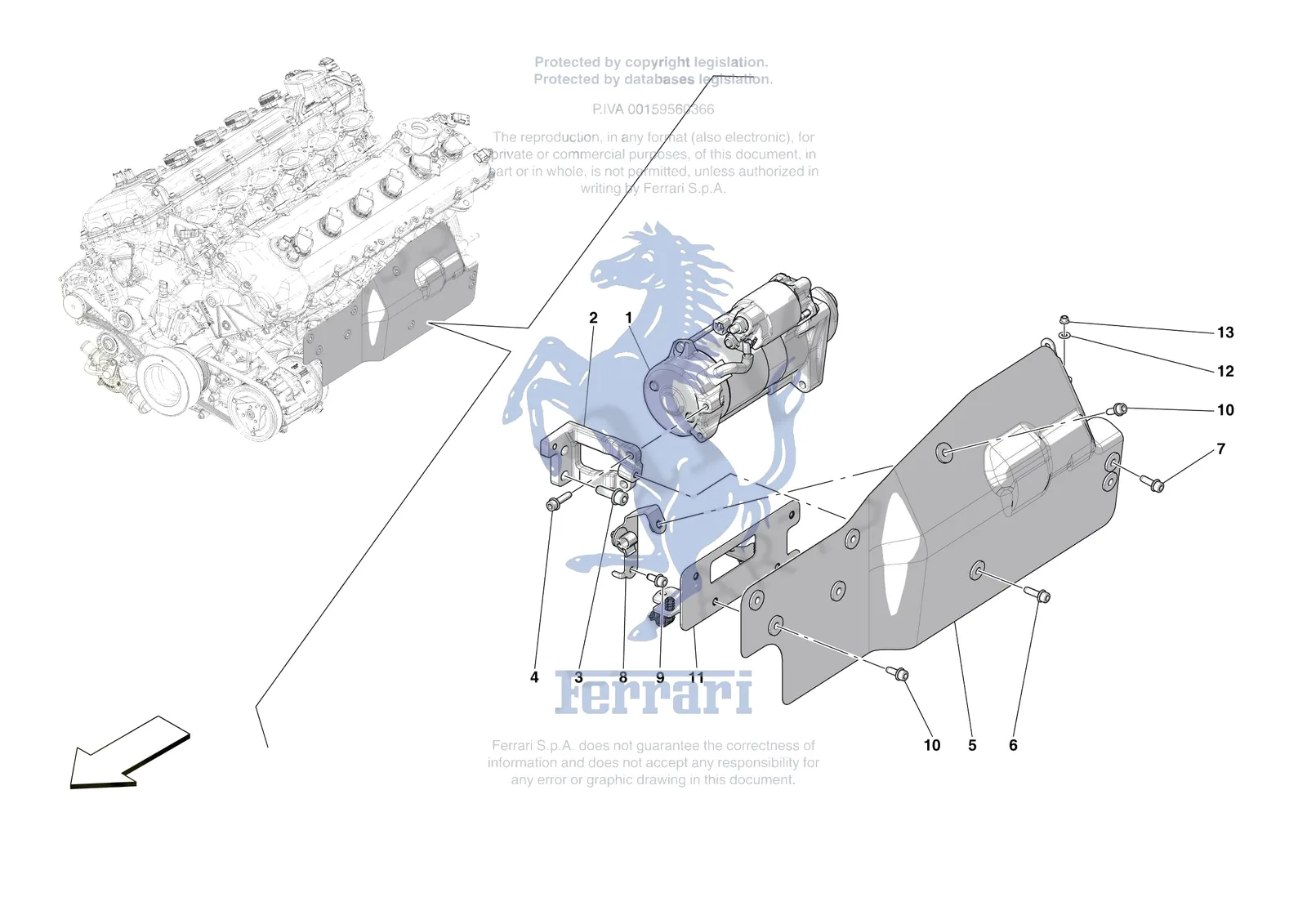

Exploded view of the [engine] - b.31 - electric starter motor on the Ferrari Daytona SP3, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [ENGINE] - B.31 - ELECTRIC STARTER MOTOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0036.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 834367 | Ferrari Screw 8x25 - 834367 | Superseded | Order 231628 instead | |
| 1 | 903853 | Ferrari Starter Motor - 903853 | $1,873.35 | Special order, ships in 7-14 days |
| 2 | 919664 | Ferrari Plate - 919664 | $226.19 | Special order, ships in 7-14 days |
| 3 | 231628 | Ferrari Screw 8x25 - 231628 | $1.15 | Special order, ships in 7-14 days |
| 4 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 5 | 886501 | Ferrari Starter Motor Heat Shield - 886501 | $1,204.80 | Special order, ships in 7-14 days |
| 6 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 7 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 8 | 912847 | Ferrari Bracket - 912847 | $71.28 | Special order, ships in 7-14 days |
| 9 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 10 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 11 | 902376 | Ferrari Bracket - 902376 | $83.57 | Special order, ships in 7-14 days |
| 12 | 12637824 | Ferrari Washer - 12637824 | $0.13 | Available, ships in 3-6 days |
| 13 | 160472 | Ferrari Nut - 160472 | $4.35 | Special order, ships in 7-14 days |
