Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL (diagram 0050)

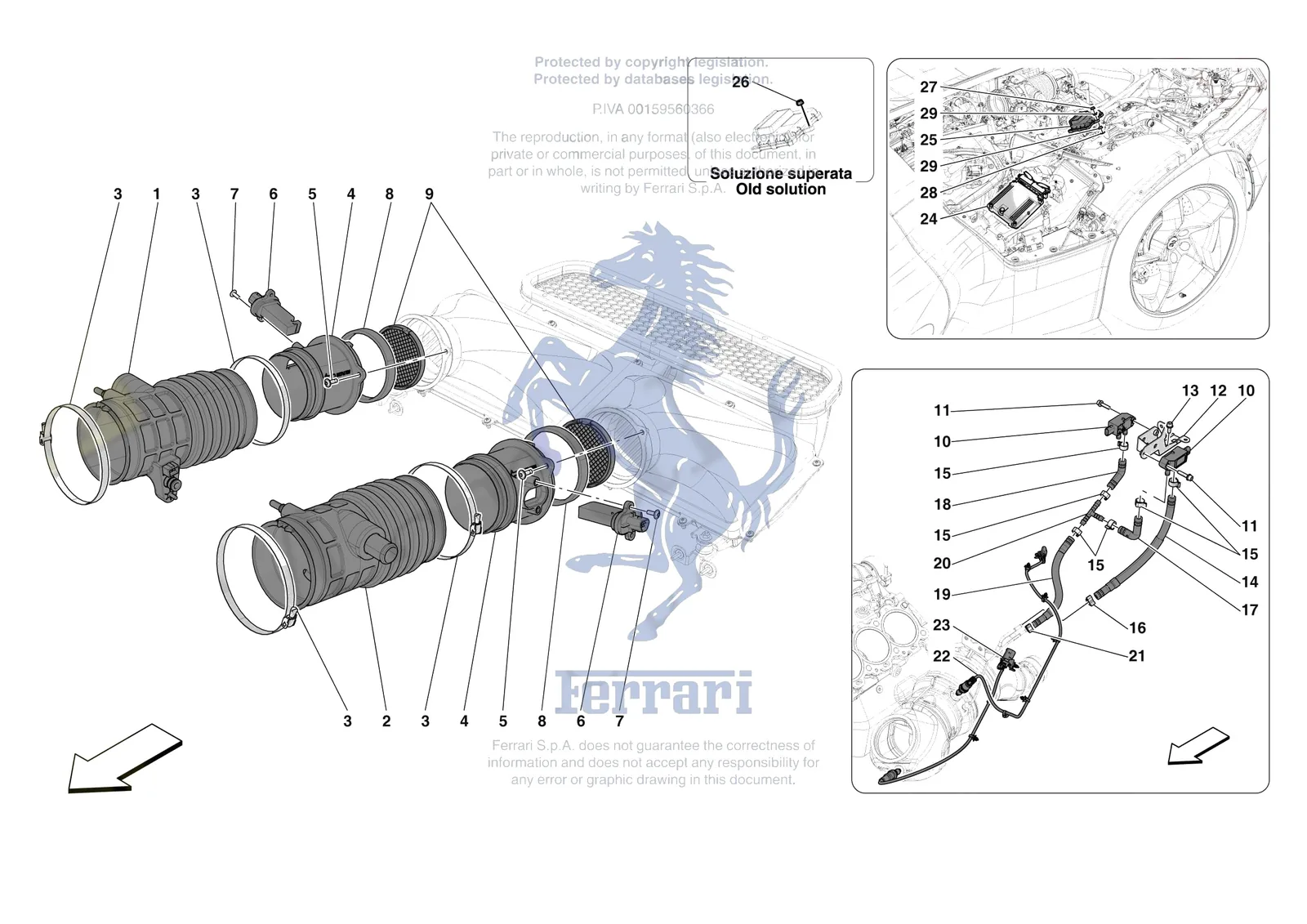

Exploded view of the [mechanical system] - d.03 - engine injection control on the Ferrari Daytona SP3, with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0050.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 942601 | Ferrari Ion ECU Casing - 942601 | Superseded | Order 941421 instead | |
| 12574115 | Ferrari Nut - 12574115 | Superseded | Order 169180 instead | |
| 12577811 | Ferrari Nut - 12577811 | Superseded | Order 169180 instead | |
| 12574111 | Ferrari Nyloc Nut - 12574111 | Superseded | Order 169180 instead | |
| 12574121 | Ferrari Nyloc Nut White - 12574121 | Superseded | Order 169180 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 340699 | Ferrari T Union - 340699 | Superseded | Order 913829 instead | |
| 1 | 905971 | Ferrari RH Hose - 905971 | $516.33 | Special order, ships in 7-14 days |
| 2 | 905969 | Ferrari LH Hose - 905969 | $516.33 | Special order, ships in 7-14 days |
| 4 | 845077 | Ferrari RH Intake Line Air Flow Sens - 845077 | $98.32 | Special order, ships in 7-14 days |
| 5 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 6 | 297280 | Ferrari Air Flow Sensor - 297280 | $237.66 | In stock |
| 7 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 8 | 327132 | Ferrari Adhesive Foam - 327132 | $39.31 | Special order, ships in 7-14 days |
| 9 | 841336 | Ferrari Square Mesh Grille For Mass - 841336 | $18.55 | Special order, ships in 7-14 days |
| 10 | 340691 | Ferrari Pressure Sensor - 340691 | $196.67 | Special order, ships in 7-14 days |
| 11 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 12 | 901815 | Ferrari Gpf Sensor Bracket - 901815 | $66.35 | Special order, ships in 7-14 days |
| 13 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 14 | 825111 | Ferrari Compl. Gpf Pipe - 825111 | $90.95 | Special order, ships in 7-14 days |
| 15 | 13125570 | Ferrari Collar - 13125570 | Superseded | Order 13432070 instead |
| 16 | 13126970 | Ferrari Collar - 13126970 | $3.03 | Available, ships in 3-6 days |
| 17 | 825098 | Ferrari Rubber Pipe - 825098 | $49.14 | Special order, ships in 7-14 days |
| 18 | 825100 | Ferrari Rubber Pipe - 825100 | $56.52 | Special order, ships in 7-14 days |
| 19 | 825110 | Ferrari Compl. Gpf Pipe - 825110 | $76.19 | Special order, ships in 7-14 days |
| 20 | 913829 | Ferrari Three Way - 913829 | $10.06 | Special order, ships in 7-14 days |
| 21 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 22 | 787780 | Ferrari Rear Oxygen Sensor - 787780 | $240.39 | Available, ships in 3-6 days |
| 23 | 787778 | Ferrari Front Oxygen Sensor - 787778 | $262.24 | Available, ships in 3-6 days |
| 24 | 861912 | Ferrari Centralina Accensione Med17. - 861912 | $2,552.45 | Special order, ships in 7-14 days |
| 25 | 865036 | Ferrari Ion ECU Casing - 865036 | $2,248.03 | Special order, ships in 7-14 days |
| 25 | 941421 | Ferrari Ion ECU Casing - 941421 | $2,224.61 | Special order, ships in 7-14 days |
| 26 | 169180 | Ferrari Nyloc Nut M5 x 6.3 - 169180 | $0.31 | Available, ships in 3-6 days |
| 26 | 102741 | Ferrari/Maserati Nyloc Nut M6 - 102741 | $0.45 | In stock |
| 27 | 12578011 | Ferrari Flanged Nyloc Nut - 12578011 | $0.31 | Available, ships in 3-6 days |
| 28 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 29 | 55034314 | Ferrari Boccola D5Xd6.3Xd12 - 55034314 | $34.40 | Special order, ships in 7-14 days |
