Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR (diagram 0059)

Exploded view of the [mechanical system] - d.10 - oil pipes and engine oil level sensor on the Ferrari Daytona SP3, with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

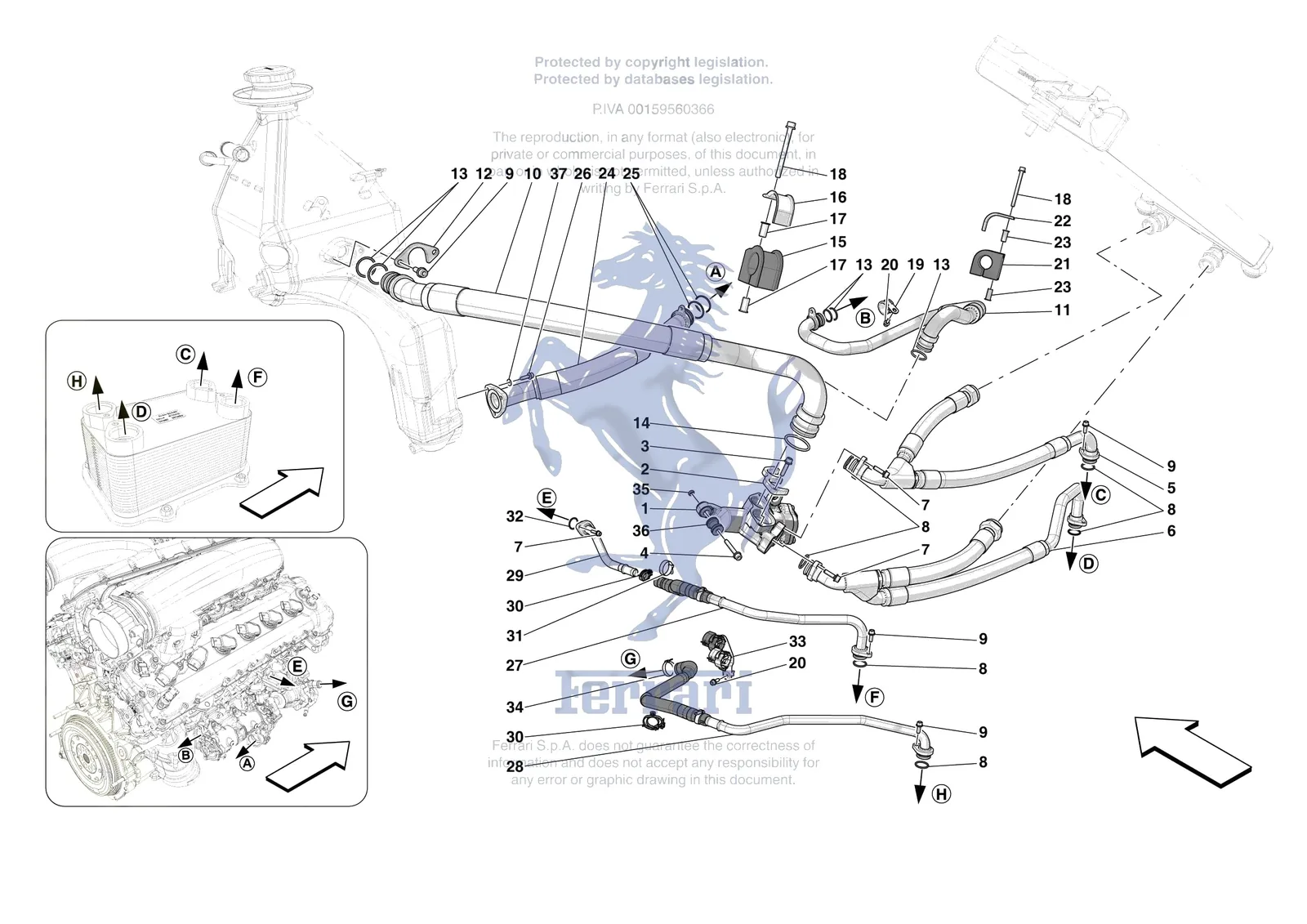

Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
289837Ferrari Bushing - 289837$15.43Special order, ships in 7-14 days
294902Ferrari Damped Mounting - 294902SupersededOrder 267300 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
282404Ferrari Screw 6x65 - 282404SupersededOrder 255495 instead
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
1316675Ferrari Oil Thermostat Complete - 316675$1,622.78Special order, ships in 7-14 days
2311723Ferrari Engine Oil Pipe Retainer Fork - 311723$164.72Special order, ships in 7-14 days
3231620Ferrari/Maserati Screw - 231620$0.58In stock
4231623Ferrari Screw M6 x 40 TCEI - 231623$1.02Available, ships in 3-6 days
5858498Ferrari Oil Delivery Y-Pipe - 858498$2,201.19Special order, ships in 7-14 days
6858497Ferrari Oil Return Y-Pipe - 858497$2,294.87Special order, ships in 7-14 days
7231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
8122791Ferrari O-Ring - 122791$4.12Available, ships in 3-6 days
9231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
10858538Ferrari Oil Pipe From Thermostat To - 858538$1,303.14Special order, ships in 7-14 days
11858534Ferrari Oil Pipe From Pump To Thermo - 858534$1,376.91Special order, ships in 7-14 days
12283147Ferrari Retainer Fork - 283147$90.95Special order, ships in 7-14 days
13121903Ferrari Gasket - 121903$1.48Available, ships in 3-6 days
14104212Ferrari O-Ring - 104212$1.10In stock
15315530Ferrari Pillory Block - 315530$76.19Special order, ships in 7-14 days
16315540Ferrari Retainer Block Fastener Plate - 315540$44.24Special order, ships in 7-14 days
17304075Ferrari Bushing - 304075$12.21Special order, ships in 7-14 days
18255495Ferrari Screw 6x65 - 255495$1.82Special order, ships in 7-14 days
1910441990Ferrari P Clip Bracket With Sheath - 10441990$1.42Available, ships in 3-6 days
20248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
21315529Ferrari Pillory Block - 315529$76.19Special order, ships in 7-14 days
22315539Ferrari Retainer Block Fastener Plate - 315539$44.24Special order, ships in 7-14 days
23315649Ferrari Flanged Bushing - 315649$8.49Special order, ships in 7-14 days
24858479Ferrari Oil Pipe From Rank To Pump - 858479$1,844.08Special order, ships in 7-14 days
25101044Ferrari Water Pump O-Ring - 101044$2.41In stock
26231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
27763987Ferrari Compl. Heat Exchanger Water - 763987$639.27Special order, ships in 7-14 days
28903856Ferrari Compl. Heat Exchanger Water - 903856$713.04Special order, ships in 7-14 days
29772665Ferrari Compl. Rigid Pipe - 772665$442.56Special order, ships in 7-14 days
30306692Ferrari Clip Set - 306692$1.11Special order, ships in 7-14 days
31262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
32250888Ferrari Gasket - 250888$1.42Available, ships in 3-6 days
33826348Ferrari Compl. Heat Exchanger Water - 826348$51.62Special order, ships in 7-14 days
34262112Ferrari Collar - 262112SupersededOrder 262111 instead
35341672Ferrari Spacer - 341672$10.91Special order, ships in 7-14 days
36267300Ferrari Mount Bushing - 267300$13.18In stock
37254442Ferrari Washer D. 6.5-1 - 254442Price on requestContact us for price and availability

All Daytona SP3 diagrams
