Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.23.01 - HYDRAULIC BRAKE CONTROL PIPES (diagram 0072)

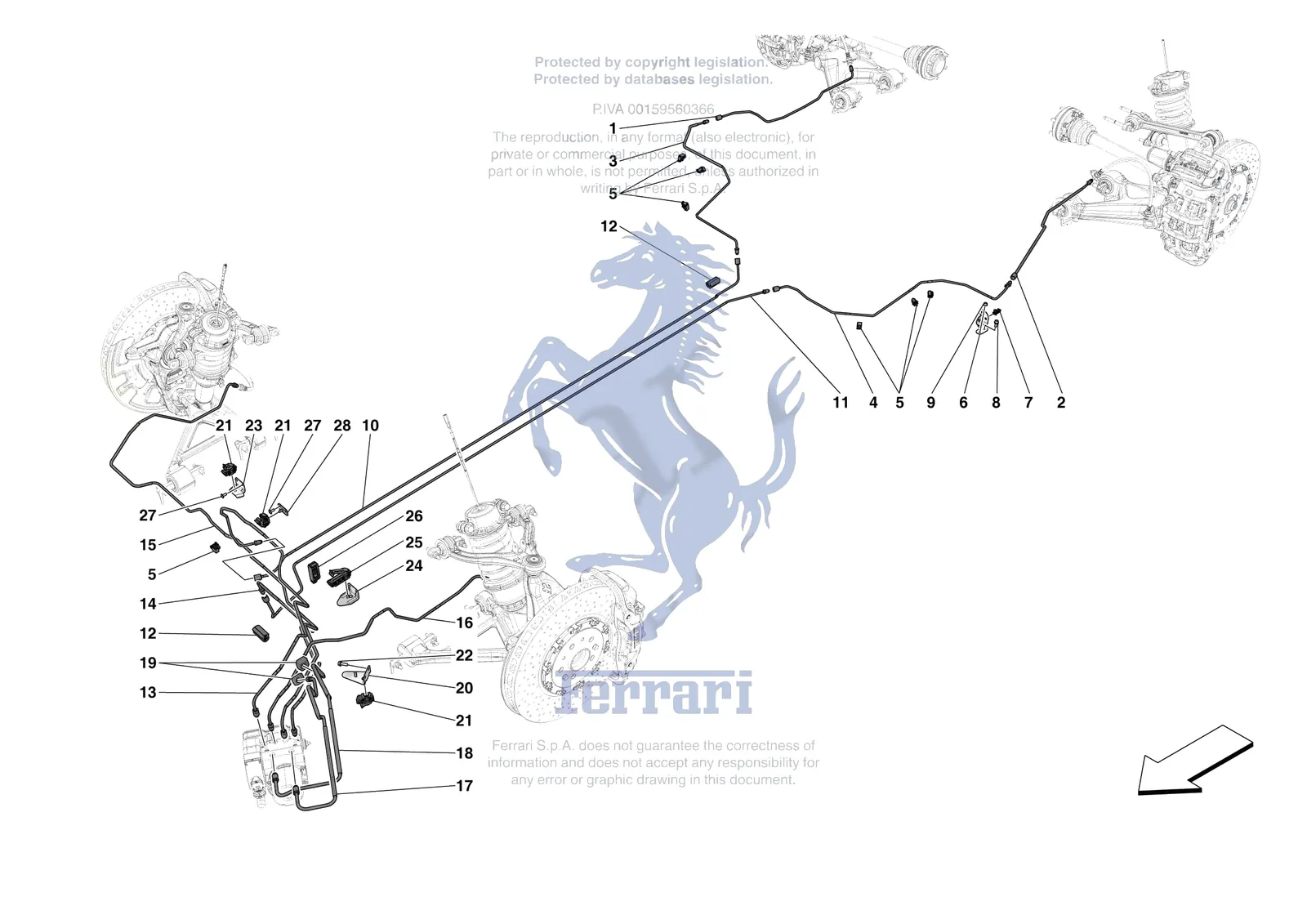

Exploded view of the [mechanical system] - d.23.01 - hydraulic brake control pipes on the Ferrari Daytona SP3, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.23.01 - HYDRAULIC BRAKE CONTROL PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0072.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 1 | 871094 | Ferrari RH Rear Trellis Brake Pipe - 871094 | $98.32 | Special order, ships in 7-14 days |
| 2 | 304392 | Ferrari LH Rear Brake Pipe On Rear Trellis - 304392 | $73.73 | Special order, ships in 7-14 days |
| 3 | 304321 | Ferrari RH Rear Brake Pipe From Underbody To Trellis - 304321 | $73.73 | Special order, ships in 7-14 days |
| 4 | 766870 | Ferrari Rear Brake Pipe From Underbo - 766870 | $108.16 | Special order, ships in 7-14 days |
| 5 | 249650 | Ferrari Clip 4.7X1 - 249650 | $0.82 | Available, ships in 3-6 days |
| 6 | 811460 | Ferrari Bracket - 811460 | $130.29 | Special order, ships in 7-14 days |
| 7 | 291408 | Ferrari Clip - 291408 | $0.34 | Special order, ships in 7-14 days |
| 8 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 9 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
| 10 | 745184 | Ferrari RH Underbody Brake Pipe - 745184 | $127.82 | Special order, ships in 7-14 days |
| 11 | 766802 | Ferrari LH Underbody Brake Pipe - 766802 | $132.75 | Special order, ships in 7-14 days |
| 12 | 262737 | Ferrari Rubber Retainer - 262737 | $10.06 | Special order, ships in 7-14 days |
| 13 | 906710 | Ferrari RH Fender Brake Pipe - 906710 | $149.96 | Special order, ships in 7-14 days |
| 14 | 895090 | Ferrari LH Fender Brake Pipe - 895090 | $113.08 | Special order, ships in 7-14 days |
| 15 | 895091 | Ferrari Brake Pipe To Front RH Corne - 895091 | $204.05 | Special order, ships in 7-14 days |
| 16 | 906662 | Ferrari Brake Pipe To Front LH Corne - 906662 | $122.92 | Special order, ships in 7-14 days |
| 17 | 871095 | Ferrari Mc1 Brake Pipe - 871095 | $130.29 | Special order, ships in 7-14 days |
| 18 | 871096 | Ferrari Mc2 Brake Pipe - 871096 | $127.82 | Special order, ships in 7-14 days |
| 19 | 293189 | Ferrari Two Way Connector M12X1 - 293189 | $130.29 | Special order, ships in 7-14 days |
| 20 | 817141 | Ferrari Brake Pipe Mounting Bracket - 817141 | $71.28 | Special order, ships in 7-14 days |
| 21 | 234285 | Ferrari Clip - 234285 | $1.40 | Available, ships in 3-6 days |
| 22 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 23 | 333411 | Ferrari Front Brake Pipe Bracket For - 333411 | $213.88 | Special order, ships in 7-14 days |
| 24 | 296951 | Ferrari Front Brake Pipe Bracket For LH Front Lift - 296951 | $83.57 | Special order, ships in 7-14 days |
| 25 | 234286 | Ferrari Clip - 234286 | $3.03 | Available, ships in 3-6 days |
| 26 | 249781 | Ferrari Clip - 249781 | $1.11 | Special order, ships in 7-14 days |
| 27 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 28 | 821843 | Ferrari Front Brake Pipe Bracket For - 821843 | $51.62 | Special order, ships in 7-14 days |
