Ferrari Daytona SP3 — [MECHANICAL SYSTEM] - D.32 - STEERING BOX PIPES (diagram 0087)

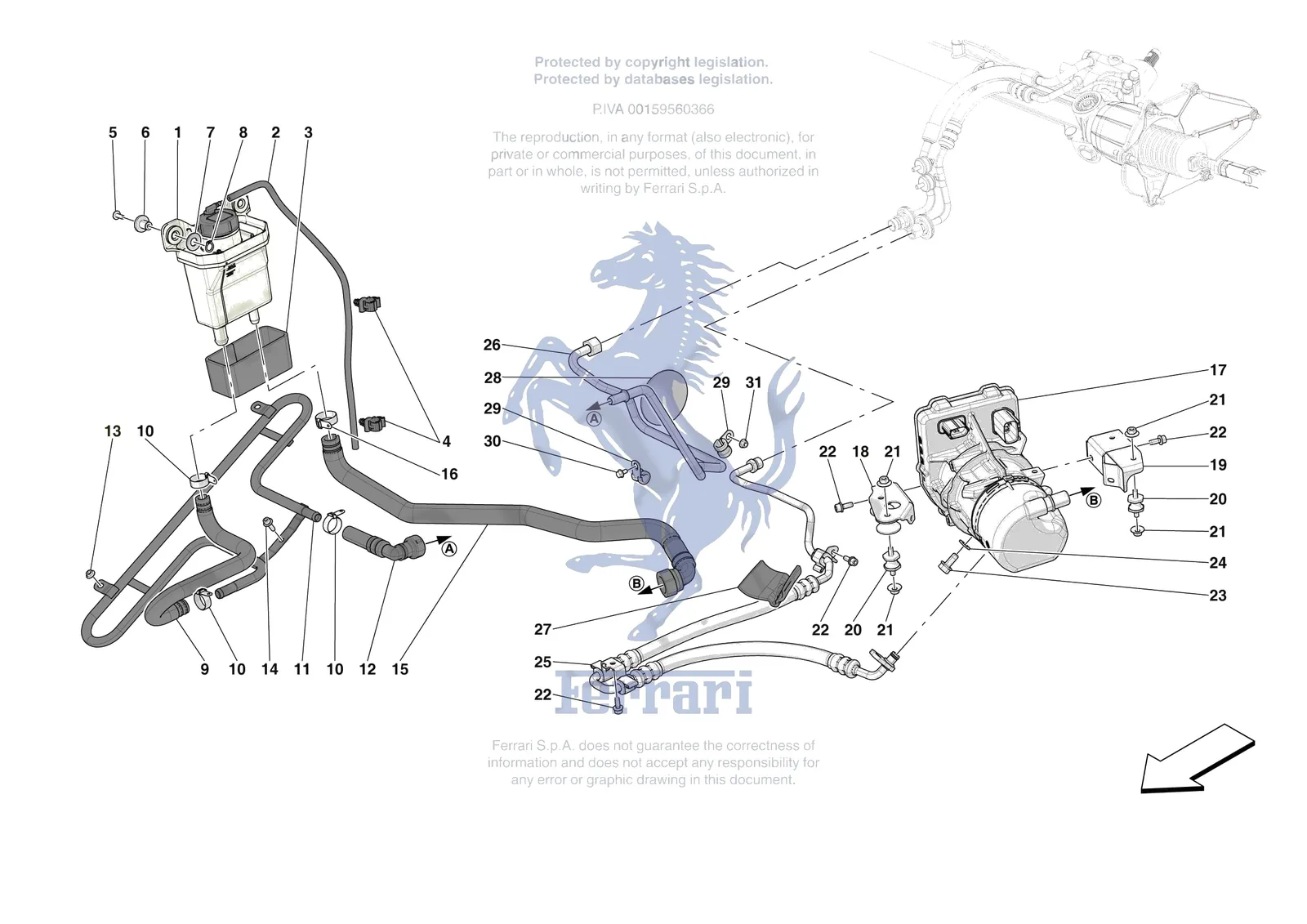

Exploded view of the [mechanical system] - d.32 - steering box pipes on the Ferrari Daytona SP3, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Daytona SP3 [MECHANICAL SYSTEM] - D.32 - STEERING BOX PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/daytona-sp3/0087.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 199617 | Ferrari Power Steering Fluid Reservoir Complete - 199617 | Superseded | Order 292342 instead | |
| 233605 | Ferrari Power Steering Fluid Reservoir Complete - 233605 | Superseded | Order 292342 instead | |
| 277696 | Ferrari Power Steering Fluid Reservoir Complete - 277696 | Superseded | Order 292342 instead | |
| 280021 | Ferrari Power Steering Fluid Reservoir Complete - 280021 | Superseded | Order 292342 instead | |
| 275767 | Ferrari Power Steering Pump - 275767 | Superseded | Order 893739 instead | |
| 309203 | Ferrari Power Steering Pump - 309203 | Superseded | Order 893739 instead | |
| 11065975 | Ferrari Ring - 11065975 | Superseded | Order 11065976 instead | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 10860270 | Ferrari Screw Collar - 10860270 | $1.94 | Available, ships in 3-6 days | |
| 1 | 292342 | Ferrari Power Steering Fluid Reservoir Complete - 292342 | $128.01 | Special order, ships in 7-14 days |
| 2 | 122126 | Ferrari Rubber Line - 122126 | $16.71 | Available, ships in 3-6 days |
| 3 | 303090 | Ferrari Foam - 303090 | $8.07 | Special order, ships in 7-14 days |
| 4 | 262559 | Ferrari Clip - 262559 | $1.78 | Available, ships in 3-6 days |
| 5 | 169814 | Ferrari Screw M5 x 14 TBFEI - 169814 | $2.61 | Available, ships in 3-6 days |
| 6 | 303591 | Ferrari Seeger Ring - 303591 | $34.44 | Special order, ships in 7-14 days |
| 7 | 303594 | Ferrari Seal Ring - 303594 | $23.12 | Special order, ships in 7-14 days |
| 8 | 11065976 | Ferrari Ring Clip D10 - 11065976 | $0.38 | Special order, ships in 7-14 days |
| 9 | 871102 | Ferrari Pipe From Coil To Power Stee - 871102 | $162.48 | Special order, ships in 7-14 days |
| 10 | 262108 | Ferrari Screw Collar - 262108 | $3.47 | Special order, ships in 7-14 days |
| 11 | 325634 | Ferrari Power Steering Fluid Cooling - 325634 | $664.78 | Special order, ships in 7-14 days |
| 12 | 330953 | Ferrari Rubber Pipe From Coil Quick - 330953 | $130.47 | Special order, ships in 7-14 days |
| 13 | 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days |
| 13 | 13046012 | Ferrari Nut - 13046012 | Superseded | Order 13046011 instead |
| 14 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 15 | 871103 | Ferrari Pipe From Reservoir To Power - 871103 | $231.42 | Special order, ships in 7-14 days |
| 16 | 262109 | Ferrari Screw Collar - 262109 | $2.01 | Available, ships in 3-6 days |
| 17 | 893739 | Ferrari Ephs Steering Pump - 893739 | $17,724.43 | Special order, ships in 7-14 days |
| 18 | 288801 | Ferrari Front Power Steering Pump Bracket - 288801 | $86.15 | Special order, ships in 7-14 days |
| 19 | 945386 | Ferrari Rear Power Steering Pump Bra - 945386 | $155.10 | Special order, ships in 7-14 days |
| 20 | 284347 | Ferrari Power Steering Pump Fastener - 284347 | $31.99 | Special order, ships in 7-14 days |
| 21 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 22 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 23 | 16297924 | Ferrari Screw - 16297924 | $5.19 | Special order, ships in 7-14 days |
| 24 | 14496524 | Ferrari Washer - 14496524 | $0.19 | Available, ships in 3-6 days |
| 25 | 871101 | Ferrari Pipe From Pump To Firewall D - 871101 | $1,107.99 | Special order, ships in 7-14 days |
| 26 | 871100 | Ferrari Pipe From Firewall Disconnec - 871100 | $590.91 | Special order, ships in 7-14 days |
| 27 | 159147 | Ferrari Rubber Shim 100x50x4mm - 159147 | $1.67 | Available, ships in 3-6 days |
| 28 | 953350 | Ferrari Tampone Circolare Diametro 8 - 953350 | $5.14 | Special order, ships in 7-14 days |
| 29 | 10450290 | Ferrari Bracket with Sheath D.12mm - 10450290 | $8.51 | Available, ships in 3-6 days |
| 30 | 16284934 | Ferrari Screw - 16284934 | $1.61 | Available, ships in 3-6 days |
| 30 | 16284927 | Ferrari Screw 5x10 - 16284927 | Superseded | Order 16284934 instead |
| 31 | 204777 | Ferrari Clip - 204777 | $1.34 | Available, ships in 3-6 days |
