Ferrari Daytona SP3 — [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES (diagram 0129)

Exploded view of the [vehicle trim] - e.29.02 - doors - opening mechanisms and hinges on the Ferrari Daytona SP3, with 59 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

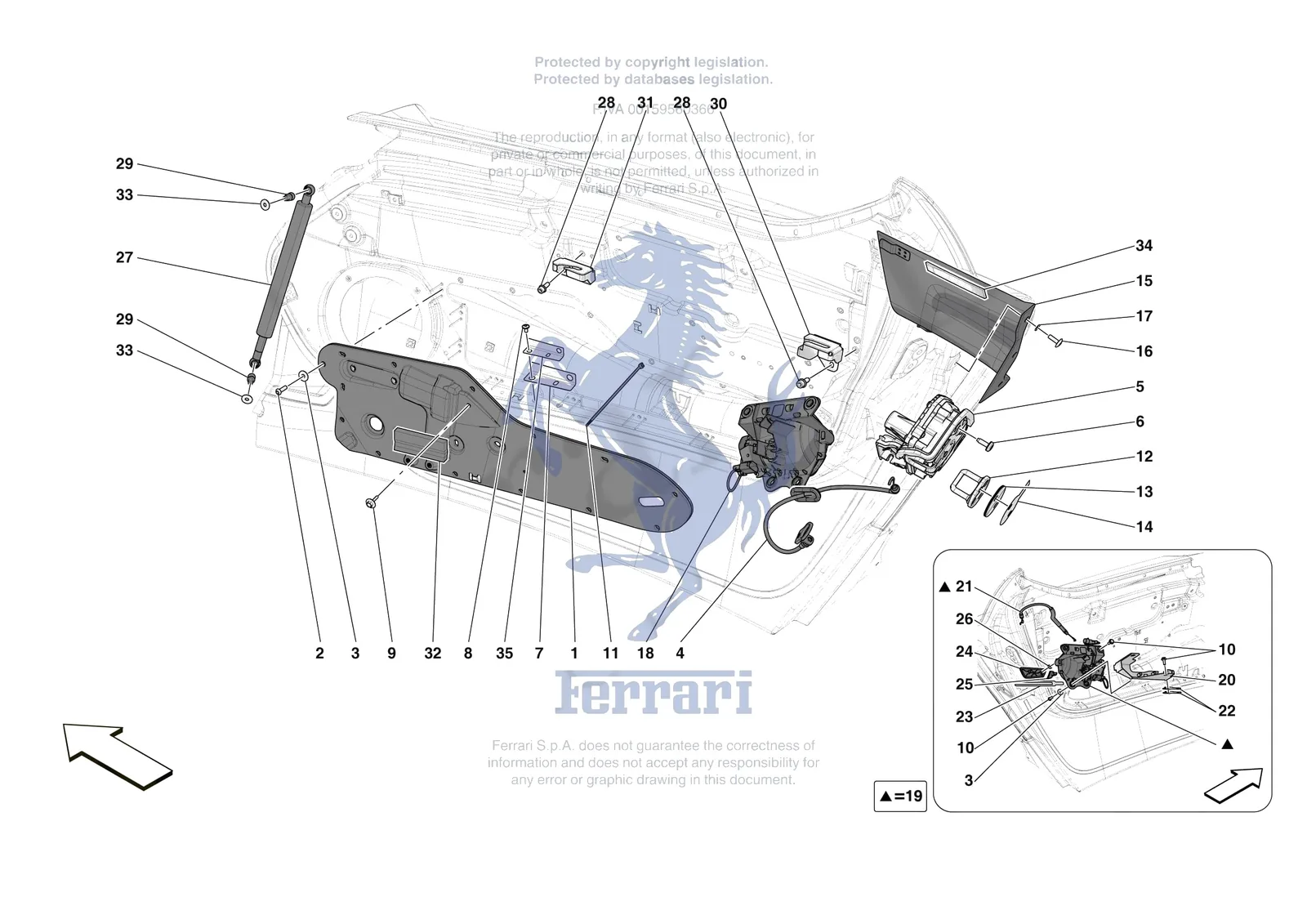

Ferrari Daytona SP3 [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
848279Ferrari Door Striker Plate Shim - 848279SupersededOrder 802693 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
156093Ferrari Washer - 156093SupersededOrder 12646778 instead
284147Ferrari Washer - 284147SupersededOrder 308666 instead
1904781Ferrari LH Door Substructure Closure - 904781$8,976.68Special order, ships in 7-14 days
1904808Ferrari RH Door Substructure Closure - 904808$8,976.68Special order, ships in 7-14 days
286276300Ferrari SCREW - 86276300$7.84Special order, ships in 7-14 days
312643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
455034988Ferrari Compl. Inner Door Handle Bow - 55034988Price on requestContact us for price and availability
4750816Ferrari Compl. Inner Door Handle Bow - 750816Price on requestContact us for price and availability
5804856Ferrari LH Door Lock - 804856$958.91Special order, ships in 7-14 days
5804870Ferrari RH Door Lock - 804870$958.91Special order, ships in 7-14 days
680874100Ferrari Screw Torx - 80874100$1.97Available, ships in 3-6 days
7848894Ferrari Door Substructure Cover For - 848894$34.44Special order, ships in 7-14 days
7849146Ferrari Door Substructure Cover For - 849146$34.44Special order, ships in 7-14 days
886001300Ferrari Screw - 86001300$4.14Special order, ships in 7-14 days
915699804Ferrari Screw 6X20 - 15699804$0.38Available, ships in 3-6 days
1011625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
11145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
12808736Ferrari Door Lock Striker Plate - 808736$29.48Special order, ships in 7-14 days
13802693Ferrari Door Striker Plate Shim - 802693$15.05Special order, ships in 7-14 days
14924578Ferrari Pellicola Per Scontrino Port - 924578$14.39Special order, ships in 7-14 days
15951055Ferrari Compl. LH Door Air Duct Cove - 951055$3,906.77Special order, ships in 7-14 days
15951060Ferrari Compl. RH Door Air Duct Cove - 951060$3,906.77Special order, ships in 7-14 days
1685692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
17953457Ferrari Teflon Washer - 953457$0.96Special order, ships in 7-14 days
18762778Ferrari Handle Module - 762778$467.80Special order, ships in 7-14 days
19904788Ferrari LH Handle - 904788$787.90Special order, ships in 7-14 days
20750490Ferrari LH Handle Fastener Bracket - 750490$238.82Special order, ships in 7-14 days
20762789Ferrari RH Handle Fastener Bracket - 762789$238.82Special order, ships in 7-14 days
21750431Ferrari LH DOOR BOWDEN CABLE - 750431Price on requestContact us for price and availability
22867625Ferrari External Door Handle Spacer - 867625$17.21Special order, ships in 7-14 days
23891762Ferrari EXTERNAL DOOR HANDLE SPACER - 891762Price on requestContact us for price and availability
24750492Ferrari LH Handle Pull - 750492$125.54Special order, ships in 7-14 days
24762782Ferrari RH Handle Pull - 762782$125.54Special order, ships in 7-14 days
25750493Ferrari LH Handle Button - 750493$29.52Special order, ships in 7-14 days
25762787Ferrari RH Handle Button - 762787$29.52Special order, ships in 7-14 days
2613046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
2613046012Ferrari Nut - 13046012SupersededOrder 13046011 instead
27954487Ferrari Compl. Gas Strut - 954487$262.62Special order, ships in 7-14 days
28248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
29833163Ferrari Door Stabilus Pin - 833163SupersededOrder 88539500 instead
2988539500Ferrari Pin - 88539500$7.86Special order, ships in 7-14 days
30914571Ferrari Rear LH Shelf Bracket - 914571$137.87Special order, ships in 7-14 days
30914573Ferrari Rear RH Shelf Bracket - 914573$137.87Special order, ships in 7-14 days
31914570Ferrari Front LH Shelf Bracket - 914570$169.87Special order, ships in 7-14 days
31914572Ferrari Front RH Shelf Bracket - 914572$169.87Special order, ships in 7-14 days
32946595Ferrari Nitto - 946595$4.41Special order, ships in 7-14 days
3312646778Ferrari Washer - 12646778$0.89In stock
33308666Ferrari Washer - 308666$3.70Special order, ships in 7-14 days
34817571Ferrari Nitto - 817571$12.04Special order, ships in 7-14 days
35763194Ferrari LH Substructure Cover Nitto - 763194$16.46Special order, ships in 7-14 days
35763203Ferrari RH Substructure Cover Nitto - 763203$16.46Special order, ships in 7-14 days
