Ferrari F355 B/GTS/Spider Mo. 2.7 — Frame - Rear Part Elements (diagram 104)

Exploded view of the frame - rear part elements on the Ferrari F355 B/GTS/Spider Mo. 2.7, with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

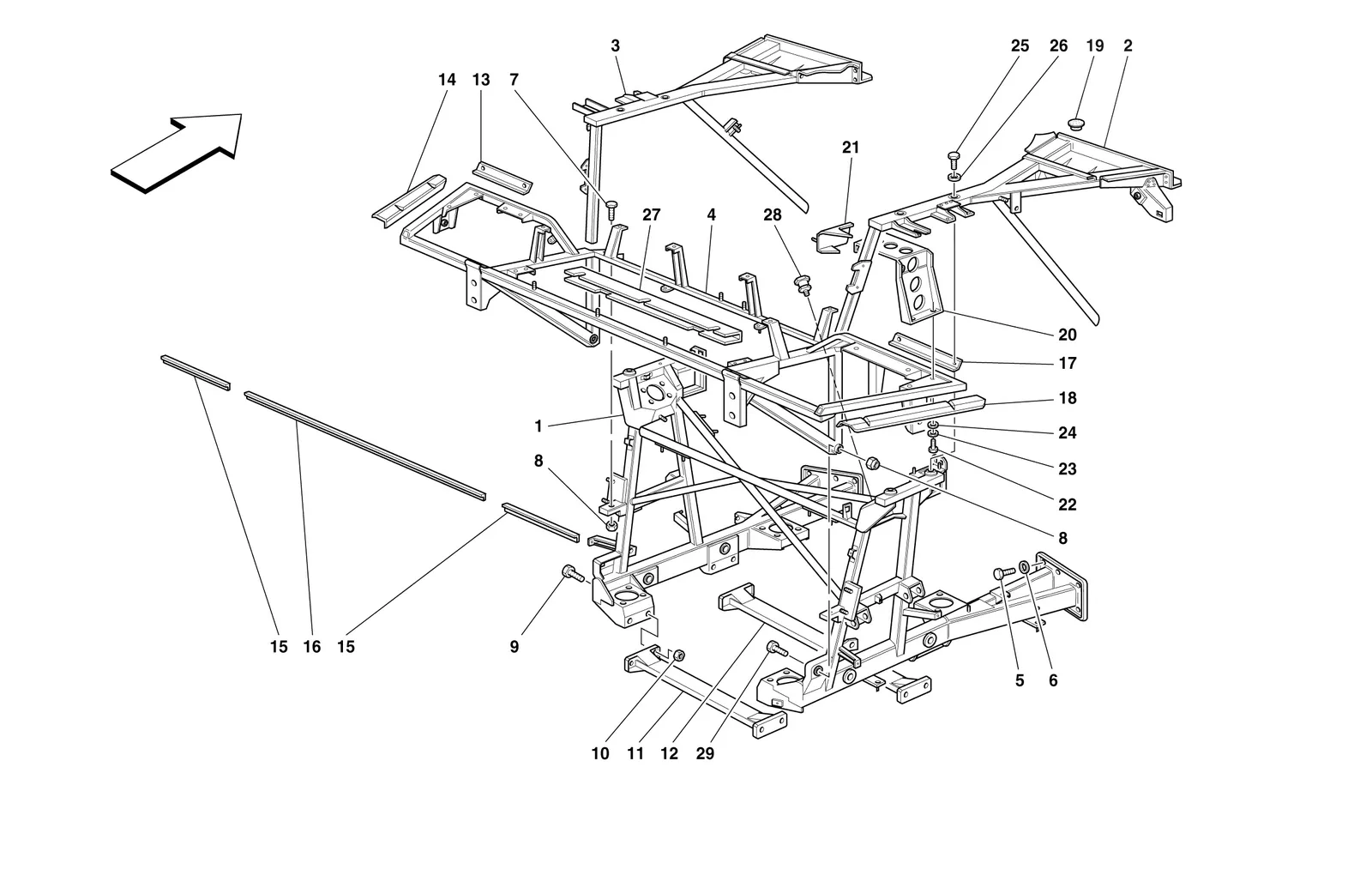

Ferrari F355 B/GTS/Spider Mo. 2.7 Frame - Rear Part Elements exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
164493300Ferrari Engine Frame - 64493300$6,085.05Contact us to order
164216300Ferrari Engine Frame LHD - 64216300Price on requestContact us to order
164429500Ferrari Engine Frame RHD - 64429500Price on requestContact us to order
164627600Ferrari Engine Frame - 64627600Price on requestContact us to order
264538600Ferrari RH Upper Fixed Frame - 64538600$2,398.79Special order, ships in 7-14 days
364048200Ferrari LH Upper Fixed Frame - 64048200$1,444.15Special order, ships in 7-14 days
364969100Ferrari LH Upper Fixed Frame - 64969100Price on requestContact us for price and availability
464048600Ferrari Bumper Support Trestle Assy - 64048600Price on requestContact us for price and availability
464455000Ferrari Bumper Support Trestle Assy - 64455000$6,296.58Special order, ships in 7-14 days
464512600Ferrari Bumper Support Trestle Assy - 64512600$3,517.78Special order, ships in 7-14 days
464627400Ferrari Bumper Support Trestle Assy - 64627400$3,182.09Special order, ships in 7-14 days
516142021Ferrari Screw - 16142021$18.80In stock
6127498Ferrari Spring Washer 12mm - 127498$0.27Available, ships in 3-6 days
6106854Ferrari Spring Washer 12mm - 106854SupersededOrder 127498 instead
711422021Ferrari Screw - 11422021$3.24Special order, ships in 7-14 days
715862134Ferrari Screw - 15862134Price on requestContact us for price and availability
8150238Ferrari Nyloc Nut - 150238$1.05In stock
914331224Ferrari Screw M12 x 1.25 x 35 - 14331224Price on requestContact us for price and availability
10142438Ferrari Nut M12 x 1.25 - 142438$1.65Available, ships in 3-6 days
1163948500Ferrari Rear Crossmember - 63948500Price on requestContact us for price and availability
1263948800Ferrari Front Removeable Crossmember under Engine - 63948800$367.14Special order, ships in 7-14 days
1362123700Ferrari Wheelhouse Fixing Plate - 62123700$4.41Available, ships in 3-6 days
1462129000Ferrari LH Bumper Fixing Plate - 62129000$56.60Available, ships in 3-6 days
1562054800Ferrari Rear Side Cover Support Front Plate - 62054800$4.79Available, ships in 3-6 days
1662055000Ferrari Rear Side Cover Support Central Plate - 62055000Price on requestContact us for price and availability
1862128900Ferrari RH Bumper Fixing Plate - 62128900$56.60Available, ships in 3-6 days
1914506787Ferrari Rubber Plug D20 - 14506787$10.25Available, ships in 3-6 days
20158332Ferrari Bracket - 158332$979.09Special order, ships in 7-14 days
2164295700Ferrari Bracket - 64295700SupersededOrder 64295600 instead
2164295600Ferrari Bracket - 64295600$293.71Special order, ships in 7-14 days
2214305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
2312601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
2310615474Ferrari Washer - 10615474Price on requestSpecial order, ships in 7-14 days
2410519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
2563369800Ferrari Screw M10 x 1.25 x 60 - 63369800$2.13Available, ships in 3-6 days
26127497Ferrari Spring Washer 10mm - 127497$0.69In stock
2764608000Ferrari Pipe Retaining Moulding - 64608000Price on requestContact us for price and availability
2764696600Ferrari Pipe Retaining Moulding - 64696600$413.37Special order, ships in 7-14 days
28151856Ferrari Negative Terminal - 151856$5.65Special order, ships in 7-14 days
2915977724Ferrari Screw - 15977724$3.24Special order, ships in 7-14 days
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
14496406Ferrari Spring Washer - 14496406SupersededOrder 10519424 instead
106853Ferrari Spring Washer 10mm - 106853SupersededOrder 12601474 instead
10516873Ferrari Washer - 10516873SupersededOrder 12601474 instead
10519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
125516Ferrari Washer - 125516SupersededOrder 10519424 instead
13550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
14496405Ferrari Washer - 14496405SupersededOrder 10519424 instead
14496421Ferrari Washer - 14496421SupersededOrder 10519424 instead
14496424Ferrari Washer - 14496424SupersededOrder 10519424 instead

All F355 B/GTS/Spider Mo. 2.7 diagrams
