Ferrari F430 Challenge — Windshield And Glass Washer (diagram 123)

Exploded view of the windshield and glass washer on the Ferrari F430 Challenge, with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

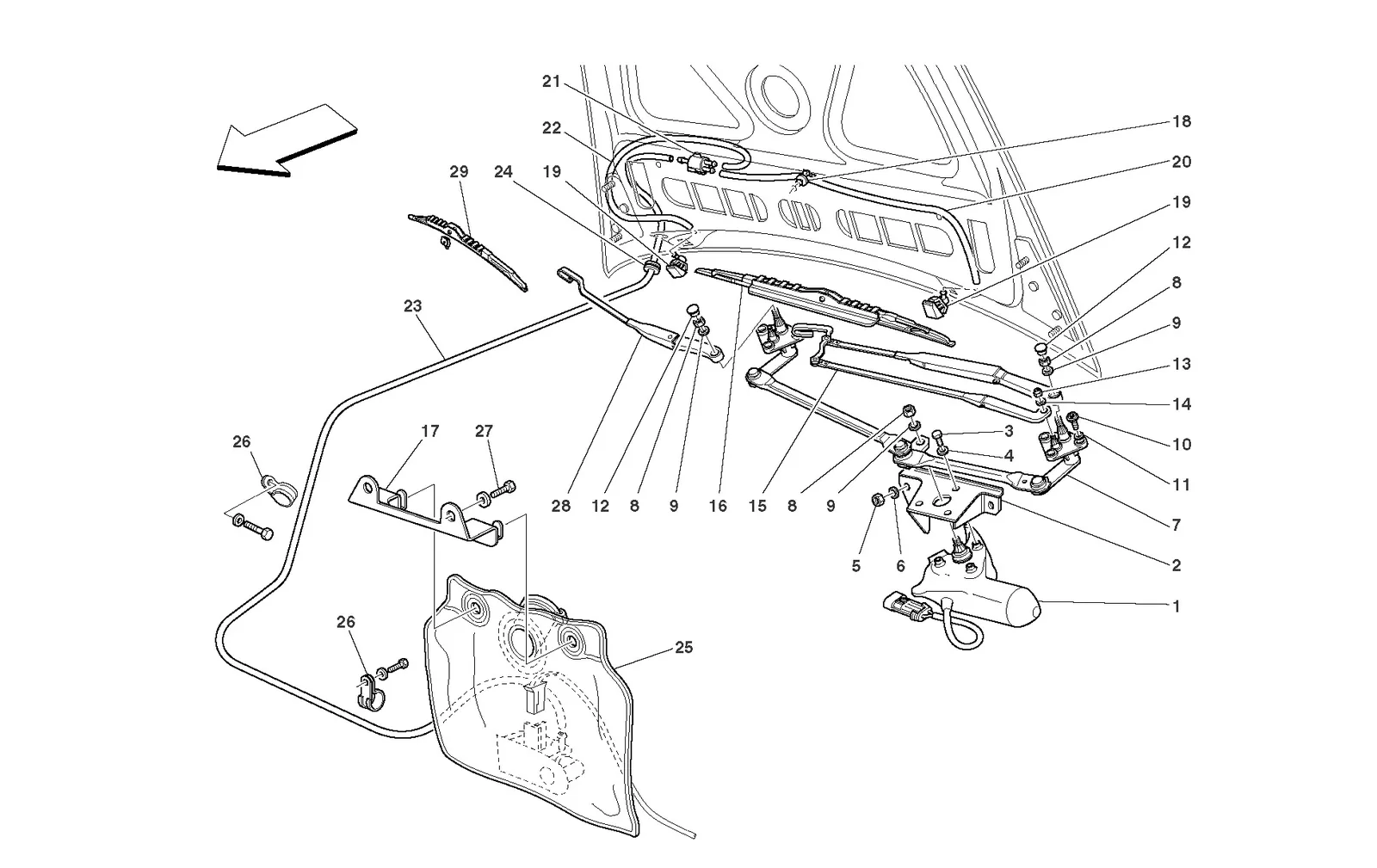

Ferrari F430 Challenge Windshield And Glass Washer exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
163780200Ferrari Windshield Wiper Motor LHD - 63780200Price on requestContact us for price and availability
2173416Ferrari Windshield Wiper Motor Bracket RHD - 173416$29.34Special order, ships in 7-14 days
310902224Ferrari Screw M6 x 16 - 10902224$0.12Available, ships in 3-6 days
4127494Ferrari Lock Washer - 127494$0.50In stock
5104030Ferrari/Maserati Nut - 104030$0.88In stock
614496524Ferrari Washer - 14496524$0.19Available, ships in 3-6 days
765409100Ferrari Wiper Linkage LHD - 65409100Price on requestContact us for price and availability
816100824Ferrari/Maserati Nut - 16100824$0.30In stock
816100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
912601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
1064830600Ferrari Screw M6 x 22 TBEI - 64830600$3.26Available, ships in 3-6 days
1112644478Ferrari Washer D. 6.45 - 15 x 1 - 12644478SupersededOrder 85882600 instead
1112644477Ferrari Washer - 12644477$0.40Available, ships in 3-6 days
1265190900Ferrari Wiper Cap - 65190900$7.80Available, ships in 3-6 days
1315896416Ferrari Nut - 15896416$0.40Available, ships in 3-6 days
1315896472Ferrari Nut - 15896472SupersededOrder 15896416 instead
1412601174Ferrari Wavy Washer 5mm - 12601174$0.12Available, ships in 3-6 days
1412601176Ferrari Washer - 12601176SupersededOrder 12601174 instead
1565409200Ferrari LH Wiper Arm LHD - 65409200Price on requestContact us for price and availability
16886095Ferrari Driver Wiper Blade - 886095$51.32In stock
1663776100Ferrari Drivers Side Wiper Blade - 63776100SupersededOrder 886095 instead
1765984700Ferrari Bag Holder - 65984700$75.86Special order, ships in 7-14 days
1865714300Ferrari Fixing Clip - 65714300$1.28Available, ships in 3-6 days
1965191000Ferrari Spray Nozzle - 65191000$5.44Available, ships in 3-6 days
2065362600Ferrari Washer Tubing - 65362600SupersededOrder 65362300 instead
2161648100Ferrari One Way Valve - 61648100$88.09Available, ships in 3-6 days
2265362500Ferrari Washer Tubing - 65362500$36.95Special order, ships in 7-14 days
2365362400Ferrari Washer Tubing - 65362400$39.14Available, ships in 3-6 days
2410396280Ferrari Ring - 10396280$6.54Available, ships in 3-6 days
2566151600Ferrari Washer Bag/Motor - 66151600$186.01Special order, ships in 7-14 days
26145855Ferrari Clamp 208mm - 145855$0.98Special order, ships in 7-14 days
2762940900Ferrari Allen Head Screw M6 x 15 TBEI - 62940900$2.59Available, ships in 3-6 days
2865409300Ferrari RH Wiper Arm LHD - 65409300$611.91Special order, ships in 7-14 days
2965409400Ferrari 360/430 Passenger Wiper Blade - 65409400$87.56In stock
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
16100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
80131500Ferrari Spray Nozzle - 80131500SupersededOrder 65191000 instead
106850Ferrari Spring Washer 6mm - 106850SupersededOrder 127494 instead
10516470Ferrari Washer 6 R 4 - 10516470SupersededOrder 127494 instead
10516471Ferrari Washer - 10516471SupersededOrder 127494 instead
10516473Ferrari Washer - 10516473SupersededOrder 127494 instead
10516477Ferrari Washer - 10516477SupersededOrder 127494 instead
10615670Ferrari Washer - 10615670SupersededOrder 12601374 instead
10615671Ferrari Washer - 10615671SupersededOrder 12601374 instead
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
10615679Ferrari Washer - 10615679SupersededOrder 12601374 instead
12601370Ferrari Washer - 12601370SupersededOrder 12601374 instead
12601379Ferrari Washer - 12601379SupersededOrder 12601374 instead
12644406Ferrari Washer - 12644406Price on requestContact us for price and availability
65362300Ferrari Washer Tubing - 65362300$80.75Special order, ships in 7-14 days
65898900Ferrari Wiper Motor RHD - 65898900Price on requestContact us for price and availability

All F430 Challenge diagrams
