Ferrari F8 Spider — [ENGINE] - B.18 - FUEL PUMPS (diagram 0023)

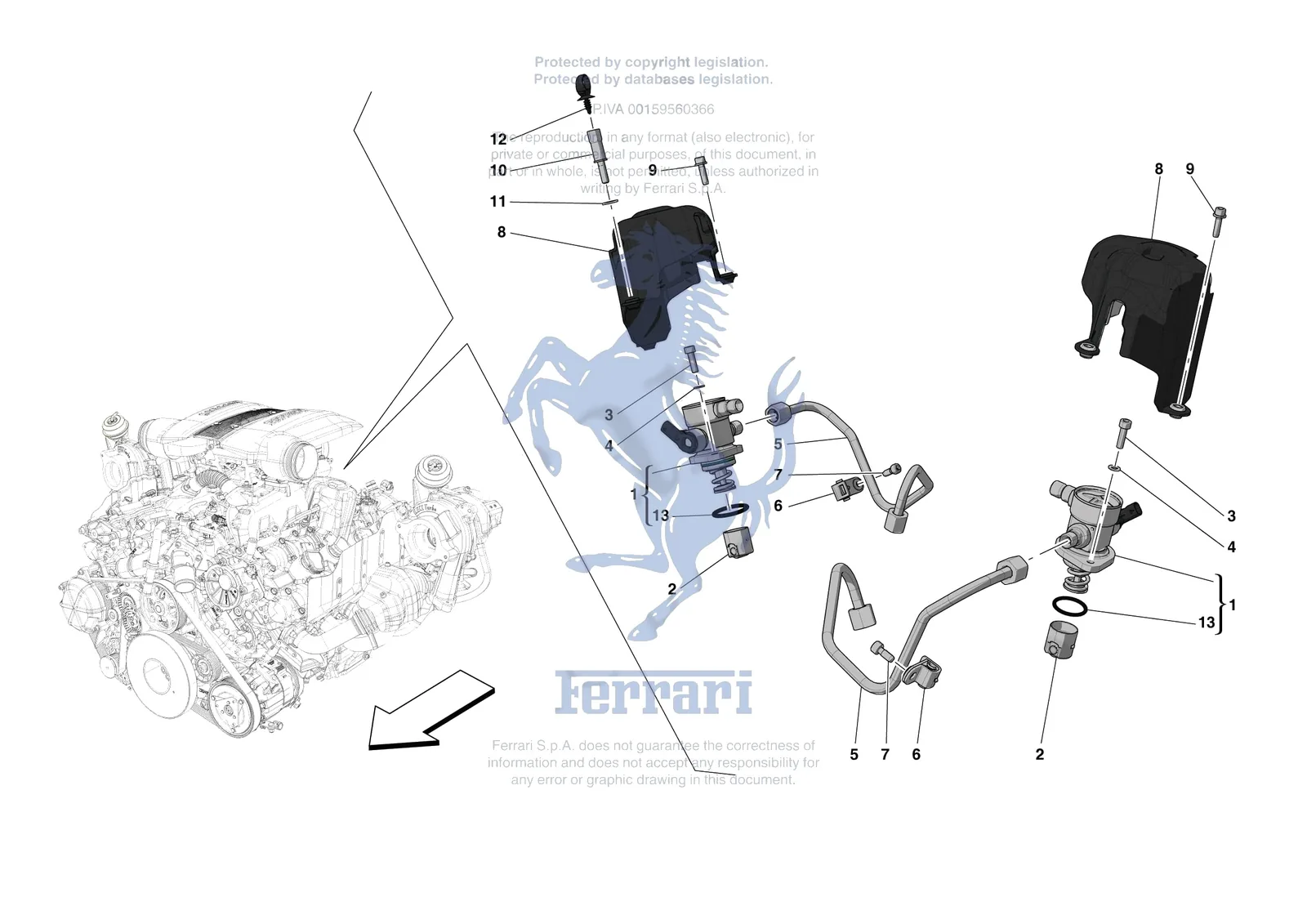

Exploded view of the [engine] - b.18 - fuel pumps on the Ferrari F8 Spider, with 21 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F8 Spider [ENGINE] - B.18 - FUEL PUMPS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f8-spider/0023.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 840252 | Ferrari RH Injection Cable Fastener - 840252 | Superseded | Order 786671 instead | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 768410 | Ferrari Fuel Pump - 768410 | $962.99 | Special order, ships in 7-14 days |
| 2 | 270601 | Ferrari Cup - 270601 | $100.93 | Special order, ships in 7-14 days |
| 3 | 14305334 | Ferrari Screw M6 x 20 - 14305334 | $0.38 | Available, ships in 3-6 days |
| 4 | 12639724 | Ferrari Washer - 12639724 | $0.08 | Available, ships in 3-6 days |
| 5 | 321485 | Ferrari Fuel Pipe - 321485 | $164.95 | Special order, ships in 7-14 days |
| 6 | 836236 | Ferrari Bracket - 836236 | $71.28 | Special order, ships in 7-14 days |
| 7 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 8 | 297021 | Ferrari GDI Pump Soundproofing Cover - 297021 | $177.25 | Special order, ships in 7-14 days |
| 8 | 793242 | Ferrari Gdi Pump Soundproofing Cover - 793242 | $150.17 | Special order, ships in 7-14 days |
| 9 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 10 | 198462 | Ferrari Stud Bolt - 198462 | $19.19 | Special order, ships in 7-14 days |
| 11 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 12 | 786671 | Ferrari Clip - 786671 | $2.59 | Special order, ships in 7-14 days |
| 13 | 769201 | Ferrari O-Ring - 769201 | $9.16 | Special order, ships in 7-14 days |
